Wirtinger derivatives in Maple 2021

by: ecterrab 14660 Maple
differentiation complex-analysis physics
March 14 2021
6  0

Wirtinger Derivatives in Maple 2021

Generally speaking, there are two contexts for differentiating complex functions with respect to complex variables. In the first context, called the classical complex analysis, the derivatives of the complex components ( abs , argument , conjugate , Im , Re , signum ) with respect to complex variables do not exist (do not satisfy the Cauchy-Riemann conditions), with the exception of when they are holomorphic functions. All computer algebra systems implement the complex components in this context, and computationally represent all of abs(z), argument(z), conjugate(z), Im(z), Re(z), signum(z) as functions of z . Then, viewed as functions of z, none of them are analytic, so differentiability becomes an issue.



In the second context, first introduced by Poincare (also called Wirtinger calculus), in brief z and its conjugate conjugate(z) are taken as independent variables, and all the six derivatives of the complex components become computable, also with respect to conjugate(z). Technically speaking, Wirtinger calculus permits extending complex differentiation to non-holomorphic functions provided that they are ℝ-differentiable (i.e. differentiable functions of real and imaginary parts, taking f(z) = f(x, y) as a mapping "`ℝ`^(2)->`ℝ`^()").



In simpler terms, this subject is relevant because, in mathematical-physics formulations using paper and pencil, we frequently use Wirtinger calculus automatically. We take z and its conjugate conjugate(z) as independent variables, with that d*conjugate(z)*(1/(d*z)) = 0, d*z*(1/(d*conjugate(z))) = 0, and we compute with the operators "(∂)/(∂ z)", "(∂)/(∂ (z))" as partial differential operators that behave as ordinary derivatives. With that, all of abs(z), argument(z), conjugate(z), Im(z), Re(z), signum(z), become differentiable, since they are all expressible as functions of z and conjugate(z).





Wirtinger derivatives were implemented in Maple 18 , years ago, in the context of the Physics package. There is a setting, Physics:-Setup(wirtingerderivatives), that when set to true - an that is the default value when Physics is loaded - redefines the differentiation rules turning on Wirtinger calculus. The implementation, however, was incomplete, and the subject escaped through the cracks till recently mentioned in this Mapleprimes post.



Long intro. This post is to present the completion of Wirtinger calculus in Maple, distributed for everybody using Maple 2021 within the Maplesoft Physics Updates v.929 or newer. Load Physics and set the imaginary unit to be represented by I



with(Physics); interface(imaginaryunit = I)



The complex components are represented by the computer algebra functions

(FunctionAdvisor(complex_components))(z)

[Im(z), Re(z), abs(z), argument(z), conjugate(z), signum(z)]

 (1)

They can all be expressed in terms of z and conjugate(z)

map(proc (u) options operator, arrow; u = convert(u, conjugate) end proc, [Im(z), Re(z), abs(z), argument(z), conjugate(z), signum(z)])

[Im(z) = ((1/2)*I)*(-z+conjugate(z)), Re(z) = (1/2)*z+(1/2)*conjugate(z), abs(z) = (z*conjugate(z))^(1/2), argument(z) = -I*ln(z/(z*conjugate(z))^(1/2)), conjugate(z) = conjugate(z), signum(z) = z/(z*conjugate(z))^(1/2)]

 (2)

The main differentiation rules in the context of Wirtinger derivatives, that is, taking z and conjugate(z) as independent variables, are

map(%diff = diff, [Im(z), Re(z), abs(z), argument(z), conjugate(z), signum(z)], z)

[%diff(Im(z), z) = -(1/2)*I, %diff(Re(z), z) = 1/2, %diff(abs(z), z) = (1/2)*conjugate(z)/abs(z), %diff(argument(z), z) = -((1/2)*I)/z, %diff(conjugate(z), z) = 0, %diff(signum(z), z) = (1/2)/abs(z)]

 (3)

Since in this context conjugate(z) is taken as - say - a mathematically-atomic variable (the computational representation is still the function conjugate(z)) we can differentiate all the complex components also with respect to  conjugate(z)

map(%diff = diff, [Im(z), Re(z), abs(z), argument(z), conjugate(z), signum(z)], conjugate(z))

[%diff(Im(z), conjugate(z)) = (1/2)*I, %diff(Re(z), conjugate(z)) = 1/2, %diff(abs(z), conjugate(z)) = (1/2)*z/abs(z), %diff(argument(z), conjugate(z)) = ((1/2)*I)*z/abs(z)^2, %diff(conjugate(z), conjugate(z)) = 1, %diff(signum(z), conjugate(z)) = -(1/2)*z^2/abs(z)^3]

 (4)

For example, consider the following algebraic expression, starting with conjugate

eq__1 := conjugate(z)+z*conjugate(z)^2

conjugate(z)+z*conjugate(z)^2

 (5)

Differentiating this expression with respect to z and conjugate(z) taking them as independent variables, is new, and in this example trivial

(%diff = diff)(eq__1, z)

%diff(conjugate(z)+z*conjugate(z)^2, z) = conjugate(z)^2

 (6)

(%diff = diff)(eq__1, conjugate(z))

%diff(conjugate(z)+z*conjugate(z)^2, conjugate(z)) = 1+2*z*conjugate(z)

 (7)

Switch to something less trivial, replace conjugate by the real part ReNULL

eq__2 := eval(eq__1, conjugate = Re)

Re(z)+z*Re(z)^2

 (8)

To verify results further below, also express eq__2 in terms of conjugate

eq__22 := simplify(convert(eq__2, conjugate), size)

(1/4)*(z^2+z*conjugate(z)+2)*(z+conjugate(z))

 (9)

New: differentiate eq__2 with respect to z and  conjugate(z)

(%diff = diff)(eq__2, z)

%diff(Re(z)+z*Re(z)^2, z) = 1/2+Re(z)^2+z*Re(z)

 (10)

(%diff = diff)(eq__2, conjugate(z))

%diff(Re(z)+z*Re(z)^2, conjugate(z)) = 1/2+z*Re(z)

 (11)

Note these results (10) and (11) are expressed in terms of Re(z), not conjugate(z). Let's compare with the derivative of eq__22 where everything is expressed in terms of z and conjugate(z). Take for instance the derivative with respect to z

(%diff = diff)(eq__22, z)

%diff((1/4)*(z^2+z*conjugate(z)+2)*(z+conjugate(z)), z) = (1/4)*(2*z+conjugate(z))*(z+conjugate(z))+(1/4)*z^2+(1/4)*z*conjugate(z)+1/2

 (12)

To verify this result is mathematically equal to (10) expressed in terms of Re(z) take the difference of the right-hand sides

rhs((%diff(Re(z)+z*Re(z)^2, z) = 1/2+Re(z)^2+z*Re(z))-(%diff((1/4)*(z^2+z*conjugate(z)+2)*(z+conjugate(z)), z) = (1/4)*(2*z+conjugate(z))*(z+conjugate(z))+(1/4)*z^2+(1/4)*z*conjugate(z)+1/2)) = 0

Re(z)^2+z*Re(z)-(1/4)*(2*z+conjugate(z))*(z+conjugate(z))-(1/4)*z^2-(1/4)*z*conjugate(z) = 0

 (13)

One quick way to verify the value of expressions like this one is to replace z = a+I*b and simplify "assuming" a andNULLb are realNULL

`assuming`([eval(Re(z)^2+z*Re(z)-(1/4)*(2*z+conjugate(z))*(z+conjugate(z))-(1/4)*z^2-(1/4)*z*conjugate(z) = 0, z = a+I*b)], [a::real, b::real])

a^2+(a+I*b)*a-(1/2)*(3*a+I*b)*a-(1/4)*(a+I*b)^2-(1/4)*(a+I*b)*(a-I*b) = 0

 (14)

normal(a^2+(a+I*b)*a-(1/2)*(3*a+I*b)*a-(1/4)*(a+I*b)^2-(1/4)*(a+I*b)*(a-I*b) = 0)

0 = 0

 (15)

The equivalent differentiation, this time replacing in eq__1 conjugate by abs; construct also the equivalent expression in terms of z and  conjugate(z) for verifying results

eq__3 := eval(eq__1, conjugate = abs)

abs(z)+abs(z)^2*z

 (16)

eq__33 := simplify(convert(eq__3, conjugate), size)

(z*conjugate(z))^(1/2)+conjugate(z)*z^2

 (17)

Since these two expressions are mathematically equal, their derivatives should be too, and the derivatives of eq__33 can be verified by eye since z and  conjugate(z) are taken as independent variables

(%diff = diff)(eq__3, z)

%diff(abs(z)+abs(z)^2*z, z) = (1/2)*conjugate(z)/abs(z)+z*conjugate(z)+abs(z)^2

 (18)

(%diff = diff)(eq__33, z)

%diff((z*conjugate(z))^(1/2)+conjugate(z)*z^2, z) = (1/2)*conjugate(z)/(z*conjugate(z))^(1/2)+2*z*conjugate(z)

 (19)

Eq (18) is expressed in terms of abs(z) = abs(z) while (19) is in terms of conjugate(z) = conjugate(z). Comparing as done in (14)

rhs((%diff(abs(z)+abs(z)^2*z, z) = (1/2)*conjugate(z)/abs(z)+z*conjugate(z)+abs(z)^2)-(%diff((z*conjugate(z))^(1/2)+conjugate(z)*z^2, z) = (1/2)*conjugate(z)/(z*conjugate(z))^(1/2)+2*z*conjugate(z))) = 0

(1/2)*conjugate(z)/abs(z)-z*conjugate(z)+abs(z)^2-(1/2)*conjugate(z)/(z*conjugate(z))^(1/2) = 0

 (20)

`assuming`([eval((1/2)*conjugate(z)/abs(z)-z*conjugate(z)+abs(z)^2-(1/2)*conjugate(z)/(z*conjugate(z))^(1/2) = 0, z = a+I*b)], [a::real, b::real])

(1/2)*(a-I*b)/(a^2+b^2)^(1/2)-(a+I*b)*(a-I*b)+a^2+b^2-(1/2)*(a-I*b)/((a+I*b)*(a-I*b))^(1/2) = 0

 (21)

simplify((1/2)*(a-I*b)/(a^2+b^2)^(1/2)-(a+I*b)*(a-I*b)+a^2+b^2-(1/2)*(a-I*b)/((a+I*b)*(a-I*b))^(1/2) = 0)

0 = 0

 (22)

To mention but one not so famliar case, consider the derivative of the sign of a complex number, represented in Maple by signum(z). So our testing expression is

eq__4 := eval(eq__1, conjugate = signum)

signum(z)+z*signum(z)^2

 (23)

This expression can also be rewritten in terms of z and  conjugate(z)

eq__44 := simplify(convert(eq__4, conjugate), size)

z/(z*conjugate(z))^(1/2)+z^2/conjugate(z)

 (24)

This time differentiate with respect to conjugate(z),

(%diff = diff)(eq__4, conjugate(z))

%diff(signum(z)+z*signum(z)^2, conjugate(z)) = -(1/2)*z^2/abs(z)^3-z^3*signum(z)/abs(z)^3

 (25)

Here again, the differentiation of eq__44, that is expressed entirely in terms of z and  conjugate(z), can be computed by eye

(%diff = diff)(eq__44, conjugate(z))

%diff(z/(z*conjugate(z))^(1/2)+z^2/conjugate(z), conjugate(z)) = -(1/2)*z^2/(z*conjugate(z))^(3/2)-z^2/conjugate(z)^2

 (26)

Eq (25) is expressed in terms of abs(z) = abs(z) while (26) is in terms of conjugate(z) = conjugate(z). Comparing as done in (14),

rhs((%diff(signum(z)+z*signum(z)^2, conjugate(z)) = -(1/2)*z^2/abs(z)^3-z^3*signum(z)/abs(z)^3)-(%diff(z/(z*conjugate(z))^(1/2)+z^2/conjugate(z), conjugate(z)) = -(1/2)*z^2/(z*conjugate(z))^(3/2)-z^2/conjugate(z)^2)) = 0

-(1/2)*z^2/abs(z)^3-z^3*signum(z)/abs(z)^3+(1/2)*z^2/(z*conjugate(z))^(3/2)+z^2/conjugate(z)^2 = 0

 (27)

`assuming`([eval(-(1/2)*z^2/abs(z)^3-z^3*signum(z)/abs(z)^3+(1/2)*z^2/(z*conjugate(z))^(3/2)+z^2/conjugate(z)^2 = 0, z = a+I*b)], [a::real, b::real])

-(1/2)*(a+I*b)^2/(a^2+b^2)^(3/2)-(a+I*b)^4/(a^2+b^2)^2+(1/2)*(a+I*b)^2/((a+I*b)*(a-I*b))^(3/2)+(a+I*b)^2/(a-I*b)^2 = 0

 (28)

simplify(-(1/2)*(a+I*b)^2/(a^2+b^2)^(3/2)-(a+I*b)^4/(a^2+b^2)^2+(1/2)*(a+I*b)^2/((a+I*b)*(a-I*b))^(3/2)+(a+I*b)^2/(a-I*b)^2 = 0)

0 = 0

 (29)

NULL




Download Wirtinger_Derivatives.mw

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Matt's polynomial project

by: Matt C Anderson 190
March 07 2021
1  2

Hi Mapleprimes,

Per your request.

A_prime_producing_quadratic_expression_2019_(2).pdf

bye

Maple Calculator – now with steps!

by: Karishma 885 Maple Calculator
integration differentiation step-by-step
March 01 2021
8  0

I’m very pleased to announce that the Maple Calculator app now offers step-by-step solutions. Maple Calculator is a free mobile app that makes it easy to enter, solve, and visualize mathematical problems from algebra, precalculus, calculus, linear algebra, and differential equations, right on your phone.  Solution steps have been, by far, the most requested feature from Maple Calculator users, so we are pretty excited about being able to offer this functionality to our customers. With steps, students can use the app not just to check if their own work is correct, but to find the source of the problem if they made a mistake.  They can also use the steps to learn how to approach problems they are unfamiliar with.

Steps are available in Maple Calculator for a wide variety of problems, including solving equations and systems of equations, finding limits, derivatives, and integrals, and performing matrix operations such as finding inverses and eigenvalues.

(*Spoiler alert* You may also want to keep a look-out for more step-by-step solution abilities in the next Maple release.)

If you are unfamiliar with the Maple Calculator app, you can find more information and app store links on the Maple Calculator product page.  One feature in particular to note for Maple and Maple Learn users is that you can use the app to take a picture of your math and load those math expressions into Maple or Maple Learn.  It makes for a fast, accurate method for entering large expressions, so even if you aren’t interested in doing math on your phone, you still might find the app useful.

Pythagorean Triples Ternary Tree

by: Fereydoon_Shekofte 223 Maple 18
trigonometry pythagoras
February 26 2021
1  0

I make a maple worksheet for generating Pythagorean Triples Ternary Tree :

Around 10,000 records in the matrix currently !

You can set your desire size or export the Matrix as text ...

But yet ! I wish to understand from you better techniques If you have some suggestion ?

the mapleprimes Don't load my worksheet for preview so i put a screenshot !

Pythagoras_ternary.mw

Pythagoras_ternary_data.mw

Pythagoras_ternary_maple.mw







New book Fourier Transforms for Chemistry

by: J F Ogilvie 258 Maple 2020
education fourier-transform chemistry
February 25 2021
8  1

            We announce the release of a new book, of title Fourier Transforms for Chemistry, which is in the form of a Maple worksheet.  This book is freely available through Maple Application Centre, either as a Maple worksheet with no output from commands or as a .pdf file with all output and plots.

            This interactive electronic book in the form of a Maple worksheet comprises six chapters containing Maple commands, plus an overview 0 as an introduction.  The chapters have content as follows.

  -   1    continuous Fourier transformation

  -   2    electron diffraction of a gaseous sample

  -   3    xray diffraction of a crystal and a powder

  -   4    microwave spectrum of a gaseous sample

  -   5    infrared and Raman spectra of a liquid sample

  -   6    nuclear magnetic resonance of various samples

            This book will be useful in courses of physical chemistry or devoted to the determination of molecular structure by physical methods.  Some content, duly acknowledged, has been derived and adapted from other authors, with permission.

pillow curve

by: Matt C Anderson 190 Maple 13
plotting
February 23 2021
0  6

Hi all,

Look at my pretty plot.  It is defined by

x=sin(m*t);
y=sin(n*t);

where n and m are one digit positive integers.

You can modify my worksheet with different values of n and m.

pillow_curve.mw

pillow_curve.pdf

The name of the curve may be something like Curve of Lesotho.  I saw this first in one of my father's books.

Regards,
Matt



One more way of inverse kinematics

by: one man 1370
method manipulator inverse
February 01 2021
5  1

As a continuation of the posts:
https://www.mapleprimes.com/posts/208958-Determination-Of-The-Angles-Of-The-Manipulator
https://www.mapleprimes.com/posts/209255-The-Use-Of-Manipulators-As-Multiaxis
https://www.mapleprimes.com/posts/210003-Manipulator-With-Variable-Length-Of
But this time without Draghilev's method.
Motion along straight lines can replace motion along any spatial path (with any practical precision), which means that solving the inverse problem of the manipulator's kinematics can be reduced to solving the movement along a sequential set of segments. Thus, another general method for solving the manipulator inverse problem is proposed.
An example of a three-link manipulator with 5 degrees of freedom. Its last link, like the first link, geometrically corresponds to the radius of the sphere. We calculate the coordinates of the ends of its links when passing a straight line segment. We do this in a loop for interior points of the segment using the procedure for finding real roots of polynomial systems of equations RootFinding [Isolate]. First, we “remove” two “extra” degrees of freedom by adding two equations to the system. There can be an infinite set of options for additional equations - if only they correspond to the technical capabilities of the device. In this case, two maximally easy conditions were taken: one equation corresponds to the perpendicularity of the last (third) link directly to the segment of the trajectory itself, and the second equation corresponds to the perpendicularity to the vector with coordinates <1,1,1>. As a result, we got four ways to move the manipulator for the same segment. All of these ways are selected as one of the RootFinding [Isolate] solutions (in text  jj=1,2,3,4).
In this text jj=4
without_Draghilev_method.mw

As you can see, everything is very simple, there is practically no programming and is performed exclusively by Maple procedures.



Introducing Maple Learn (officially)

by: Karishma 885 Maple Learn
January 18 2021
7  5

Maple Learn is out of beta! I am pleased to announce that Maple Learn, our new online environment for teaching and learning math and solving math problems, is out of beta and is now an officially released product. Over 5000 teachers and students used Maple Learn during its public beta period, which was very helpful. Thank you to everyone who took the time to try it out and provide feedback.

We are very excited about Maple Learn, and what it can mean for math education. Educators told us that, while Maple is a great tool for doing, teaching, and learning all sorts of math, some of their students found its very power and breadth overwhelming, especially in the early years of their studies. As a result, we created Maple Learn to be a version of Maple that is specifically focused on the needs of educators and students who are teaching and learning math in high school, two year and community college, and the first two years of university.

I talked a bit about what this means in a previous post, but probably the best way to get an overview of what this means is to watch our new two minute video:  Introducing Maple Learn.





Visit Maple Learn for more information and to try it out for yourself.  A basic Maple Learn account is free, and always will be.   If you are an instructor, please note that you may be eligible for a free Maple Learn Premium account. You can apply from the web site.

There’s lots more we want to do with Maple Learn in the future, of course. Even though the beta period is over, please feel free to continue sending us your feedback and suggestions. We’ve love to hear from you!

Damped Forced Movement with Maple

by: Lenin Araujo Castillo 1790 Maple 2020
engineering embedded-components differential-equations
January 05 2021
2  0

With this application, the differential equation of forced systems is studied directly. It comes with embedded components and also with native Maple code. Soon I will develop this same application with MapleSim. Only for engineering students.

Damped_Forced_Movement.mw

Lenin AC

Ambassador of Maple

The Physics Examples and LaTeX

by: ecterrab 14660 Maple
January 04 2021
11  0

One of the most interesting help page about the use of the Physics package is Physics,Examples. This page received some additions recently. It is also an excellent example of the File -> Export -> LaTeX capabilities under development.

Below you see the sections and subsections of this page. At the bottom, you have links to the updated PhysicsExample.mw worksheet, together with PhysicsExamples.PDF.

The PDF file has 74 pages and is obtained by going File -> Export -> LaTeX (FEL) on this worksheet to get a .tex version of it using an experimental version of Maple under development. The .tex file that results from FEL (used to get the PDF using TexShop on a Mac) has no manual editing. This illustrates new automatic line-breaking, equation labels, colours, plots, and the new LaTeX translation of sophisticated mathematical physics notation used in the Physics package (command Latex in the Maplesoft Physics Updates, to be renamed as latex in the upcoming Maple release).

In brief, this LaTeX project aims at writing entire course lessons or scientific papers directly in the Maple worksheet that combines what-you-see-is-what-you-get editing capabilities with the Maple computational engine to produce mathematical results. And from there get a LaTeX version of the work in two clicks, optionally hiding all the input (View -> Show/Hide -> Input).

PhysicsExamples.mw   PhysicsExamples.pdf

PS: MANY THANKS to all of you who provided so-valuable feedback on the new Latex here in Mapleprimes.

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Serious bugs in solve command

by: Kitonum 21615 Maple 2018
solve
December 10 2020
3  2

In the two examples below (in the second example, the range for the roots is simply expanded), we see bugs in both examples (Maple 2018.2). I wonder if these errors are fixed in Maple 2020?


>

restart;
>

solve({log[1/3](2*sin(x)^2-3*cos(2*x)+6)=-2,x>=-7*Pi/2,x<=-2*Pi}, explicit, allsolutions); # Example 1 - strange error message
solve({log[1/3](2*sin(x)^2-3*cos(2*x)+6)=-2,x>=-4*Pi,x<=-2*Pi}, explicit, allsolutions);  # Example 2 - two roots missing

Error, (in assume) contradictory assumptions



{x = -(11/3)*Pi}, {x = -(10/3)*Pi}

 (1)
>

plot(log[1/3](2*sin(x)^2-3*cos(2*x)+6)+2, x=-7*Pi/2..-2*Pi);
plot(log[1/3](2*sin(x)^2-3*cos(2*x)+6)+2, x=-4*Pi..-2*Pi);




>

Student:-Calculus1:-Roots(log[1/3](2*sin(x)^2-3*cos(2*x)+6)=-2, x=-7*Pi/2..-2*Pi);  # OK
Student:-Calculus1:-Roots(log[1/3](2*sin(x)^2-3*cos(2*x)+6)=-2, x=-4*Pi..-2*Pi);  # OK

[-(10/3)*Pi, -(8/3)*Pi, -(7/3)*Pi]



[-(11/3)*Pi, -(10/3)*Pi, -(8/3)*Pi, -(7/3)*Pi]

 (2)
>




I am glad that  Student:-Calculus1:-Roots  command successfully handles both examples.



Download bugs-in-solve.mw

Something about one degree of freedom for testing...

by: one man 1370 Maple 17
degrees draghilev
November 13 2020
4  3


One forum had a topic related to such a platform. ( Edited: the video is no longer available.)

The manufacturer calls the three-degrees platform, that is, having three degrees of freedom. Three cranks rotate, and the platform is connected to them by connecting rods through ball joints. The movable beam (rocker arm) has torsion springs.  I counted 4 degrees of freedom, because when all three cranks are locked, the platform remains mobile, which is camouflaged by the springs of the rocker arm. Actually, the topic on the forum arose due to problems with the work of this platform. Neither the designers nor those who operate the platform take into account this additional fourth, so-called parasitic degree of freedom. Obviously, if we will to move the rocker with the locked  cranks , the platform will move.
Based on this parasitic movement and a similar platform design, a very simple device is proposed that has one degree of freedom and is, in fact, a spatial linkage mechanism. We remove 3 cranks, keep the connecting rods, convert the rocker arm into a crank and get such movements that will not be worse (will not yield) to the movements of the platform with 6 degrees of freedom. And by changing the length of the crank, the plane of its rotation, etc., we can create simple structures with the required design trajectories of movement and one degree of freedom.
Two examples (two pictures for each example). The crank rotates in the vertical plane (side view and top view)
PLAT_1.mw


and the crank rotates in the horizontal plane (side view and top view).

The program consists of three parts. 1 choice of starting position, 2 calculation of the trajectory, 3 design of the picture.  Similar to the programm  in this topic.





A little about controlled platforms (parallel...

by: one man 1370 Maple 17
animation inverse kinematics
October 28 2020
3  2

Controlled platform with 6 degrees of freedom. It has three rotary-inclined racks of variable length:

and an example of movement parallel to the base:

Perhaps the Stewart platform may not reproduce such trajectories, but that is not the point. There is a way to select a design for those specific functions that our platform will perform. That is, first we consider the required trajectories of the platform movement, and only then we select a driving device that can reproduce them. For example, we can fix the extreme positions of the actuators during the movement of the platform and compare them with the capabilities of existing designs, or simulate your own devices.
In this case, the program consists of three parts. (The text of the program directly for the first figure : PLATFORM_6.mw) In the first part, we select the starting point for the movement of a rigid body with six degrees of freedom. Here three equations f6, f7, f8 are responsible for the six degrees of freedom. The equations f1, f2, f3, f4, f5 define a trajectory of motion of a rigid body. The coordinates of the starting point are transmitted via disk E for the second part of the program. In the second part of the program, the trajectory of a rigid body is calculated using the Draghilev method. Then the trajectory data is transferred via the disk E for the third part of the program.
In the third part of the program, the visualization is executed and the platform motion drive device is modeled.
It is like a sketch of a possible way to create controlled platforms with six degrees of freedom. Any device that can provide the desired trajectory can be inserted into the third part. At the same time, it is obvious that the geometric parameters of the movement of this device with the control of possible emergency positions and the solution of the inverse kinematics problem can be obtained automatically if we add the appropriate code to the program text.
Equations can be of any kind and can be combined with each other, and they must be continuously differentiable. But first, the equations must be reduced to uniform variables in order to apply the Draghilev method.

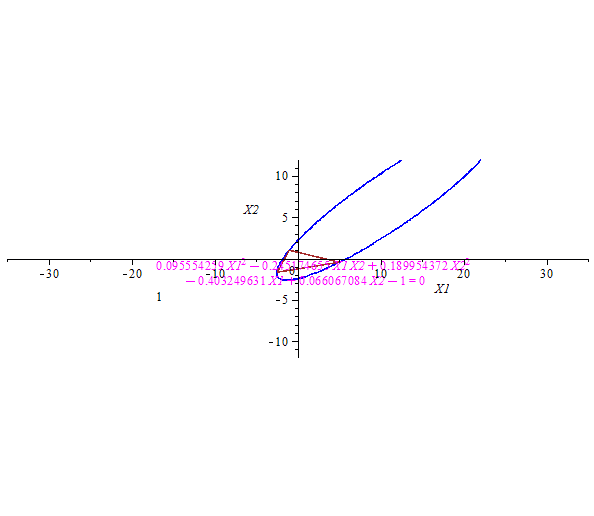

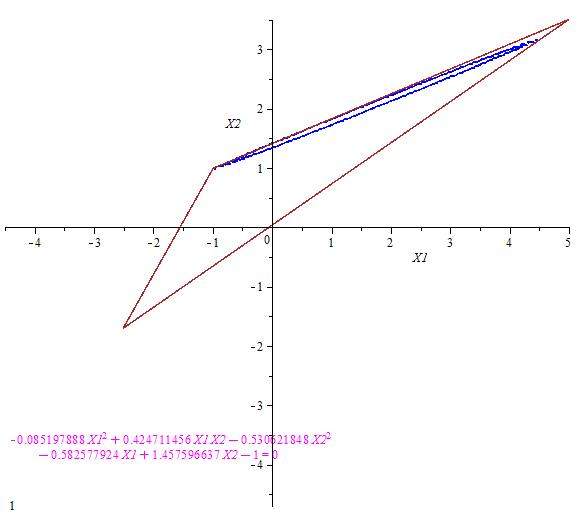

(These examples use implicit equations for the coordinates of the vertices of the triangle.)

What to take care of when entering a tetrad

by: Freddy Baudine 70 Maple 2020
physics general-relativity tetrads
October 27 2020
6  1

In the study of the Gödel spacetime model, a tetrad was suggested in the literature [1]. Alas, upon entering the tetrad in question, Maple's Tetrad's package complained that that matrix was not a tetrad! What went wrong? After an exchange with Edgardo S. Cheb-Terrab, Edgardo provided us with awfully useful comments regarding the use of the package and suggested that the problem together with its solution be presented in a post, as others may find it of some use for their work as well.



The Gödel spacetime solution to Einsten's equations is as follows.



>

Physics:-Version()

`The "Physics Updates" version in the MapleCloud is 858 and is the same as the version installed in this computer, created 2020, October 27, 10:19 hours Pacific Time.`

 (1)
>

with(Physics); with(Tetrads)

_______________________________________________________



`Setting `*lowercaselatin_ah*` letters to represent `*tetrad*` indices`



((`Defined as tetrad tensors `*`see <a href='http://www.maplesoft.com/support/help/search.aspx?term=Physics,tetrads`*`,' target='_new'>?Physics,tetrads`*`,</a> `*`&efr;`[a, mu]*`, `)*eta[a, b]*`, `*gamma[a, b, c]*`, `)*lambda[a, b, c]



((`Defined as spacetime tensors representing the NP null vectors of the tetrad formalism `*`see <a href='http://www.maplesoft.com/support/help/search.aspx?term=Physics,tetrads`*`,' target='_new'>?Physics,tetrads`*`,</a> `*l[mu]*`, `)*n[mu]*`, `*m[mu]*`, `)*conjugate(m[mu])



_______________________________________________________

 (2)

Working with Cartesian coordinates,

>

Coordinates(cartesian)

`Systems of spacetime coordinates are:`*{X = (x, y, z, t)}



{X}

 (3)

the Gödel line element is



>

ds^2 = d_(t)^2-d_(x)^2-d_(y)^2+(1/2)*exp(2*q*y)*d_(z)^2+2*exp(q*y)*d_(z)*d_(t)

ds^2 = Physics:-d_(t)^2-Physics:-d_(x)^2-Physics:-d_(y)^2+(1/2)*exp(2*q*y)*Physics:-d_(z)^2+2*exp(q*y)*Physics:-d_(z)*Physics:-d_(t)

 (4)

Setting the metric

>

Setup(metric = rhs(ds^2 = Physics[d_](t)^2-Physics[d_](x)^2-Physics[d_](y)^2+(1/2)*exp(2*q*y)*Physics[d_](z)^2+2*exp(q*y)*Physics[d_](z)*Physics[d_](t)))

_______________________________________________________



`Coordinates: `*[x, y, z, t]*`. Signature: `*`- - - +`



_______________________________________________________



Physics:-g_[mu, nu] = Matrix(%id = 18446744078354506566)



_______________________________________________________



`Setting `*lowercaselatin_is*` letters to represent `*space*` indices`



[metric = {(1, 1) = -1, (2, 2) = -1, (3, 3) = (1/2)*exp(2*q*y), (3, 4) = exp(q*y), (4, 4) = 1}, spaceindices = lowercaselatin_is]

 (5)

The problem appeared upon entering the matrix M below supposedly representing the alleged tetrad.

>

interface(imaginaryunit = i)
>

M := Matrix([[1/sqrt(2), 0, 0, 1/sqrt(2)], [-1/sqrt(2), 0, 0, 1/sqrt(2)], [0, 1/sqrt(2), -I*exp(-q*y), I], [0, 1/sqrt(2), I*exp(-q*y), -I]])

Matrix(%id = 18446744078162949534)

 (6)

Each of the rows of this matrix is supposed to be one of the null vectors [l, n, m, conjugate(m)]. Before setting this alleged tetrad, Maple was asked to settle the nature of it, and the answer was that M was not a tetrad! With the Physics Updates v.857, a more detailed message was issued:

>

IsTetrad(M)

`Warning, the given components form a`*null*`tetrad, `*`with a contravariant spacetime index`*`, only if you change the signature from `*`- - - +`*` to `*`+ - - -`*`. You can do that by entering (copy and paste): `*Setup(signature = "+ - - -")



false

 (7)

So there were actually three problems:

1.

The entered entity was a null tetrad, while the default of the Physics package is an orthonormal tetrad. This can be seen in the form of the tetrad metric, or using the library commands:
>

eta_[]

Physics:-Tetrads:-eta_[a, b] = Matrix(%id = 18446744078354552462)

 (8)
>

Library:-IsOrthonormalTetradMetric()

true

 (9)
>

Library:-IsNullTetradMetric()

false

 (10)
2.

The matrix M would only be a tetrad if the spacetime index is contravariant. On the other hand, the command IsTetrad will return true only when M represents a tetrad with both indices covariant. For  instance, if the command IsTetrad  is issued about the tetrad automatically computed by Maple, but is passed the matrix corresponding to "`&efr;`[a]^(mu)"  with the spacetime index contravariant,  false is returned:
>

"e_[a,~mu, matrix]"

Physics:-Tetrads:-e_[a, `~&mu;`] = Matrix(%id = 18446744078297840926)

 (11)
>

"IsTetrad(rhs(?))"

Typesetting[delayDotProduct](`Warning, the given components form a`*orthonormal*`tetrad only if the spacetime index is contravariant. You can construct a tetrad with a covariant spacetime index by entering (copy and paste): `, Matrix(4, 4, {(1, 1) = 1, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (2, 1) = 0, (2, 2) = 1, (2, 3) = 0, (2, 4) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = sqrt(2)*exp(-q*y), (3, 4) = -sqrt(2), (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 1}), true).rhs(g[])



false

 (12)
3.

The matrix M corresponds to a tetrad with different signature, (+---), instead of Maple's default (---+). Although these two signatures represent the same physics, they differ in the ordering of rows and columns: the timelike component is respectively in positions 1 and 4.



The issue, then, became how to correct the matrix M to be a valid tetrad: either change the setup, or change the matrix M. Below the two courses of action are provided.



First the simplest: change the settings. According to the message (7), setting the tetrad to be null, changing the signature to be (+---) and indicating that M represents a tetrad with its spacetime index contravariant would suffice:

>

Setup(tetradmetric = null, signature = "+---")

[signature = `+ - - -`, tetradmetric = {(1, 2) = 1, (3, 4) = -1}]

 (13)

The null tetrad metric is now as in the reference used.

>

eta_[]

Physics:-Tetrads:-eta_[a, b] = Matrix(%id = 18446744078298386174)

 (14)

Checking now with the spacetime index contravariant

>

e_[a, `~&mu;`] = M

Physics:-Tetrads:-e_[a, `~&mu;`] = Matrix(%id = 18446744078162949534)

 (15)

At this point, the command IsTetrad  provided with the equation (15), where the left-hand side has the information that the spacetime index is contravariant

>

"IsTetrad(?)"

`Type of tetrad: `*null



true

 (16)

Great! one can now set the tetrad M exactly as entered, without changing anything else. In the next line it will only be necessary to indicate that the spacetime index, mu, is contravariant.

>

Setup(e_[a, `~&mu;`] = M, quiet)

[tetrad = {(1, 1) = -(1/2)*2^(1/2), (1, 3) = (1/2)*2^(1/2)*exp(q*y), (1, 4) = (1/2)*2^(1/2), (2, 1) = (1/2)*2^(1/2), (2, 3) = (1/2)*2^(1/2)*exp(q*y), (2, 4) = (1/2)*2^(1/2), (3, 2) = -(1/2)*2^(1/2), (3, 3) = ((1/2)*I)*exp(q*y), (3, 4) = 0, (4, 2) = -(1/2)*2^(1/2), (4, 3) = -((1/2)*I)*exp(q*y), (4, 4) = 0}]

 (17)



The tetrad is now the matrix M. In addition to checking this tetrad making use of the IsTetrad command, it is also possible to check the definitions of tetrads and null vectors using TensorArray.

>

e_[definition]

Physics:-Tetrads:-e_[a, `&mu;`]*Physics:-Tetrads:-e_[b, `~&mu;`] = Physics:-Tetrads:-eta_[a, b]

 (18)
>

TensorArray(Physics:-Tetrads:-e_[a, `&mu;`]*Physics:-Tetrads:-e_[b, `~&mu;`] = Physics:-Tetrads:-eta_[a, b], simplifier = simplify)

Matrix(%id = 18446744078353048270)

 (19)

For the null vectors:

>

l_[definition]

Physics:-Tetrads:-l_[mu]*Physics:-Tetrads:-l_[`~mu`] = 0, Physics:-Tetrads:-l_[mu]*Physics:-Tetrads:-n_[`~mu`] = 1, Physics:-Tetrads:-l_[mu]*Physics:-Tetrads:-m_[`~mu`] = 0, Physics:-Tetrads:-l_[mu]*Physics:-Tetrads:-mb_[`~mu`] = 0, Physics:-g_[mu, nu] = Physics:-Tetrads:-l_[mu]*Physics:-Tetrads:-n_[nu]+Physics:-Tetrads:-l_[nu]*Physics:-Tetrads:-n_[mu]-Physics:-Tetrads:-m_[mu]*Physics:-Tetrads:-mb_[nu]-Physics:-Tetrads:-m_[nu]*Physics:-Tetrads:-mb_[mu]

 (20)
>

TensorArray([Physics:-Tetrads:-l_[mu]*Physics:-Tetrads:-l_[`~mu`] = 0, Physics:-Tetrads:-l_[mu]*Physics:-Tetrads:-n_[`~mu`] = 1, Physics:-Tetrads:-l_[mu]*Physics:-Tetrads:-m_[`~mu`] = 0, Physics:-Tetrads:-l_[mu]*Physics:-Tetrads:-mb_[`~mu`] = 0, Physics[g_][mu, nu] = Physics:-Tetrads:-l_[mu]*Physics:-Tetrads:-n_[nu]+Physics:-Tetrads:-l_[nu]*Physics:-Tetrads:-n_[mu]-Physics:-Tetrads:-m_[mu]*Physics:-Tetrads:-mb_[nu]-Physics:-Tetrads:-m_[nu]*Physics:-Tetrads:-mb_[mu]], simplifier = simplify)

[0 = 0, 1 = 1, 0 = 0, 0 = 0, Matrix(%id = 18446744078414241910)]

 (21)

From its Weyl scalars, this tetrad is already in the canonical form for a spacetime of Petrov type "D": only `&Psi;__2` <> 0

>

PetrovType()

"D"

 (22)
>

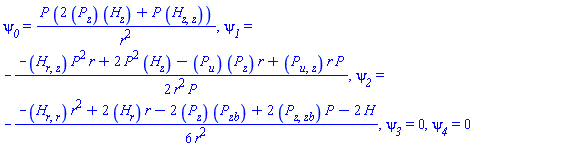

Weyl[scalars]

psi__0 = 0, psi__1 = 0, psi__2 = -(1/6)*q^2, psi__3 = 0, psi__4 = 0

 (23)

Attempting to transform it into canonicalform returns the tetrad (17) itself

>

TransformTetrad(canonicalform)

Matrix(%id = 18446744078396685478)

 (24)

Let's now obtain the correct tetrad without changing the signature as done in (13).

Start by changing the signature back to "(- - - +)"

>

Setup(signature = "---+")

[signature = `- - - +`]

 (25)

So again, M is not a tetrad, even if the spacetime index is specified as contravariant.

>

IsTetrad(e_[a, `~&mu;`] = M)

`Warning, the given components form a`*null*`tetrad, `*`with a contravariant spacetime index`*`, only if you change the signature from `*`- - - +`*` to `*`+ - - -`*`. You can do that by entering (copy and paste): `*Setup(signature = "+ - - -")



false

 (26)

By construction, the tetrad M has its rows formed by the null vectors with the ordering [l, n, m, conjugate(m)]. To understand what needs to be changed in M, define those vectors, independent of the null vectors [l_, n_, m_, mb_] (with underscore) that come with the Tetrads package.

>

Define(l[mu], n[mu], m[mu], mb[mu], quiet)

and set their components using the matrix M taking into account that its spacetime index is contravariant, and equating the rows of M  using the ordering [l, n, m, conjugate(m)]:

>

`~`[`=`]([l[`~&mu;`], n[`~&mu;`], m[`~&mu;`], mb[`~&mu;`]], [seq(M[j, 1 .. 4], j = 1 .. 4)])

[l[`~&mu;`] = Vector[row](%id = 18446744078368885086), n[`~&mu;`] = Vector[row](%id = 18446744078368885206), m[`~&mu;`] = Vector[row](%id = 18446744078368885326), mb[`~&mu;`] = Vector[row](%id = 18446744078368885446)]

 (27)
>

"Define(op(?))"

`Defined objects with tensor properties`



{Physics:-D_[mu], Physics:-Dgamma[mu], Physics:-Psigma[mu], Physics:-Ricci[mu, nu], Physics:-Riemann[mu, nu, alpha, beta], Physics:-Weyl[mu, nu, alpha, beta], Physics:-d_[mu], Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-eta_[a, b], Physics:-g_[mu, nu], Physics:-gamma_[i, j], Physics:-Tetrads:-gamma_[a, b, c], l[mu], Physics:-Tetrads:-l_[mu], Physics:-Tetrads:-lambda_[a, b, c], m[mu], Physics:-Tetrads:-m_[mu], mb[mu], Physics:-Tetrads:-mb_[mu], n[mu], Physics:-Tetrads:-n_[mu], Physics:-Christoffel[mu, nu, alpha], Physics:-Einstein[mu, nu], Physics:-LeviCivita[alpha, beta, mu, nu], Physics:-SpaceTimeVector[mu](X)}

 (28)

Check the covariant components of these vectors towards comparing them with the lines of the Maple's tetrad `&efr;`[a, mu]

>

l[], n[], m[], mb[]

l[mu] = Array(%id = 18446744078298368710), n[mu] = Array(%id = 18446744078298365214), m[mu] = Array(%id = 18446744078298359558), mb[mu] = Array(%id = 18446744078298341734)

 (29)

This shows the [l_, n_, m_, mb_] null vectors (with underscore) that come with Tetrads package

>

e_[nullvectors]

Physics:-Tetrads:-l_[mu] = Vector[row](%id = 18446744078354520414), Physics:-Tetrads:-n_[mu] = Vector[row](%id = 18446744078354520534), Physics:-Tetrads:-m_[mu] = Vector[row](%id = 18446744078354520654), Physics:-Tetrads:-mb_[mu] = Vector[row](%id = 18446744078354520774)

 (30)

So (29) computed from M is the same as (30) computed from Maple's tetrad.

But, from (30) and the form of Maple's tetrad

>

e_[]

Physics:-Tetrads:-e_[a, mu] = Matrix(%id = 18446744078297844182)

 (31)

for the current signature

>

Setup(signature)

[signature = `- - - +`]

 (32)

we see the ordering of the null vectors is [n, m, mb, l], not [l, n, m, mb] used in [1] with the signature (+ - - -). So the adjustment required in  M, resulting in "M^( ')", consists of reordering M's rows to be [n, m, mb, l]

>

`#msup(mi("M"),mrow(mo("&InvisibleTimes;"),mo("&apos;")))` := simplify(Matrix(4, map(Library:-TensorComponents, [n[mu], m[mu], mb[mu], l[mu]])))

Matrix(%id = 18446744078414243230)

 (33)
>

IsTetrad(`#msup(mi("M"),mrow(mo("&InvisibleTimes;"),mo("&apos;")))`)

`Type of tetrad: `*null



true

 (34)

Comparing "M^( ')" with the tetrad `&efr;`[a, mu]computed by Maple ((24) and (31), they are actually the same.

References

[1]. Rainer Burghardt, "Constructing the Godel Universe", the arxiv gr-qc/0106070 2001.

[2]. Frank Grave and Michael Buser, "Visiting the Gödel Universe",  IEEE Trans Vis Comput GRAPH, 14(6):1563-70, 2008.




Download Godel_universe_and_Tedrads.mw

Maple Conference 2020 - It's Almost Here!

by: Kat 232 Maple
October 22 2020
7  0

The 2020 Maple Conference is coming up fast! It is running from November 2-6 this year, all remotely, and completely free.

The week will be packed with activities, and we have designed it so that it will be valuable for Maple users of all skill and experience levels. The agenda includes 3 keynote presentations, 2 live panel presentations, 8 Maplesoft recorded presentations, 3 Maple workshops, and 68 contributed recorded presentations.

There will be live Q&A’s for every presentation. Additionally, we are hosting what we’re calling “Virtual Tables” at every breakfast (8-9am EST) and almost every lunch (12-1 EST). These tables offer attendees a chance to discuss topics related to the conference streams of the day, as well as a variety of special topics and social discussions. You can review the schedule for these virtual tables here.

Attendance is completely free, and we’re confident that there will be something there for all Maple users. Whether you attend one session or all of them, we’d love to see you there!

You can register for the Maple Conference here.

First 12 13 14 15 16 17 18 Last Page 14 of 59
