Animating a Polyhedron

by: pchin 1451 Product: Maple

Yesterday at 9:32 AM

2 0

A little while ago, I created a video, Engaging and Enlightening Students with Maple Visualizations, that showed a sample of Maple visualizations that would be helpful in teaching math. Doing that allowed me to get reacquainted with some of Maple's plotting features that I hadn't used for a while. As a result, I made a second instructional video for my Maple tips series, Animating a Polyhedron in Maple.

I chose this topic because I thought it would show several features in Maple that might not be known to all users. I list them below and encourage you to try them out.

The plots:-polyhedraplot command allows you to create a 3-D plot of a polyhedron, including one of 138 polyhedra that Maple knows about.
The list of named polyhedra available can be obtained by calling the plots:-polyhedra_supported command.
The viewpoint option, which allows you to create an animation by varying the viewpoint through a 3D plot, can be used to rotate the polyhedron.
Finally, the Export feature allows you to save the plot animation as an animated GIF.

Characterizing polynomial roots with RegularChains...

by: dharr 9162 Product: Maple 2026

Yesterday at 8:51 PM

1 0

Recently @salim-barzani asked a question about a paper that involved analysing the different types of roots of polynomials. The appendix in that paper gave the example of the roots of using the analysis in Lu et al, "A complete discrimination system for polynomials", Science in China (Ser. E), 39 (1996) 628-646. The analysis uses the discriminant sequence and extensions. Maple provides this through RegularChains:-ParametricSystemTools:-DiscrminantSequence. For example for this polynomial we find there is a real root of multiplicity 2 and a complex conjugate pair when where the are the th entries in the discriminant sequence .

The problem with these conditions is that they are in terms of the and not directly in terms of the parameters. One can derive these conditions and then solve them to find the conditions on the parameters, but Maple has various routines in the RegularChains, RootFinding:-Parametric and SolveTools packages that directly find conditions on parameters to find when there are specified numbers of real or complex roots for polynomial systems. So this post is my attempt to use these tools to find the conditions on the parameters of the above polynomial that give various types of roots. One immediate difficulty is that generally these routines count distinct roots irrespective of multiplicity, and so some indirect analysis is required. There are several different types of commands and analyses that could be used, and my choices here are more to do with my learning experience than an optimum analysis.

The first conclusion is that it is possible, although RealComprehensiveTriangularize did not work as I expected when asking for zero real roots (see cases (a) and (b)) (bug?). Assuming it had worked, RealComprehensiveTriangularize could cover all the cases here, though that will not be true when there are more parameters. There doesn't seem to be an obvious systematic way of doing this analysis, which is a downside. Another downside is the large number of subcase conditions, which look as if they could be combined into fewer subcases. CellDecomposition works well for cases without multiplicity.

Main worksheet [not all is displayed below]:

Download RootAnalysis4.mw

>

Consider the following polynomial in with the three real parameters . We would like to know the conditions on these parameters that lead to different numbers of real and complex-conjugate pairs of roots of different multiplicities.

>

Consider first how many cases there are. We can set this up as a combinatorial problem in the combstruct package.

>

For a degree 4 polynomial there are 9 different cases to consider. Here means a (non-real) complex-conjugate pair of roots and means a real root; the exponents indicate the multiplicities.

>

These are (in order)
(a) A duplicate pair of complex-conjugate roots

(b) Two distinct pairs of complex-conjugate roots

(c) A real root of multiplicity 2 and a pair of complex-conjugate roots

(d) A real root of multiplicity 4

(e) Two distinct real roots of multiplicity 1 and a complex-conjugate pair

(f) Two distinct real roots each of multiplicity 2

(g) A real root of multiplicity 3 and a real root of multiplicity 1

(h) Three distinct real roots, of multiplicities 2, 1, and 1

(i) Four distinct real roots of multiplicity 1

Declare the variables first and parameters last. is the number of parameters. Use the suggested order.

>

vp := SuggestVariableOrder([p = 0], [x]); R := PolynomialRing(vp); np := nops(`minus`({vp[]}, {x}))

Define derivative polynomials. when there is a root of multiplicity 2 or more; when there is a root of multiplicity 3 or more and when there is a root of multiplicity 4.

>

Discriminant is zero if and only if there are repeated roots.

>

(d) A real root of multiplicity 4

This is perhaps the simplest case and can be done using RealComprehensiveTriangularize. Specifying means use the last 3 variables in the PolynomialRing as parameters. The argument 1 means we want the cases where there is one distinct real root. We specify that all of are zero so that the 1 real root is the common root of these polynomials, i.e., is a root on multiplicity 4. (I find the cadcell output a little easier to use, but it is not critical.)

>

PiecewiseTools:-Is, "Wrong kind of parameters in piecewise"

This means that the conditions on the parameters to get a single real root of multiplicity 4 are

>

and that the polynomial to solve to find this root under these conditions is

>

which we can check:

>

	(g) A real root of multiplicity 3 and a real root of multiplicity 1

	(f) Two distinct real roots each of multiplicity 2

	(i) Four distinct real roots of multiplicity 1

	(h) Three distinct real roots, of multiplicities 2, 1, and 1

	(e) Two distinct real roots of multiplicity 1 and a complex-conjugate pair

	(c) A real root of multiplicity 2 and a pair of complex-conjugate roots

	(b) Two distinct pairs of complex-conjugate roots

(a) A duplicate pair of complex-conjugate roots

Here we want multiplicity 2 but no real roots. The discriminant is expected to be zero, but in most cases is not.

>

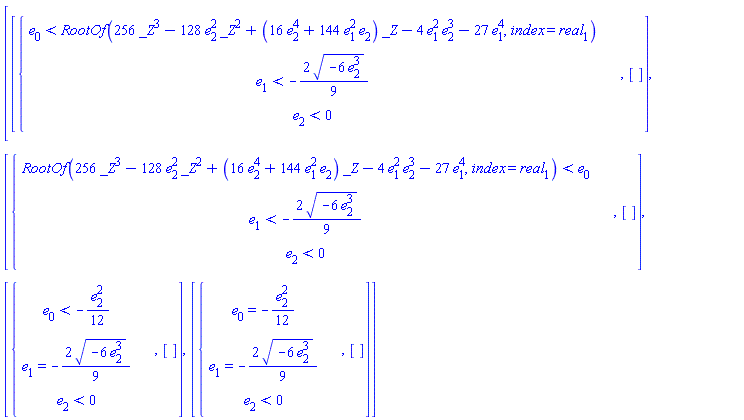

rct := RealComprehensiveTriangularize({p = 0, p2 = 0, p3 <> 0, p4 <> 0}, np, R, 0, output = cadcell); nops(rct[2]); Display(rct[2][1 .. 4], R)

Consider one of the cases with an equality for e[0], suggesting a zero discriminant.
Find a sample point satisfying the conditions, and see what the roots are like

>

j := 37; cell := rct[2][j][1]; conds := Info(cell, R); pts := Info(SamplePoints(cell, R), R)[1]; `~`[is](eval(conds, pts))

[0 < e[2], e[1] = 0, e[0] = (1/4)*e[2]^2]

We find two complex roots of multiplicity 2, which are complex conjugates, as expected

>

Check that discriminant is zero.

>

But, for example, the first cell does not have the discriminant zero, and does not give a correct result.

>

j := 1; cell := rct[2][j][1]; conds := Info(cell, R); pts := Info(SamplePoints(cell, R), R)[1]; `~`[is](eval(conds, pts))

[e[2] < 0, e[1] < -(2/9)*(-6*e[2]^3)^(1/2), e[0] < RootOf(256*_Z^3-128*e[2]^2*_Z^2+(16*e[2]^4+144*e[1]^2*e[2])*_Z-4*e[1]^2*e[2]^3-27*e[1]^4, index = real[1])]

We find a complex conjugate pair and two distinct real roots, which is not expected for this case.

>

The discriminant is indeed nonzero.

>

We did not yet find the conditions for this case. We can ask for the conditions for different numbers of complex roots (complex in this context includes real).

>

We are interested in the conditions for exactly two distinct roots, which is found from the second constructible_set. There are two subcases.

>

PIECEWISE([12*e[0]+e[2]^2 = 0, ``], [27*e[1]^2+8*e[2]^3 = 0, ``], [e[2] <> 0, ``]), PIECEWISE([4*e[0]-e[2]^2 = 0, ``], [e[1] = 0, ``], [e[2] <> 0, ``])

Consider the second case

>

solve(case2[1], {e[0], e[1]}); q1 := eval(p, %); rts2 := [solve(%, x)]

${e[0] = (1/4)*e[2]^2, e[1] = 0}$

[(1/2)*(-2*e[2])^(1/2), -(1/2)*(-2*e[2])^(1/2), (1/2)*(-2*e[2])^(1/2), -(1/2)*(-2*e[2])^(1/2)]

We saw this before when e[2]<0 as case (f) with real roots of multiplicity 2. Now, for e[2]>0 we indeed have two duplicate pairs of complex conjugate roots

>

Consider the first case

>

ans1 := {solve(case1[1], {e[0], e[1]}, explicit)}; q11 := eval(p, ans1[1]); rts11 := [solve(%, x, explicit)]

${{e[0] = -(1/12)*e[2]^2, e[1] = -(2/9)*(-6*e[2])^(1/2)*e[2]}, {e[0] = -(1/12)*e[2]^2, e[1] = (2/9)*(-6*e[2])^(1/2)*e[2]}}$

x^4+x^2*e[2]-(2/9)*x*(-6*e[2])^(1/2)*e[2]-(1/12)*e[2]^2

[(1/6)*(-6*e[2])^(1/2), (1/6)*(-6*e[2])^(1/2), (1/6)*(-6*e[2])^(1/2), -(1/2)*(-6*e[2])^(1/2)]

The rts11 subcase polynomial q11 must have real coefficients and therefore only applies for e[2]<0. The roots are real with multiplicity 3 and multiplicity 1 and this case is just case (g) above. The rts12 subcase polynomial q12 (below) also requires e[2]<0 and corresponds to case (g), but with signs reversed.

>

x^4+x^2*e[2]+(2/9)*x*(-6*e[2])^(1/2)*e[2]-(1/12)*e[2]^2

[(1/2)*(-6*e[2])^(1/2), -(1/6)*(-6*e[2])^(1/2), -(1/6)*(-6*e[2])^(1/2), -(1/6)*(-6*e[2])^(1/2)]

Therefore the rts2 case is the solution for case (a); the cell37 example was a special case of this. In fact if we have a duplicate pair of complex-conjugate roots, the polynomial must be a pefect square, as we see it is

>

(1/4)*(2*x^2+e[2])^2

>

Download RootAnalysis5.mw

ExaktAI: AI Mathematics with Validation and Human...

by: ecterrab 14742 Product: Maple

May 27 2026

8 7

A note on what I've been working on for the past while. Some of you may have seen the announcement on LinkedIn yesterday; this is for the home audience.

The question I've been chasing is the one that's underneath the Physics package, the dsolve / pdsolve formal methods and heuristics, the advanced Mathematical Functions and FunctionAdvisor, and most of what I've written for Maple over the years. How can mathematicians and physicists speed up significantly their work using Computer Algebra Systems (CAS) and at the same time trust the result a computer hands back? The new chapter is what happens when AI sits between the human and the CAS, and the answer to that, in my view, turns out to be a much harder problem than the AI hype suggests.

Why? Because AI is increasingly the driver of computational mathematics in research, engineering, and education. And the unsolved problem isn't whether AI can do mathematics. It can. The problem is that an incorrect AI result arrives with the same confidence as a correct one.

On 100 challenging problems of undergraduate mathematics we tested, six independent state-of-the-art AIs returned mathematically equivalent answers on only 21% of them, and even within a single AI, repeated runs disagreed with themselves on 3% to 57% of the problems (details). The gap this validation crosses, between probabilistic inference and certified mathematical computation, is epistemological, not technological. It won't close with more training data. It needs validation across multiple AIs and multiple CAS, with no single engine having the final word.

ExaktAI aims to address that gap. It guides AI through mathematical computation, validates each step against Maple and Mathematica, and automatically generates and opens a corresponding CAS document where the validation can be audited and reproduced for every step, and where one can continue working on the problem. The goal: AI-mathematics that is validated, with the human in the loop.

ExaktAI is now well developed (TRL 6: System prototype demonstration in a simulated environment, on the ISED / Innovative Solutions Canada TRL scale). At the end an image. A Beta is scheduled for late summer / fall 2026; details at exaktai.ai.

In summary: ExaktAI is my present, and if you work on AI for mathematics and computer algebra, or the validation problem for AI, I'd love to hear your perspective.

Edgardo S. Cheb-Terrab
ExaktAI
Research Fellow Emeritus at Maplesoft.

Tribonacci numbers

by: Mister_Matthew_abc 25 Product: Maple 2026

May 19 2026

0 1

Hi MaplePrimes, and all,

Here is a new, to me, set of numbers
defined by ,
the first three numbers are {1,2,3}
and then,
the next number is the sum of the three
previous numbers,
so,
{1,2,3,6,11,20, ... }
but can only calculate a finite number of numbers
the, so called, Tribonacci numbers
could start with {0,1,0}
see online
https://oeis.org/A001590

and
triple_recursive_sequence_simple_first.mw

triple_recursive_sequence_simple_first.pdf

regards,
Matt

Configuring the ribbon interface

by: C_R 3812 Product: Maple 2026

May 17 2026

5 2

The new ribbon style user interface of recent Maple versions is well structured and visually much more appealing than the former user interface. Great for new users. However, I do not use the new Maple version for productive work because it is considerably slower to use: Much more clicks and mouse movements are involved than before, which breaks the flow.

To improve this situation, I thought about customizing the quick access toolbar with menu items that I need all the time. With Maple 2026 this suggestion has become a less viable solution because the quick access toolbar shrunk in size and moved to a screen location with low mouse activity (to get there fast, the mouse has to move back and forth like Speedy Gonzales). The tiny buttons in the toolbar are hard to distinguish and to hit in one go (a golfer might say “it's rare like an eagle”). If you disagree, try to write text and switch to non-executable math (to enter a symbol) and switch back to text and continue writing. Do the same with the former user interface (e.g. Maple 2024) and compare.

As a new suggestion I thought about adding a new tab "My Tab" to the ribbon that is customizable by the user. Here is what I would pick from the current ribbon items

(A subset from 4 out of 10 tabs: The Home, Insert, Edit and Help tab. The latter is less important)

I would probably also add these two items

although they do not fully replace the former buttons from the contextual tool bar

.

I use the above buttons from the former user interface allot in text passages to toggle between text and non-executable math. They are also useful to change the input mode of an empty document block (instead of inserting a new line with the desired input mode and deleting unwanted input lines). These buttons were introduced with Maple 2021 to improve usability, now they are gone and with it the ease of integrating math into text. With Maple 2026, I have to go back to using F5, which now “toggles” between three states (with the drawback that now in 1-D Math no indication of the state of the input mode is available on the user interface).

The above selection of menu items is my selection to work efficiently on textbook style Maple documents composed of explanatory text passages (including non-executable math) and Maple input and output. Other users would probably customize differently according to their needs.

A final remark about the undo function. Most software has undo on a top level. I do not understand why undo is not in the current quick access toolbar.

I strongly hope for productivity improvements that I can stop using Maple 2025.2 for Screen Readers (having the former user interface). Please do something to reduce mouse movements and clicks of frequently used interface functions. There is too much tab switching between the 3 most important tabs (Home, Insert, Edit) and too little functionality and ease of use of the quick access toolbar.

I would be interested to know which menu items other users would select.

twin and cousin prime numbers

by: Mister_Matthew_abc 25 Product: Maple 2026

May 16 2026

1 2

Hi again Maple community, and others,

want to share
tiwn_and_cousin_prime_numbers.mw
tiwn_and_cousin_prime_numbers.pdf
(spelling error in file name)

~

just want to share,
some successful code

The lesser of the twin primes are listed
{3,5,11,17,29,41,59,71}
https://oeis.org/A001359
Prime numbers p such that p+2 is also a prime number

also, the lesser of the cousin primes are listed
{3,7,13,19,37,43,67,79,97}
https://oeis.org/A023200
prime numbers p such that p+4 is also a prime number

good fun

also, my webpage has more details
https://mattanderson.fun
okay

regards,
Matt

Header/Footer suggestion

by: Peter Volkmer 5 Product: Maple

May 15 2026

1 0

Would it be possible to include the file path in $File for the proposed header/footer insertions.

Thanks in advance

Peter

New book using Maple, published by SIAM

by: rcorless 815 Product: Maple

May 06 2026

2 2

I am very pleased to announce the publication of my new book written together with Nic Fillion, "Perturbation Methods Using Backward Error", which uses Maple heavily throughout.

You can find it at

the SIAM bookstore

and I hope that you find it useful and interesting.

You can also find a paper in Maple Transactions, written with Michelle Hatzel, that explains how we generated the image that was chosen for the cover. Exploring Cover Designs for an Upcoming Book In the end, the SIAM design people chose a different one than we had thought, but they did pick one of the ones we generated!

This was fun to do.

a rainbow-hued image with many levels; two dark blue spots connected by a horizontal and a vertical blue line from each that intersect; alarming red spots in the upper and lower left corner

New Maple Videos

by: pchin 1451 Product: Maple

May 06 2026

4 4

Over the past few months, I've created a number of short videos. My intention is to help people use Maple more effectively. I occasionally give workshops introducing Maple and its programming language, and many of the topics come from questions I get from the participants.

These can be found on our Youtube channel. Here are the ones posted so far.

What is a Workbook?
Creating a Workbook
How to Customize Your Maple Settings with the Options Dialog
What is Maple Transactions?
How to Submit an Article to Maple Transactions
Quotation Marks in Maple
Using Single Quotes to Prevent Evaluation

If you find these helpful and have suggestions for future videos, please leave a comment, thanks!

Maple 2026.1 shows a wrong version

by: LolaMund 25 Product: Maple 2026

May 06 2026

3 4

> kernelopts(version);
Maple 2026.0, X86 64 LINUX, Apr 28 2026, Build ID 2011354

Update to Maple 2026

by: TechnicalSupport 825 Product: Maple 2026

April 30 2026

3 3

Maple 2026.1

We have just released an update to Maple. Maple 2026.1 includes further enhancements to the new AI Assistant and Plotting Themes, as well as Explore, accessibility, and the math engine. As always, we recommend that all Maple 2026 users install this update.

In particular, please note that this update includes a fix to the problem where titles do not show up when using the Explore commands title option. As always, thanks for helping us, and your fellow Maple users, by letting us know!

This update is available through Tools>Check for Updates in Maple, and is also available from the Maple 2026.1 download page on web site, where you can also find more details.

Uninstalling Maple Flow

by: Mth2026 0 Product: Maple Flow 2025

April 29 2026

0 1

My post with a valid question (second time) on the Migration Assistant add-on was deleted by a moderator who thought that it was spam.

I have decided to uninstall Maple Flow altogether and consider Smath Solver or CalcTree instead. It is unfortunate that Maple has such a bad customer service.
