You need more points. One thousand points is a very small amount for an implicitplot. Use numpoints= 10000 and also add gridrefine= 3.

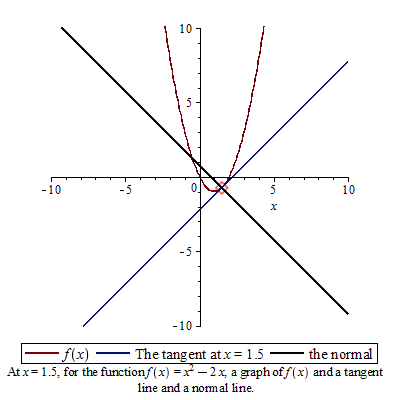

The student[showtangent] command is old and deprecated. It's better to use Student:-Calculus1:-Tangent, which automatically shows the point of tangency and puts a good caption on the plot.

f:= x-> x^2-2*x:
a:= 1.5:
T:= Student:-Calculus1:-Tangent(
     f(x), x= a, -10..10, output= plot,
     pointoptions= [symbol= diamond, symbolsize= 24, color= red]
):
N:= plot(-1/D(f)(a)*(x-a)+f(a), x= -10..10, color= black, legend= ["the normal"]):
plots:-display(
     [subs(" and a tangent line."= " and a tangent line and a normal line.", T), N],
     view= [-10..10, -10..10], scaling= constrained
);

You can cut and paste to MaplePrimes plaintext (1D) Maple input and most 2D Maple output. It won't work for Matrices, Vectors, and plots. For plots, you can Export them using a right-click context menu. I always export to PNG (except for animations, for which I use GIF). Then upload them to MaplePrimes using the green uparrow tool, which is the last item on the second row of the toolbar in the MaplePrimes editor. You can also use this tool to upload entire worksheets.

First question: Click on the Edit menu, select Execute, then select either Selection or Worksheet.

Second question: Use the time() command. The most common way is to place

st:= time():

at the beginning of the block of code that you want to time. Also place

time()-st;

at the end of the block.

The two-argument form of map is called zip. So, for that command that doesn't work, change map to zip.

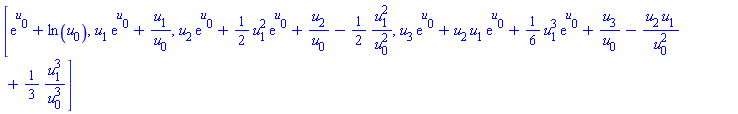

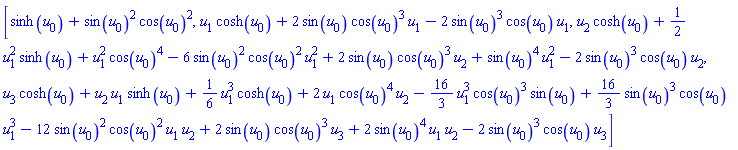

Here is an implementation of your algorithm for the univariate case. I show Examples 1, 3, and 4 from your paper. I don't understand Example 2; please explain it further.

If you like the below, I'll try to work on the multivariate case.

Download Biazar-Shafiof_Adomian.mw

Generate the animations of each curve separately, then merge the animations with plots:-display. Here is an example with basic animations:

A1:= plots:-animate(plot, [x, x= 0..T, color= blue], frames= 5, T= 1..5):
A2:= plots:-animate(plot, [-x, x= 0..T, color= green], frames= 5, T= 1..5):
plots:-display([A1,A2]);

If you still need help, please post the complete code for your pdsolve command.

Your original expression contains integral expressions of the form Int(f(N), 1). That's nonsense to Maple. The second argument, "1", means nothing. Unfortunately, the plot command's response to nonsense is often to return an empty plot rather than a meaningful error message.

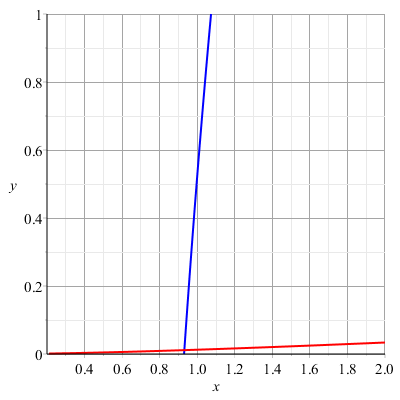

I tried to keep it as much the same as the Matlab code as I could. But I can't abide by repetitious code or a needless lack of generality, so I made it a procedure. Note that I made the number of steps, n, the parameter rather than making the stepsize, h, the parameter.

EulersMethod:= proc(
     Yprime::algebraic, Yt::function, y0::numeric, R::range(numeric), n::posint
)
local
     h:= -`-`(op(R))/n, #Independent variable step
     a:= op(1,R),       #Initial value of independent variable
     T:= Vector(n+1, k-> a+(k-1)*h),
     Ystar:= Vector(n+1, [y0]), #Preallocate array (good coding practice)
     t:= op(Yt), #Independent variable
     i, k1
;
     for i from 1 to n do
          #Previous approx for y gives approx for derivative.
          k1:= eval(Yprime, [Yt= Ystar[i], t= T[i]]);
          #Approximate solution for next value of y
          Ystar[i+1]:= Ystar[i] + k1*h
     end do;
     plot(<T | Ystar>, args[6..])
end proc:

ode:= 0.0207*V(t)^2 - 893.58:
EulersMethod(ode, V(t), 0, 0..5, 50);
EulersMethod(ode, V(t), 0, 0..1, 100);

Well, two commands that will be useful for that are plots:-animate and sum. The first argument to animate is another plot command. In this case, that should be plot. The second argument is a list that contains the arguments to that plot command, except that there's an animation parameter somewhere. In this case, the animation parameter will be your N. The third argument specifies the range of the animation parameter. In this case, that'll be N= 1..10. The next argument, in this case, must be frames= 10 (because this can't be a continuous animation; only integer values of the parameter make sense).

I'm assuming that the author did not supply the source code with the package, or you wouldn't be asking.

Not all of the following steps are necessarily needed. Let's say you want procedure P1 in package P:

interface(verboseproc= 2);
kernelopts(opaquemodules= false);
lprint(eval(P:-P1));

Now select and copy the output. Paste it to an input prompt, a Code Edit Region, or your own text editor. Your first editting step should be to add the line breaks and indenting.

Here are four things that you can do to get more information. I have listed them in order by how structured the information is, with the most structured first.

1. Set

infolevel[all]:= 5;

That will cause programs to print out additional information of the programmers' choosing. You can use higher or lower numbers for more or less information. Most programs don't use levels higher than 5.

2. Print the code of procedures with showstat:

showstat(int);
showstat(sin);
showstat(cos);

3. Trace the execution of particular procedures with trace:

trace(int);
trace(sin);

4. Trace the execution of everything with printlevel:

printlevel:= 10000:

You can use higher or lower numbers for more or less information.

For RSA to work, d and e must be multiplicative inverses mod ((p-1)*(q-1)). That is, we must have

e = 1/d mod ((p-1)*(q-1)).

That does not hold for your d and e.

(N,R):= selectremove(has, [a], I);

After executing the above, N will contain the nonreals and R will contain the reals.

The commands codegen:-cost, exprofile, excallgraph, and CodeTools:-Profiling:- may be useful to you.

Since you have provided increments for each variable, each variable takes on only a finite number of values. Hence there are only a finite number of possible evaluations for the profit expressions. Maple can process these quickly. Using the values of the "constants" that you provided, I was able to verify that ProfitB is greater than ProfitC at every evaluation. That is done like this:

restart:
c:= 1/10:  w:= 1/2:  p:= 1:
ProfitB:= (Pb*(p-w)/(1-Pb)-c)*Hb+w*(Pb*(1-Pa)*Hb+Pa*Pb*Hb)+wu*Pa*(1-Pb)*Ha;
ProfitC:= (Pa*(wu-w+Pb*(p-wu))/(1-Pa)-c)*(Ha+Hb)+w*(Pa*(1-Pb)*Ha+Pb*(1-Pa)*Hb+Pa*Pb*(Ha+Hb));

greater:= simplify(ProfitB - ProfitC);

for PB from 0 to 1/4 by 1/40 do
     for PA from 0 to 1/4 by 1/40 while PA < PB do
          for HB from 0 to 50 by 5 do
               for HA from 0 to HB by 5 while HA < HB do
                    for WU from 1/2 to 1 by 1/10 do
                         if eval(greater, [Pb,Pa,Hb,Ha,wu]=~ [PB,PA,HB,HA,WU]) <= 0 then
                              print(PB,PA,HB,HA,WU)
                         end if
                    end do
               end do
          end do
     end do
end do;

Since there is no output printed, that verifies the result. If you want to supply ranges and increments for the "constants", a similar verification could be coded.
