@Stretto I don't know if that's possible via Maple commands. Essentially, you would like to click somewhere and have Maple respond with the 2D-coordinates of where you clicked. (And that's a very natural thing to want; I've thought about it for years.) If there were a formal mechanism for this, I think that it'd be in the DocumentTools:-Actions subpackage, but it isn't.

The functionality must exist within the GUI at some level, because you can do this: Using the context menu for a 2D-plot, select Probe Info, then Copy Point Data (to clipboard). I just did that (on some random plot), and I got this:

-4.421
2.172

In other words, I simply pasted my clipboard to the MaplePrimes editor rather than literally typing those numbers. So I suspect that there's some hack possible to get those numbers programmatically. Acer @acer might know how. If anyone here knows, it'd be him.

As acer just hinted at, arctan(y/x) and arctan(y,x) are not necessarily equal. For x<0 and real y, these expressions will differ by Pi; however, for x>0 and real y, they'll be equal. I was only providing a simpler means to do what you were already doing by more-complicated methods in your worksheet. The information about angles in the 2nd and 3rd quadrants has already been irretrievably lost by the use of the one-argument form.

@brownr Sorry, I misread the Question. Yes, you and the OP are correct that Maple Flow is not listed under that Products tab. And, of course, it should be listed there.

@nm Several numerical calculations that I've done (with the ODE with initial condition y(0)=2) suggest that using the process that I described produces a correct solution to your original ODE and that the other solution (the one with hypergeom) is complete garbage that doesn't even come close to satisfying its own initial condiiton (y(0)=2)!

For example:

restart:
ode1:= diff(y(x),x) = x*(y(x)^2-1)^(2/3):
ode2:= diff(y(x),x)^3 = x^3*(y(x)^2-1)^2:
ic:= y(0)=2:
sol1:= dsolve({ode1, ic}); #hypergeom solution
evalf(eval(rhs(sol1), x=0)); #verify initial condition
               -1.005937890 - 4.630275440*10^(-14)*I

#Expected 2., possibly with some rounding error.

sol2:= dsolve({ode2, ic}); #WeierstrassPPrime solution
#Check in original ODE:
res:= odetest(sol2, {ode1, ic});
#That residual is extremely complicated, but plotting suggests that it's
#identically 0, except for some "noise" that's totally expected due to
#rounding error when plotting such a long and messy expression.
plot(res, x= -2..2);

So, to directly Answer your initial Question, to wit:

• Any one knows of a way to have Maple verify that this solution of the ODE is correct?

Answer: It can't be verified as correct because it's actually not correct.

This is a blind guess; I have no way of testing this: I suspect that the 0 is the operating system error code for a successful (i.e., without error) run of an external program. If you were using Maple instead of MapleSim, an analogous command would be ssystem, whose return value is a 2-element list, the 1st element being that error code, and the 2nd element being the actual data returned by the external program.

If this analogy isn't just coincidental, then you need to somehow extract the 2nd element of the returned data.

@lcz And here is another use of RelationGraph: a procedure for GraphPower with 3 methods:

1. an algorithm that I just invented called unions;
2. a method based on the AllPairsDistance matrix and RelationGraph;
3. Maple's own GraphTheory:-GraphPower.

My unions algorithm in several times faster than the others for small values of k.

RelationGraph:= (f, V::list({integer, symbol, string}))->
local n:= {$nops(V)}, i, F:= i-> j-> f(V[i], V[j], _rest);
    GraphTheory:-Graph(V, [seq](select(F(i), n, _rest), i= n))
:

GraphPower:= proc(
    G::Graph,
    k::posint,
    {method::identical("default", "distance", "unions"):= ""},
    $
)
local V:= GraphTheory:-Vertices(G), n:= [$nops(V)], N, L;
    if method = "unions" then
        L:= rtable(op~((N:= op(4,G))));
        to k-1 do N:= N union~ (n-> {seq}(L[[n[]]]))~(N) od;
        GraphTheory:-Graph(V, N minus~ `{}`~(n))
    elif method = "distance" then
        N:= GraphTheory:-AllPairsDistance(G);
        L:= table(V=~ n);
        RelationGraph((u,v)-> u<>v and N[L[u],L[v]] <= k, V)
    else
        GraphTheory:-GraphPower(G,k)
    fi
end proc
:

And here is a usage test comparing all methods:

GT:= GraphTheory:  RG:= GT:-RandomGraphs:
G:= RG:-RandomGraph(2^10, 2^11):
gc(): CodeTools:-Usage(GraphPower(G, 5, method= "default")):
memory used=71.82MiB, alloc change=6.01MiB,
cpu time=1.16s, real time=1.15s, gc time=0ns

E1:= GT:-Edges(%):  nops(%);
                             315735

gc(): CodeTools:-Usage(GraphPower(G, 5, method= "unions")):
memory used=60.46MiB, alloc change=0 bytes,
cpu time=281.00ms, real time=280.00ms, gc time=0ns

E2:= GT:-Edges(%):  evalb(E1=E2);
                              true

gc(): CodeTools:-Usage(GraphPower(G, 5, method= "distance")):
memory used=240.44MiB, alloc change=6.01MiB,
cpu time=3.69s, real time=2.99s, gc time=812.50ms

E3:= GT:-Edges(%):  evalb(E1=E3);
                              true

@lcz You wrote:

• I am probably more interested in the panning implementation of RelationGraph in maple. Maybe it's not always the most effective. But it can reflect the degree of abstraction of certain graph operations. And not just some graph operations in isolation.

I agree on all points. A procedure for RelationGraph is quite easy; here it is:

RelationGraph:= (f, V::list({integer, symbol, string}))->
local n:= {$nops(V)}, i, F:= i-> j-> f(V[i],V[j]);
    GraphTheory:-Graph(V, [seq](select(F(i), n, _rest), i= n))
:

And here is a rewrite of LexProd which offers a choice of two methods: one using RelationGraph and the other the same as the algorithm in my previous Reply:

LexProd:= proc(
    G::seq(Graph),
    {
        method::identical("default", "relation"):= "default",
        vertex_format::{string, symbol}:= "(%a,%a)"
    },
    $
)
local
    LexProd2:= proc(G::Graph, H::Graph, $)
    local
        (Vg,Vh):= op(GT:-Vertices~([G,H])),
        (ng,nh):= op(`..`~(1, nops~([Vg,Vh]))),
        (Ng,Nh):= op(op~(4, [G,H])),
        i, j, J, k, K,
        P:= [seq](seq([i,j], j= nh), i= ng),
        Vgh:= (curry(nprintf, vertex_format)@((i,j)-> (Vg[i],Vh[j]))@op)~(P)
    ;
        if method="relation" then
            K:= subs(_K= op~(table(Vgh=~ P)), v-> _K[v]);
            RelationGraph(
                proc(a, b, $)
                local (u,v):= K(a), (x,y):= K(b);
                    x in Ng[u] or u=x and y in Nh[v]
                end proc,
                Vgh
            )
        else
            k:= 0;  K:= table((p-> op(p)= ++k)~(P));
            GraphTheory:-Graph(
                Vgh,
                [seq](
                    {seq(seq(K[k,J], k= Ng[j[1]]), J= nh), seq(K[j[1],k], k= Nh[j[2]])},
                    j= P
                )
            )
        fi
    end proc,
    n:= nops([G]);
;
    if n=0 then error "no graphs given" elif n=1 then G[1] else foldl(LexProd2, G) fi
end proc
:

And here's an example verifying that the two methods give identical results:

GT:= GraphTheory:
(G,H):= GT:-Graph~([`$`]~([3,4]), [{{1,2}}, {{1,3},{2,4}}])[];
 G, H := Graph 38: an undirected unweighted graph with 3 vertices and 1 edge(s),
     Graph 39: an undirected unweighted graph with 4 vertices and 2 edge(s)

GH1:= LexProd(G,H);
    GH1 := Graph 40: an undirected unweighted graph with 12 vertices and 22 edge(s)

GH2:= LexProd(G, H, method= "relation");
    GH2 := Graph 42: an undirected unweighted graph with 12 vertices and 22 edge(s)

evalb(GT:-Edges(GH1) = GT:-Edges(GH2));
                              true

@Earl You wrote:

• I've spent some time studying your latest replay. It's difficult for me to understand so I'll return to it later.

I'd be happy to answer any questions about it, especially if it's not a large number of questions asked all at once. (However, a large number of questions spread out over several sessions is not a problem.)

@Joe Riel @AmirHosein Sadeghimanesh

It should be pointed out, for the OP's benefit, that

1. Joe's workaround works because MutableSet has a procedure named ModuleIterator;
2. the original command doesn't work because MutableSet doesn't have a procedure named ModuleType;
3. the workaround in my Answer below works because MutableSet does have a procedure named convert which accepts the keyword set as its 2nd argument.

In summary, what works is determined entirely by an object's defining module having specifically named procedures (or "methods" if you want to call procedures that).

@planetmknzm

Yesterday I saw that you asked (essentially) how to compose an animation consisting of some parts that move and some that don't. That Question got deleted, I don't know if by you or some Moderator. Anyway, I'll Answer that Question here.

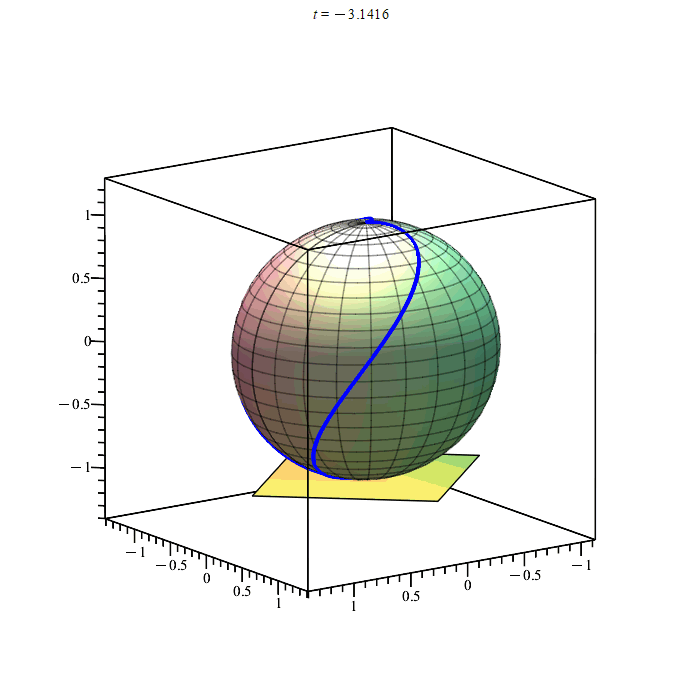

Here is a program that plots a curve on the unit sphere and animates a plane tangent to the sphere whose point of tangency moves along the curve. As you can see, this can be done much more simply than your attempts. My computer uses 0.17 seconds to produce this 100-frame animation.

restart:
Sph:= (theta,phi)-> [(cos,sin)(theta)*~sin(phi), cos(phi)]:
C:= Sph@op@[theta, phi]:

#Example curve:
theta:= t-> t+Pi:  phi:= t-> t^2/Pi:

#Parts of the animation that don't move:
Static:= plots:-display(
    plottools:-sphere(),
    plots:-spacecurve(C(t), t= -Pi..Pi, thickness= 4, color= blue)
):
#Plot a plane tangent to sphere at a given point P:
Plane:= proc(P)
local v:= <P>^%T, B:= LinearAlgebra:-NullSpace(v)^~%T;
    plots:-polygonplot3d(<v+B[1], v+B[2], v-B[1], v-B[2]>)
end proc
:
plots:-animate(Plane, [C(t)], t= -Pi..Pi, frames= 100, background= Static);

@Joe Riel The OP wants to check the type of the elements of the MutableSet. So, continuing with your example,

M:= MutableSet(a, b, c);
type(M, 'MutableSet'(symbol));
Error, module does not have a ModuleType member to accept structured type arguments

Please give a simple example of esp for which it doesn't work. As far as I can tell, what you decribed works for me:

esp:= 2*x + 3*x^2 + 4*sqrt(x):
coeff(esp, sqrt(x));
                               4

@Jno What is your Maple version (e.g., I'm using Maple 2022)?

@Jno

I've updated the worksheet in my previous Reply. I think that it makes the math easier to understand, although the Maple coding is a bit trickier. In particular, I came up with a single simple unified formula for combining sums of squares and their degrees of freedom, which simplifies the presentation of SS_A, SS_AP, and SSE. Please download the new worksheet.

The "error" (better termed the "unmodeled variance") is a factor of all the F-ratios, so it would have been impossible to proceed without it.

Maple's Vector and Matrix indices always start at 1. Array indices can start at any integer. I think that you're misinterpretting the DataFrame's column of row labels and row of column labels as being a 0^th column and 0^th row; they're not---they're just labels shown as a visual aid. They're akin to the tickmarks on a plot: a visual aid that's not part of the function being plotted.

Negative Vector and Matrix indices represent counting rows or columns backwards, i.e., from the bottom or right ends. Zero is never a valid Vector or Matrix index.

@AdeWaele What exactly do you find "not easily possible" about acer's Answer dgdx:=  D[1](g)??? It's the other two Answers that are flawed!
