You can just skip this option:

restart;
p1 := plot([[0,0], [1,1]]);




If you want the plot of a function  f(x)  without labels, then define the function in operator form, for example:

restart;
plot(x->x^2, -2..2);



restart;
f := a*b+a*c+a+b+c;
s:=select(has, {op(f)}, a) minus {a*b};
# or
s:=select(has,{op(f)} minus {a*b}, a);

Output:       {a, a*c}

restart;
eq2 := ln(2*u^2 + u - 1) = -c - 2*ln(x);
sol:=[solve(eq2,u)];
simplify(sol[1]);
applyop(t->sqrt(simplify(t^2)), [2,2], %);

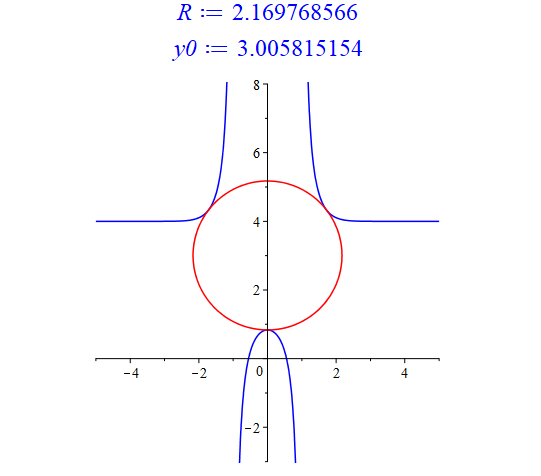

restart;
f:=x->3+(exp(x^2)+exp(1))/(exp(x^2)-exp(1));
P:=plot(f, -5..5, -3..8, color=blue, discont);
g:=x->f(a)-1/D(f)(a)*(x-a); # Equation of normal to f(x) at the point x=a
x0:=0:
M:=f(0);
d:=sqrt(a^2+(f(a)-g(0))^2):
a:=fsolve(g(0)-M=d, a=1..2);
R:=evalf(d);
y0:=evalf(g(0));
# (x-x0)^2+(y-y0)^2=R^2 - Equation of the circle
plots:-display(P, plottools:-circle([x0,y0],R, color=red), scaling=constrained);



We use a numerical solution ( fsolve  instead of  solve ) because the  solve  command cannot find any solution (returns NULL)

restart;
B[0] := (1/24)*x^4/h^4:
B[1] := -(1/24)*(5*h^4-20*h^3*x+30*h^2*x^2-20*h*x^3+4*x^4)/h^4:
B[2] := (1/24)*(155*h^4-300*h^3*x+210*h^2*x^2-60*h*x^3+6*x^4)/h^4:
B[3] := -(1/24)*(655*h^4-780*h^3*x+330*h^2*x^2-60*h*x^3+4*x^4)/h^4:
B[4] := (1/24)*(625*h^4-500*h^3*x+150*h^2*x^2-20*h*x^3+x^4)/h^4:
piecewise(seq(op([x>n*h and x<=(n+1)*h,B[n]]), n=0..4), 0);




Your surface  f(x,y)  is blocking this ellipse a little, and I raised the ellipse a little:

restart;
with(plots):
f := (x,y) -> x^2 + y^2 - 12*x + 16*y;
display(plot3d(f(x, y), x = -9 .. 9, y = -9 .. 9), pointplot3d([[6, -8, f(6, -8)]], color = red, symbol = solidcircle, symbolsize = 18), view = [-4.2 .. 8.2, -8.2 .. 4.2, -100 .. 100], spacecurve([cos(t), sin(t), 1 - 12*cos(t) + 15*sin(t)+1], t = 0 .. 2*Pi, thickness=2, color=red, orientation = [-15, 68, 5]));

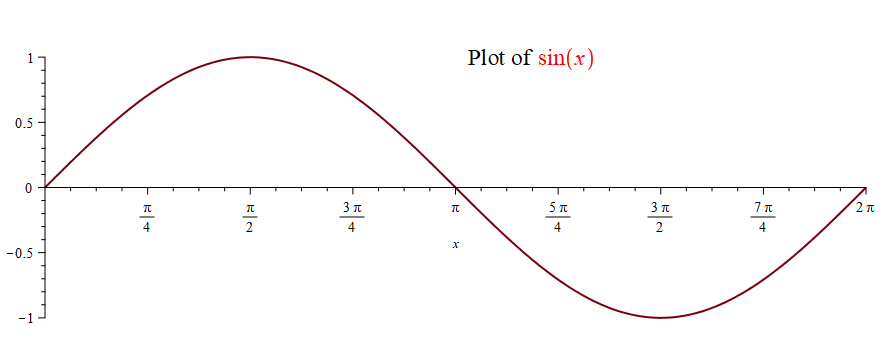

As an easier way you can use  plots:-textplot  command instead, which can easily specify any color.

Example:

restart;
P:=plot(sin(x), x=0..2*Pi, thickness=2, size=[900,400]):
T:=plots:-textplot([[3.5,1,"Plot of "],[4,1,sin(x),color=red]], font=[TIMES,18]):
plots:-display(P,T, scaling=constrained);



When you solve the equation  abs(sin(x)+y^2+y+I*x)  for  y , you are assuming x and y are real numbers. But Maple does not know this and simply solves this equation in the complex domain for the variable  y . For real numbers, it is obvious that   sqrt(u^2+v^2)=0  is equivalent to the system  {u=0,v=0}

A := evalc(abs(sin(x)+y^2+y+I*x));
[solve]({op([1, 1, 1], A), op([1, 2, 1], A)})

                                         A := sqrt((sin(x)+y^2+y)^2+x^2)
                                         [ {x = 0, y = -1}, {x = 0, y = 0}]

Example:

restart;

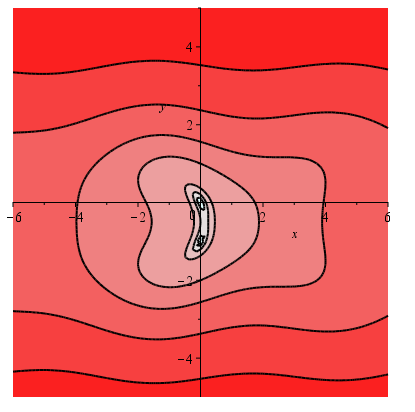

plots:-contourplot(abs(sin(x) + y^2 + y + x*I), x = -6 .. 6, y = -5 .. 5, contours = [seq(1/2^n, n = 1 .. 3), seq(2^n, n = 1 .. 5)], numpoints = 10000, thickness = 2, color = black, filledregions = true, coloring=["LightCyan","Red"]);



In Maple 2018.2, you get the expected result. Of course, formally it will only be a right-sided derivative (as indicated by vv). The code is much shorter if you notice that your function is just  ln(2+5*t)  for  t>=0  and use the differentiate operator  D :

eval(diff(ln(piecewise(t=0,2,2+5*t)),t), t=0);
D(t->ln(2+5*t))(0);

                                               5/2
                                               5/2

The following works as expected:

restart;
B := x^4 - 4*x^3/(2 + p) - 6*(p - 1)*x^2/((3 + p)*(2 + p)) - 4*p*(p - 5)*x/((4 + p)*(3 + p)*(2 + p)) - (p - 1)*(p^2 - 15*p - 4)/((5 + p)*(4 + p)*(3 + p)*(2 + p));
for p from -1 to 5000 do
    A[p] := fsolve(B, x, complex);
end do:
ptlist := convert(A,list):
plots:-complexplot(ptlist, x = -1 .. 1.5, y = -0.5 .. 0.5, style = point);



It is well known that most of the differential equations cannot be solved symbolically, only numerically. To do this, you must provide an initial condition and use the  numeric  option.

Example:

restart;
Sol:=dsolve({diff(y(x), x) = (6*y(x)^5 - 3*y(x)*x^2 - 20*y(x)^3*x)/(-4*x^3 + 30*y(x)^2*x^2 - 30*y(x)^4 + 7*y(x)^6), y(0)=1}, y(x), numeric);
plots:-odeplot(Sol, [x,y(x)], x=0..1, color=red);

                                            Sol:=proc(x_rkf45) ... end proc




Example:

restart;

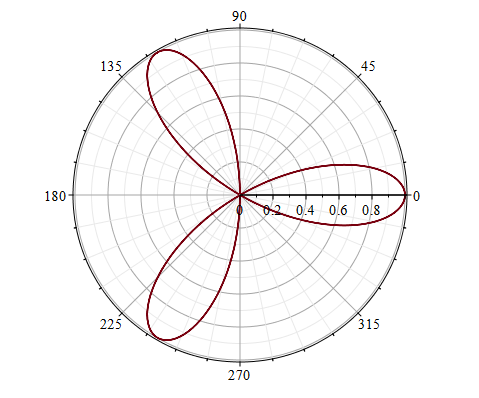

plots:-polarplot(cos(3*phi*Pi/180), phi=0..360, angularunit=degrees);





The problem is easily reduced to solving the equation in integers:

restart;
isolve(5*x-7=16*y);

                 {x = 11+16*_Z1, y = 3+5*_Z1}


So  x = 11+16*_Z1  is the set of all the solutions,  _Z1  is an integer.

First you must specify  ma1  as a list:

ma1 := [0., .1941703021, .3203871063, .4089371834, .4712881303, .5145114133, .5435036431, .5617715009, .5718586242, .5756277760, .5744585726]:

subs(ma1[1]=1,ma1);
# Or
subsop(1=1,ma1);

[1, 0.1941703021, 0.3203871063, 0.4089371834, 0.4712881303, 0.5145114133, 0.5435036431, 0.5617715009, 0.5718586242, 0.5756277760, 0.5744585726]
[1, 0.1941703021, 0.3203871063, 0.4089371834, 0.4712881303, 0.5145114133, 0.5435036431, 0.5617715009, 0.5718586242, 0.5756277760, 0.5744585726]
