Solution...

Kitonum 21495
February 24 2020
0 0

First, we get general formulas for the coordinates of the vertices of such a quadrilateral. The vertex A lies at the origin, B lies in the upper half-plane, C to the right of A on the Ox-axis, D lies in the lower half-plane. We assume that  |AB|=a, |BC|=b, |AD|=c, |DC|=b+c-a . We can always inscribe a circle in the quadrilateral  ABCD . It remains for us to find the position of point C so that the sum of the angles  ABC  and  ADC  is 180 degrees.  For all plottings and checking the property of three points lying on one straight line (see the original post), we select specific parameter values  a=5, b=11, c=8 .



>

restart;
local D;
d:=b+c-a:
# e is the first coordinate of the point C, e=|AC|
Eq1:=e^2=a^2+b^2-2*a*b*t:
Eq2:=e^2=c^2+d^2-2*c*d*s:
e:=simplify(solve(solve(Eq1,t)=-solve(Eq2,s), e)[1]);
p1:=(a+b+e)/2: p2:=(c+d+e)/2:

S:=proc(a,b,c)
local p;
p:=(a+b+c)/2;
sqrt(p*(p-a)*(p-b)*(p-c));
end proc:
Dist:=(A,B)->sqrt((A[1]-B[1])^2+(A[2]-B[2])^2):

h1:=simplify(2*S(a,b,e)/e): h2:=simplify(2*S(c,d,e)/e):
# The coordinates of all the points A, B, C, D

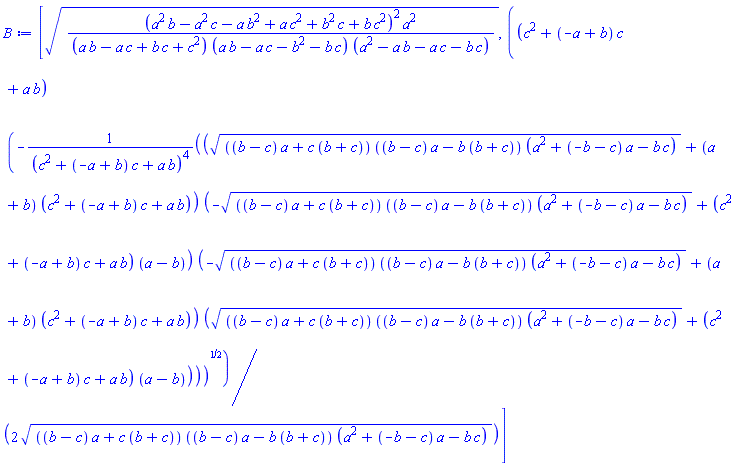

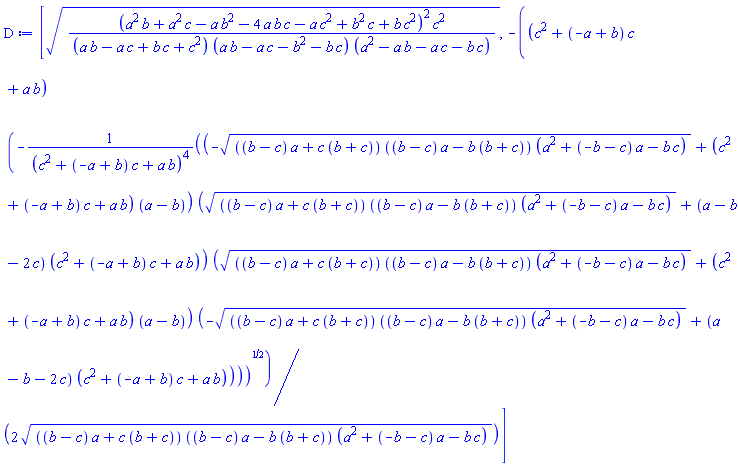

A:=[0,0]; B:=simplify([sqrt(a^2-h1^2),h1]); C:=[e,0]; D:=simplify([sqrt(c^2-h2^2),-h2]);

(((b-c)*a+c*(b+c))*((b-c)*a-b*(b+c))*(a^2+(-b-c)*a-b*c))^(1/2)/(c^2+(-a+b)*c+a*b)



[0, 0]



[((a^2*b-a^2*c-a*b^2+a*c^2+b^2*c+b*c^2)^2*a^2/((a*b-a*c+b*c+c^2)*(a*b-a*c-b^2-b*c)*(a^2-a*b-a*c-b*c)))^(1/2), (1/2)*(c^2+(-a+b)*c+a*b)*(-((((b-c)*a+c*(b+c))*((b-c)*a-b*(b+c))*(a^2+(-b-c)*a-b*c))^(1/2)+(a+b)*(c^2+(-a+b)*c+a*b))*(-(((b-c)*a+c*(b+c))*((b-c)*a-b*(b+c))*(a^2+(-b-c)*a-b*c))^(1/2)+(c^2+(-a+b)*c+a*b)*(a-b))*(-(((b-c)*a+c*(b+c))*((b-c)*a-b*(b+c))*(a^2+(-b-c)*a-b*c))^(1/2)+(a+b)*(c^2+(-a+b)*c+a*b))*((((b-c)*a+c*(b+c))*((b-c)*a-b*(b+c))*(a^2+(-b-c)*a-b*c))^(1/2)+(c^2+(-a+b)*c+a*b)*(a-b))/(c^2+(-a+b)*c+a*b)^4)^(1/2)/(((b-c)*a+c*(b+c))*((b-c)*a-b*(b+c))*(a^2+(-b-c)*a-b*c))^(1/2)]



[(((b-c)*a+c*(b+c))*((b-c)*a-b*(b+c))*(a^2+(-b-c)*a-b*c))^(1/2)/(c^2+(-a+b)*c+a*b), 0]



[((a^2*b+a^2*c-a*b^2-4*a*b*c-a*c^2+b^2*c+b*c^2)^2*c^2/((a*b-a*c+b*c+c^2)*(a*b-a*c-b^2-b*c)*(a^2-a*b-a*c-b*c)))^(1/2), -(1/2)*(c^2+(-a+b)*c+a*b)*(-(-(((b-c)*a+c*(b+c))*((b-c)*a-b*(b+c))*(a^2+(-b-c)*a-b*c))^(1/2)+(c^2+(-a+b)*c+a*b)*(a-b))*((((b-c)*a+c*(b+c))*((b-c)*a-b*(b+c))*(a^2+(-b-c)*a-b*c))^(1/2)+(a-b-2*c)*(c^2+(-a+b)*c+a*b))*((((b-c)*a+c*(b+c))*((b-c)*a-b*(b+c))*(a^2+(-b-c)*a-b*c))^(1/2)+(c^2+(-a+b)*c+a*b)*(a-b))*(-(((b-c)*a+c*(b+c))*((b-c)*a-b*(b+c))*(a^2+(-b-c)*a-b*c))^(1/2)+(a-b-2*c)*(c^2+(-a+b)*c+a*b))/(c^2+(-a+b)*c+a*b)^4)^(1/2)/(((b-c)*a+c*(b+c))*((b-c)*a-b*(b+c))*(a^2+(-b-c)*a-b*c))^(1/2)]

 (1)
>

a:=5: b:=11: c:=8:
e;
simplify([A,B,C,D]);

(1/167)*5118884^(1/2)



[[0, 0], [(3655/1279721)*1279721^(1/2), (220/1279721)*1279721^(1/2)*385^(1/2)], [(2/167)*1279721^(1/2), 0], [(2152/1279721)*1279721^(1/2), -(448/1279721)*1279721^(1/2)*385^(1/2)]]

 (2)
>

E:=[e/(a+b)*a,0]; F:=[e/(c+d)*c,0];

[(5/2672)*5118884^(1/2), 0]



[(4/1837)*5118884^(1/2), 0]

 (3)
>

O1:=simplify(eval([x,y],solve({(y-B[2])/(E[2]-B[2])=(x-B[1])/(E[1]-B[1]), (y-D[2])/(F[2]-D[2])=(x-D[1])/(F[1]-D[1])})));
r:=radnormal(2*S(a,Dist(A,O1),Dist(B,O1))/a);

[(1000/250667)*1279721^(1/2), -(12/250667)*1279721^(1/2)*385^(1/2)]



(4/19)*385^(1/2)

 (4)
>

P:=simplify((A+B)/2); Q:=simplify((B+C)/2);
O2:=simplify(eval([x,y],solve({(B-A)[1]*(x-P[1])+(B-A)[2]*(y-P[2]),(B-C)[1]*(x-Q[1])+(B-C)[2]*(y-Q[2])})));
R:=Dist(A,O2);

[(3655/2559442)*1279721^(1/2), (110/1279721)*1279721^(1/2)*385^(1/2)]



[(18981/2559442)*1279721^(1/2), (110/1279721)*1279721^(1/2)*385^(1/2)]



[(1/167)*1279721^(1/2), -(57/514360)*1279721^(1/2)*385^(1/2)]



(1/3080)*492692585^(1/2)

 (5)
>

S:=simplify(eval([x,y],solve({y=0,(y-B[2])/(D[2]-B[2])=(x-B[1])/(D[1]-B[1])})));

[(40/16199)*1279721^(1/2), 0]

 (6)
>

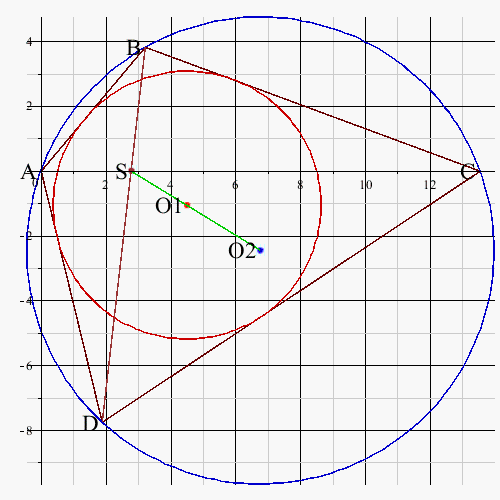

# All the plottings
with(plots): with(plottools):
L1:=line(B,D,color=brown):
L2:=line(S,O2,color=green):
T:=textplot([[A[],"A"],[B[],"B"],[C[],"C"],[D[],"D"],[O1[],"O1"],[O2[],"O2"],[S[],"S"]],align=left,font=[times,18]):
PP:=pointplot([O1,O2,S],color=[red,blue,brown],symbol=solidcircle):
display(plot([A,B,C,D,A]),circle(O1,r,color=red),circle(O2,R,color=blue),PP,L1,L2,T, scaling=constrained, size=[500,500]);


>






Download problem.mw



Ways...

Kitonum 21495
February 23 2020
2 2
# Without parenthesis
`%+`(seq(k,k=1..5))%/5;

# Or with parenthesis
`%+`(seq(k,k=1..5))/5;

# Or
1%/5*`%+`(seq(k,k=1..5));







Adjustment...

Kitonum 21495
February 23 2020
0 1

In fact, after calculating the derivatives, we get a linear system:

NULL

>

restart
>

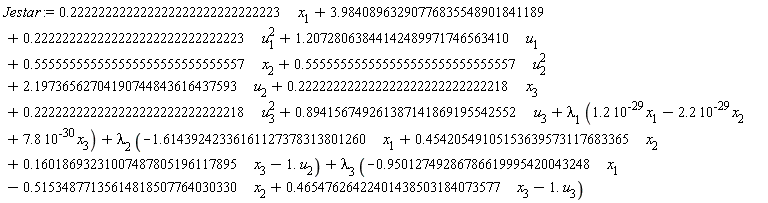

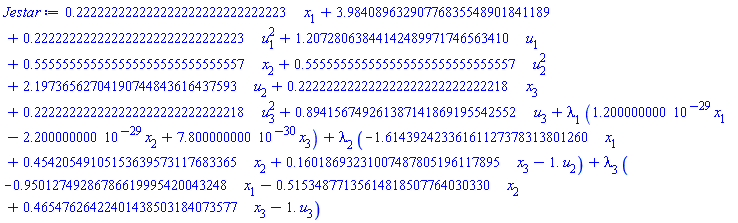

Jestar := .222222222222222222222222222223*x[1]+3.98408963290776835548901841189+.222222222222222222222222222223*u[1]^2+1.20728063844142489971746563410*u[1]+.555555555555555555555555555557*x[2]+.555555555555555555555555555557*u[2]^2+2.19736562704190744843616437593*u[2]+.222222222222222222222222222218*x[3]+.222222222222222222222222222218*u[3]^2+.894156749261387141869195542552*u[3]+lambda[1]*(1.2*10^(-29)*x[1]-2.2*10^(-29)*x[2]+7.8*10^(-30)*x[3])+lambda[2]*(-1.61439242336161127378313801260*x[1]+.45420549105153639573117683365*x[2]+.16018693231007487805196117895*x[3]-1.*u[2])+lambda[3]*(-.95012749286786619995420043248*x[1]-.51534877135614818507764030330*x[2]+.46547626422401438503184073577*x[3]-1.*u[3])

.222222222222222222222222222223*x[1]+3.98408963290776835548901841189+.222222222222222222222222222223*u[1]^2+1.20728063844142489971746563410*u[1]+.555555555555555555555555555557*x[2]+.555555555555555555555555555557*u[2]^2+2.19736562704190744843616437593*u[2]+.222222222222222222222222222218*x[3]+.222222222222222222222222222218*u[3]^2+.894156749261387141869195542552*u[3]+lambda[1]*(0.1200000000e-28*x[1]-0.2200000000e-28*x[2]+0.7800000000e-29*x[3])+lambda[2]*(-1.61439242336161127378313801260*x[1]+.45420549105153639573117683365*x[2]+.16018693231007487805196117895*x[3]-1.*u[2])+lambda[3]*(-.95012749286786619995420043248*x[1]-.51534877135614818507764030330*x[2]+.46547626422401438503184073577*x[3]-1.*u[3])

 (1)
>

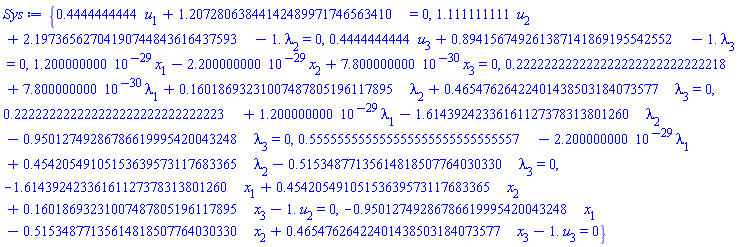

Sys := {seq(diff(Jestar, lambda[i]) = 0, i = 1 .. 3), seq(diff(Jestar, u[i]) = 0, i = 1 .. 3), seq(diff(Jestar, x[i]) = 0, i = 1 .. 3)}

{.4444444444*u[1]+1.20728063844142489971746563410 = 0, 1.111111111*u[2]+2.19736562704190744843616437593-1.*lambda[2] = 0, .4444444444*u[3]+.894156749261387141869195542552-1.*lambda[3] = 0, 0.1200000000e-28*x[1]-0.2200000000e-28*x[2]+0.7800000000e-29*x[3] = 0, .222222222222222222222222222218+0.7800000000e-29*lambda[1]+.16018693231007487805196117895*lambda[2]+.46547626422401438503184073577*lambda[3] = 0, .222222222222222222222222222223+0.1200000000e-28*lambda[1]-1.61439242336161127378313801260*lambda[2]-.95012749286786619995420043248*lambda[3] = 0, .555555555555555555555555555557-0.2200000000e-28*lambda[1]+.45420549105153639573117683365*lambda[2]-.51534877135614818507764030330*lambda[3] = 0, -1.61439242336161127378313801260*x[1]+.45420549105153639573117683365*x[2]+.16018693231007487805196117895*x[3]-1.*u[2] = 0, -.95012749286786619995420043248*x[1]-.51534877135614818507764030330*x[2]+.46547626422401438503184073577*x[3]-1.*u[3] = 0}

 (2)
>

solve(Sys)

{lambda[1] = -0.3405136588e31, lambda[2] = -73.32501333, lambda[3] = 81.81631382, u[1] = -2.716381437, u[2] = -67.97014107, u[3] = 182.0748534, x[1] = -8572.737031, x[2] = -17682.28255, x[3] = -36684.27842}

 (3)
>

NULL

NULL




Download example-new.mw

multiplication sign...

Kitonum 21495
February 22 2020
0 1

y = x*(x^4 - 10*x^2 + 39)/30

Statistics:-NonlinearFit...

Kitonum 21495
February 22 2020
1 0

For best results, I replaced the constant  2  with a third parameter  a3 . We specify the segment  [a,b]  and the step  h  to obtain data  X  and  Y  and then use the  Statistics:-NonlinearFit  command. When reducing the segment  [a,b] , we get better results:


>

restart;
a, b:=0, 5:
f1:=x->(2*x)/(3+5*x):
f2:=x->a1*(a3-exp(-a2*x)):
h:=0.1: n:=(b-a)/h;
X:=[seq(i*h,i=0..n)];

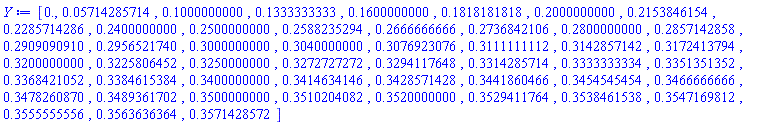

Y:=[seq(f1(i*h),i=0..n)];
F:=Statistics:-NonlinearFit(f2(x), X, Y, x);
plot([f1(x),F], x=0..5, color=[blue,red],legend=["f1","f2"]);

50.00000000



[0., .1, .2, .3, .4, .5, .6, .7, .8, .9, 1.0, 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.9, 2.0, 2.1, 2.2, 2.3, 2.4, 2.5, 2.6, 2.7, 2.8, 2.9, 3.0, 3.1, 3.2, 3.3, 3.4, 3.5, 3.6, 3.7, 3.8, 3.9, 4.0, 4.1, 4.2, 4.3, 4.4, 4.5, 4.6, 4.7, 4.8, 4.9, 5.0]



[0., 0.5714285714e-1, .1000000000, .1333333333, .1600000000, .1818181818, .2000000000, .2153846154, .2285714286, .2400000000, .2500000000, .2588235294, .2666666666, .2736842106, .2800000000, .2857142858, .2909090910, .2956521740, .3000000000, .3040000000, .3076923076, .3111111112, .3142857142, .3172413794, .3200000000, .3225806452, .3250000000, .3272727272, .3294117648, .3314285714, .3333333334, .3351351352, .3368421052, .3384615384, .3400000000, .3414634146, .3428571428, .3441860466, .3454545454, .3466666666, .3478260870, .3489361702, .3500000000, .3510204082, .3520000000, .3529411764, .3538461538, .3547169812, .3555555556, .3563636364, .3571428572]



HFloat(0.3473297773329595)-HFloat(0.31980563612041574)*exp(-HFloat(1.1646240098951652)*x)




>

a, b:=0, 2:
h:=0.1: n:=(b-a)/h;
X:=[seq(i*h,i=0..n)];
Y:=[seq(f1(i*h),i=0..n)];
F:=Statistics:-NonlinearFit(f2(x), X, Y, x);

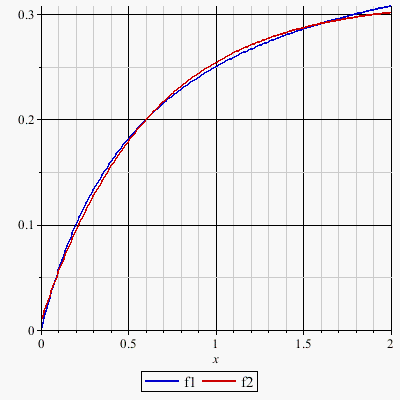

plot([f1(x),F], x=0..2, color=[blue,red],legend=["f1","f2"]);

20.00000000



[0., .1, .2, .3, .4, .5, .6, .7, .8, .9, 1.0, 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.9, 2.0]



[0., 0.5714285714e-1, .1000000000, .1333333333, .1600000000, .1818181818, .2000000000, .2153846154, .2285714286, .2400000000, .2500000000, .2588235294, .2666666666, .2736842106, .2800000000, .2857142858, .2909090910, .2956521740, .3000000000, .3040000000, .3076923076]



HFloat(0.31271326321044796)-HFloat(0.30377027346591473)*exp(-HFloat(1.6468916879789395)*x)




>




Edit.

Download nonlinfit2.mw

plot...

Kitonum 21495
February 21 2020
1 0

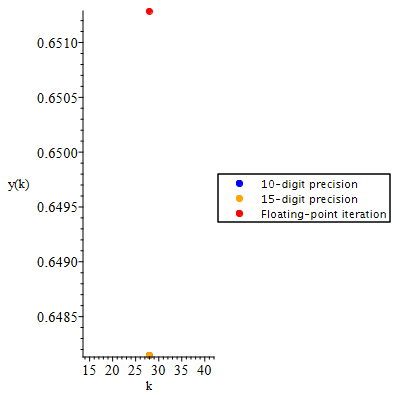

Here is another way. The first and second points almost coincide, so they block one another:

restart;
plot([[[28,.6481496576]],[[28, .648149657615473]],[[28, .6512873548]]],style='point',color=["Blue","Orange","Red"], symbol=solidcircle, symbolsize=12, labels = ["k", "y(k)"], legend = ["10-digit precision", "15-digit precision", "Floating-point iteration"] ,legendstyle = [font = ["HELVETICA", 9], location = right]);





Single quotes...

Kitonum 21495
February 21 2020
0 2

Use single quotes for single use (in 2d math only):

'a >= b'



A way...

Kitonum 21495
February 21 2020
0 3

Example:

-%int(x^2,x);





Not bug but a design...

Kitonum 21495
February 20 2020
0 3

I think this is not a bug, but just such a design in Maple 2015. In subsequent versions of Maple, this command has been improved (the word  parameters  can be omitted). For example, in Maple 2018.2, the following code works correctly:

y := [1, 3, 8];
val := r->y[r]:
Explore(val(r), r=1..3);



Short way...

Kitonum 21495
February 20 2020
0 4




>

diff(F(x(t),y(t)),t)=0;

(D[1](F))(x(t), y(t))*(diff(x(t), t))+(D[2](F))(x(t), y(t))*(diff(y(t), t)) = 0

 (1)
>






Download diff.mw

Workaround...

Kitonum 21495
February 19 2020
2 1

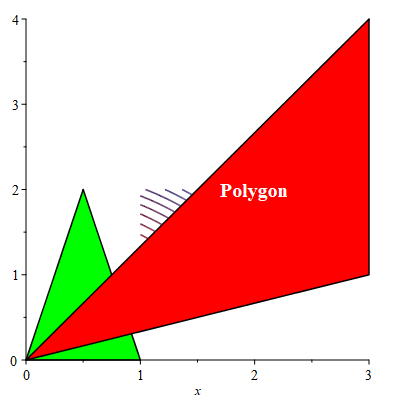

In  display(L2,L22,L3,L1)  the previously recorded polygon  L2  closes the later recorded polygon  L22, but L1  and  L3  always lie higher (in Maple 2018.2). See the workaround below:

restart;
with(plots):
L1 := textplot([2, 2, "Polygon"], color = white, font=[times,bold,16]):
L2 := plottools:-polygon([[0, 0], [3, 4], [3, 1]], color = red):
L22 := plottools:-polygon([[0, 0], [0.5, 2], [1,0]], color = green):
L3 := contourplot(x^2 + y^2, x = 1 .. 1.5, y = 4/3*x..2):

display(L2,L22,L3,L1);







plots:-inequal...

Kitonum 21495
February 19 2020
3 1

The  coords=polar  option doesn't seem to work (in Maple 2018.2), so I used Cartesian coordinates.
3 regions are plotted:

A:=plots:-inequal({sqrt(x^2+y^2)<2+2*x/sqrt(x^2+y^2),sqrt(x^2+y^2)>3},x=-3.3..4.3,y=-4.3..4.3, color=green):
B:=plots:-inequal({sqrt(x^2+y^2)>2+2*x/sqrt(x^2+y^2),sqrt(x^2+y^2)<3},x=-3.3..4.3,y=-4.3..4.3, color=blue):
C:=plots:-inequal({sqrt(x^2+y^2)<2+2*x/sqrt(x^2+y^2),sqrt(x^2+y^2)<3},x=-3.3..4.3,y=-4.3..4.3, color=red):
plots:-display(<A | B | C>, scaling=constrained);






y(x)=C*sin(n*Pi*x) only for A=0...

Kitonum 21495
February 18 2020
3 0

We can get a general solution to your problem for an integer  n , if we first solve without initial conditions, and then impose these conditions and solve the corresponding system. We see that there is an infinite family of solutions  y(x)=C*sin(n*Pi*x)  (С is an any constant)  only if  A = 0. There are no any solutions if  A <> 0 .

>

restart;
ode := diff(y(x), x, x) + (n*Pi)^2*y(x) = A^3*sin(n*Pi*x)^3;
dsol1 := dsolve(ode);
Y:=eval(y(x),dsol1);
Sys:={eval(Y,x=0)=0, eval(Y,x=1)=0};
simplify(eval(op(2,Sys),_C1=0)) assuming n::integer;
solve(%, A,dropmultiplicity);

diff(diff(y(x), x), x)+n^2*Pi^2*y(x) = A^3*sin(n*Pi*x)^3



y(x) = sin(n*Pi*x)*_C2+cos(n*Pi*x)*_C1+(1/8)*(A^3*(cos(n*Pi*x)^2+2)*sin(n*Pi*x)-3*A^3*cos(n*Pi*x)*Pi*n*x)/(n^2*Pi^2)



sin(n*Pi*x)*_C2+cos(n*Pi*x)*_C1+(1/8)*(A^3*(cos(n*Pi*x)^2+2)*sin(n*Pi*x)-3*A^3*cos(n*Pi*x)*Pi*n*x)/(n^2*Pi^2)



{_C1 = 0, sin(n*Pi)*_C2+cos(n*Pi)*_C1+(1/8)*(A^3*(cos(n*Pi)^2+2)*sin(n*Pi)-3*A^3*cos(n*Pi)*Pi*n)/(n^2*Pi^2) = 0}



(3/8)*(-1)^(1+n)*A^3/(Pi*n) = 0



0

 (1)
>






Download ode.mw

Adjustment...

Kitonum 21495
February 18 2020
1 3

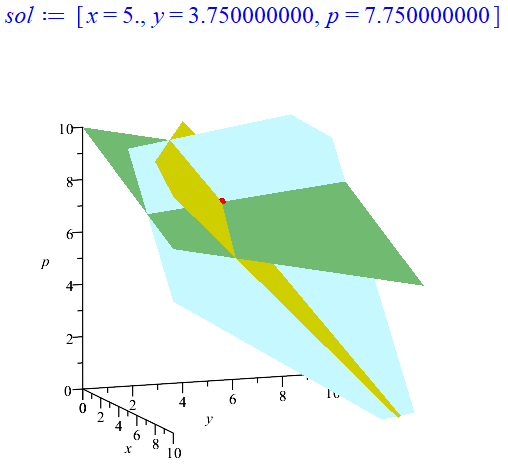

It is easy to achieve good visibility by simple means. I changed the style of the surfaces, removing the lines, each plane made in different colors and a few more minor changes. The solution itself is depicted as a bold red dot:

restart; with(plots):
sys := [p+x+.6*y-15, p+.3*x+.2*y-10, p+.5*x+y-14]:
sol:=solve(sys, [x, y, p])[];
A:=implicitplot3d(sys, x = 0 .. 10, y = 0 .. 10, p = 0 .. 10, style=surface, color=["LightBlue","LightGreen","Yellow"]):
B:=pointplot3d(eval([x,y,p],sol), color=red, symbol=solidsphere, symbolsize=15):
display(A,B, axes=normal, orientation=[-20,80], lightmodel=light4);









Adjustment...

Kitonum 21495
February 17 2020
0 3

Should be:

restart;

M:=Matrix(10, 10, [[1, 0, 0, 0, 1/2, 0, 0, 0, 0, 0], [0, 1/2, 0, 0, 0, 0, 0, 1/3, 0, 0], [0, 0, 1/2, 0, 0, 0, 0, 0, 1/3, 0], [0, 0, 0, 1/3, 0, 0, 0, 0, 0, 0], [1/2, 0, 0, 0, 1/3, 0, 0, 0, 0, 0], [0, 0, 0, 0, 0, 1/3, 0, 0, 0, 0], [0, 0, 0, 0, 0, 0, 1/4, 0, 0, 0], [0, 1/3, 0, 0, 0, 0, 0, 1/4, 0, 0], [0, 0, 1/3, 0, 0, 0, 0, 0, 1/4, 0], [0, 0, 0, 0, 0, 0, 0, 0, 0, 1/4]]);

B:=Matrix(10, 5, [[0, 0, 1/3, 0, 0], [0, 0, 0, 0, 0], [0, 0, 0, 0, 0], [0, 1/4, 0, 0, 0], [0, 0, 1/4, 0, 0], [0, 0, 0, 1/4, 0], [1/2, 1/2, 1, 0, 0], [1, 1/2, 1/2, 1, 0], [0, 1, 1/2, 1/2, 1], [0, 0, 1, 1/2, 1/2]]);

B^%T.M^(-1).B;
