These are answers submitted by Kitonum

restart;
Expr:=A*exp(-m*x)*cos(y)+B*exp(-m*x)*sin(y):
solve(identity(Expr,y), {A,B});

  {A = 0, B = 0}

The shape of the container can be very different. We restrict ourselves to the containers in the shape of a cuboid, and we will assume that length>=width>=height. The task is reduced to the factorization of the number 320 by 3 factors taking into account the conditions above. For this we use the procedure  Factoring  from this post  https://www.mapleprimes.com/posts/141668-Partitions-Of-A-Natural-Number-Into-Factors

ListTools:-Reverse~([map(t->[1,t[]],Factoring(320,2))[],Factoring(320,3)[]]);

[[160, 2, 1], [80, 4, 1], [64, 5, 1], [40, 8, 1], [32, 10, 1], [20, 16, 1], [80, 2, 2], [40, 4, 2], [32, 5, 2], [20, 8, 2], [16, 10, 2], [20, 4, 4], [16, 5, 4], [10, 8, 4], [8, 8, 5]]


This choise  [320,1,1]  is omitted for aesthetic reasons. Perhaps the first few variants (of those that remain) should also be discarded.

There are some problems with this code.

Here is an example with a hemisphere. In the case 1, there are many extraneous lines, in the case 2 the code does not work at all:

L:=[cos(x), sin(x)*cos(y), sin(x)*sin(y)]:
plot3d(L,x=0..Pi/2, y=0..2*Pi, scaling=constrained); # The surface
ContoursWithLabels(L, 0..Pi/2, 0..2*Pi, {0.3,0.7,0.9}, [scaling=constrained]); # The case 1
ContoursWithLabels(L, 0..Pi/2, 0..2*Pi, [scaling=constrained]); # The case 2


You can get a good approximation period using best approximations  sqrt(2)  with rational numbers. See  https://en.wikipedia.org/wiki/Square_root_of_2  For example using  sqrt(2)=577/408  we get good approximation period  T=204*Pi .

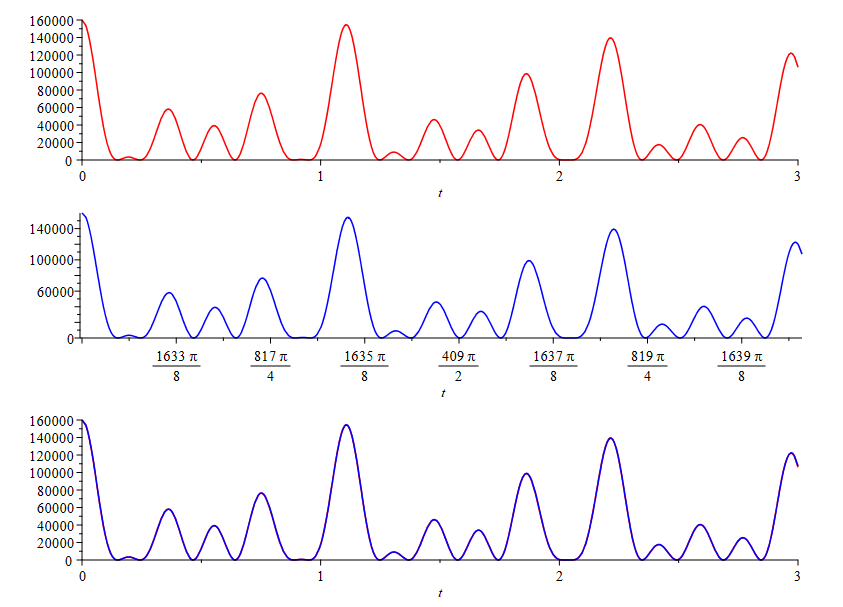

Compare (in the third plot, the previous 2 ones are superimposed on each other.):

A:=plot((100+100*cos(6*t)+200 *cos(12*sqrt(2)*t))^2, t=0..3, color=red, size=[800,200]);
B:=plot((100+100*cos(6*t)+200 *cos(12*sqrt(2)*t))^2, t=204*Pi..204*Pi+3, color=blue,size=[800,200]);
plots:-display(A,plottools:-translate(B,-204*Pi,0));

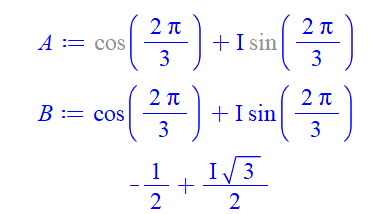

There is another simple way to prevent the immediate calculation of a trigonometric function. If the argument contains  Pi , then just replace  Pi  with  pi . On the output  pi  will look exactly the same as  Pi . When using the  % symbol with the name of a constant or function, they will be displayed in gray, which is not always desirable:

A:=%cos(2*Pi/3)+I*%sin(2*Pi/3);
B:=cos(2*pi/3)+I*sin(2*pi/3);
eval(B, pi=Pi);




Do not use the name and the indexed name with the same symbol in the same document. In your code these are  c  and  c[1], c[2], c[3] . Take a look at what might happen in this case:

restart;
c:=6:
c[1];


I replaced  с  with  С , but then a new error appears. Probably the model itself is incorrect.

restart;
with(plots):
Q := 1000: a := .9: b := 0.8e-3: mu := 0.247e-2: k := .2: y := 0.2e-1: e := .5: g := .5: T := 8: n := 100:
sigma[1] := 0.5e-1: sigma[2] := 0.9e-1: alpha[1] := 0.52e-2: alpha[2] := 0.52e-2: delta[1] := .8: delta[2] := .904: delta[3] := .8: c[1] := 50: c[2] := 250: c[3] := 50: w[1] := 140: w[2] := 130: w[3] := 150: w[4] := 160:
u[1] := min(max(0, z), 1): z := (a*i[p](t)*(i[p](t)+i[pm](t))*(lambda[4](t)-lambda[3](t))+a*s(t)*(i[p](t)+i[pm](t))*(lambda[1](t)-lambda[2](t)))/(n.w[1]): u[2] := min(max(0, C), 1): C := (b*(i[m](t)+i[pm](t))*s(t)*(lambda[3](t)-lambda[1](t))+b*(i[m](t)+i[pm](t))*i[p](t)*(lambda[4](t)-lambda[2](t)))/(n.w[2]): u[3] := min(max(0, j), 1): j := (i[p](t)*lambda[2](t)+i[pm](t)*(lambda[4](t)-lambda[7](t))-(i[p](t)+i[pm](t))*lambda[5](t))/w[3]: u[4] := min(max(0, o), 1): o := (i[m](t)*lambda[3](t)-i[pm](t)*(lambda[4](t)-lambda[7](t))-(i[m](t)+i[pm](t))*lambda[6](t))/w[4]: u[2] := 0: u[3] := 0:

sys := diff(s(t), t) = Q+delta[1]*r[p](t)+delta[2]*r[m](t)+delta[3]*r[pm](t)-(a*(1-u[1])*(i[p](t)+i[pm](t))/n+b*(1-u[2])*(i[m](t)+i[pm](t))/n+mu)*s(t), diff(i[p](t), t) = (1-u[1])*a*(i[p](t)+i[pm](t))*s(t)/n-(1-u[2])*b*(i[m](t)+i[pm](t))*i[p](t)/n-(sigma[1]+u[3])*i[p](t)-(alpha[1]+mu)*i[p](t), diff(i[m](t), t) = (1-u[2])*b*(i[m](t)+i[pm](t))*s(t)/n-(1-u[1])*a*(i[p](t)+i[pm](t))*i[m](t)/n-(sigma[2]+u[4])*i[m](t)-(alpha[2]+mu)*i[m](t), diff(i[pm](t), t) = (1-u[2])*b*(i[m](t)+i[pm](t))*i[p](t)/n+(1-u[1])*a*(i[p](t)+i[pm](t))*i[m](t)/n-(y+u[3]+u[4])*i[pm](t)-(alpha[1]+alpha[2]+mu)*i[pm](t), diff(r[p](t), t) = (sigma[1]+u[3])*i[p](t)+(e*y+u[3])*i[pm](t)-(delta[1]+mu)*r[p](t), diff(r[m](t), t) = (sigma[2]+u[4])*i[m](t)+(y*g*(1-e)+u[4])*i[pm](t)-(delta[2]+mu)*r[m](t), diff(r[pm](t), t) = (y*(1-g)*(1-e)+u[3]+u[4])*i[pm](t)-(delta[3]+mu)*r[pm](t), diff(lambda[1](t), t) = lambda[1](t)*(a*(1-u[1])*(i[p](t)+i[pm](t))/n+b*(1-u[2])*(i[m](t)+i[pm](t))/n+mu)-lambda[2](t)*(1-u[1])*a*(i[p](t)+i[pm](t))/n-lambda[3](t)*(1-u[2])*b*(i[m](t)+i[pm](t))/n, diff(lambda[2](t), t) = -c[1]+lambda[1](t)*(1-u[1])*a*s(t)/n-lambda[2](t)*((1-u[1])*a*s(t)/n+b*(1-u[2])*(i[m](t)+i[pm](t))/n+sigma[1]+u[3]+alpha[1]+mu)-lambda[4](t)*(b*(1-u[2])*(i[m](t)+i[pm](t))/n+(1-u[1])*a*i[m](t)/n)-lambda[5](t)*(sigma[1]+u[3]), diff(lambda[3](t), t) = -c[2]+lambda[1](t)*(1-u[2])*b*s(t)/n+lambda[2](t)*(1-u[2])*b*i[p](t)/n-lambda[3](t)*(u[4]+alpha[2]+sigma[2]+a*(1-u[1])*(i[p](t)+i[pm](t))/n-(1-u[2])*b*s(t)/n)-lambda[4](t)*((1-u[2])*b*i[p](t)/n+a*(1-u[1])*(i[p](t)+i[pm](t))/n)-lambda[6](t)*(sigma[2]+u[4]), diff(lambda[4](t), t) = -c[3]+lambda[1](t)*((1-u[1])*a*s(t)/n+(1-u[2])*b*s(t)/n)-lambda[2](t)*((1-u[2])*b*i[p](t)/n+(1-u[1])*a*s(t)/n)-lambda[2](t)*((1-u[2])*a*i[m](t)/n+b*(1-u[1])*s(t)/n)-lambda[4](t)*(y+u[3]+u[4]+alpha[1]+alpha[2]+mu-(1-u[2])*b*i[p](t)/n-b*(1-u[1])*i[m](t)/n)-lambda[5](t)*(e*y+u[3])-lambda[6](t)*(y*g*(1-e)+u[4])-lambda[7](t)*(y*(1-g)*(1-e)+u[3]+u[4]), diff(lambda[5](t), t) = -lambda[1](t)*delta[1]+lambda[5](t)*(delta[1]+mu), diff(lambda[6](t), t) = -lambda[1](t)*delta[2]+lambda[6](t)*(delta[2]+mu), diff(lambda[7](t), t) = -lambda[1](t)*delta[3]+lambda[7](t)*(delta[3]+mu), i[p](0) = 300, i[m](0) = 200, i[pm](0) = 150, r[p](0) = 200, r[m](0) = 150, r[pm](0) = 150, s(0) = 1000, lambda[1](T) = 0, lambda[2](T) = 0, lambda[3](T) = 0, lambda[4](T) = 0, lambda[5](T) = 0, lambda[6](T) = 0, lambda[7](T) = 0:
p1 := dsolve({sys}, type = numeric, method = bvp[midrich], abserr = 0.1e-3,maxmesh=2400);

Error, (in dsolve/numeric/bvp) initial Newton iteration is not converging


Rewrite your equation as  k*x = 3/2*arctan(x)  and look at 2 graphs  y = k*x  and  y = 3/2*arctan(x) . Since the derivative of the second function at x=0 is 3/2, we get the obvious answer:   k∈(-∞,0]∪[3/2,+∞) . Below you can see the plot for k=3/2 :

 plot([3/2*x, 3/2*arctan(x)], x=-5..5, -5..5, color=[red,blue]);



Edit. The solution above is true for the case b = 0. For arbitrary b<>0, we rewrite the equation  f(x)=b  as  k*x - b = 3/2*arctan(x) . Using the properties of functions and geomeric considerations, we get the final answer (k0(b) is the value of  k  for which for a given  b  the graphs touch each other ):

For  -3*Pi/4<b<0  or  0<b<3*Pi/4 :   k∈(-∞, 0] ∪ [k0(b), +∞)
For  b<=-3*Pi/4  or  b>=3*Pi/4 :   k∈(-∞, 0) ∪ (0, +∞)


Below we can see the animation for the case b = -1. Note that the value of k0(b) can only be found numerically.

restart:
fsolve({k0*x+1=3*arctan(x)*(1/2),k0=3/2*1/(1+x^2)});
plots:-animate(plot,[[-3*Pi/4,3*Pi/4,3*arctan(x)*(1/2),[t*cos(s),1+t*sin(s),t=-5..5]], x=-5..5,-5..5,color=[black$2,blue,red], thickness=[1$2,2$2], linestyle=[3$2,1$2]], s=arctan(eval(k0,%))..Pi, frames=100);

{k0 = 0.3313385522, x = 1.878055290}


See help on the  DEtools:-DEplot  command.

I think that it makes sense to write procedures for calculating the equivalent resistance for the general case, that is, for any number of resistances and their arbitrary connection. Below by combining  ser  and  par  procedures, we can calculate the equivalent resistance for more complex circuits:




Two procedures


ser:=proc() # Procedure for series circuit
normal(`+`(args));
end proc:

par:=proc()  # Procedure for parallel circuit
normal(`+`(map(t->1/t,[args])[])^(-1));
end proc:



Examples of use


ser(R[1],R[2],R[3]);

R[1]+R[2]+R[3]

(1)

par(R[1],R[2],R[3],R[4]);

R[1]*R[2]*R[3]*R[4]/(R[1]*R[2]*R[3]+R[1]*R[2]*R[4]+R[1]*R[3]*R[4]+R[2]*R[3]*R[4])

(2)

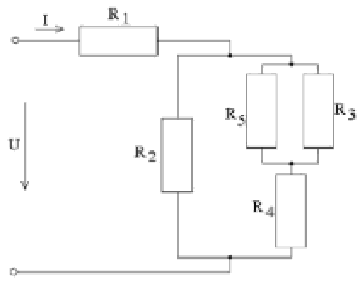

    Below is the resistance calculation for this circuit:

ser(R[1],par(R[2],ser(par(R[3],R[5]),R[4])));

(R[1]*R[2]*R[3]+R[1]*R[2]*R[5]+R[1]*R[3]*R[4]+R[1]*R[3]*R[5]+R[1]*R[4]*R[5]+R[2]*R[3]*R[4]+R[2]*R[3]*R[5]+R[2]*R[4]*R[5])/(R[2]*R[3]+R[2]*R[5]+R[3]*R[4]+R[3]*R[5]+R[4]*R[5])

(3)






Download circuits.mw

See help on the  GraphTheory:-CycleBasis  command.

The dimension of the solution of a system is equal to the number of arbitrary constants in its solution. But in this example, the solution depends on an arbitrary smooth function  x[1](t) . But the dimension of the space of such functions is equal to infinity:

restart;

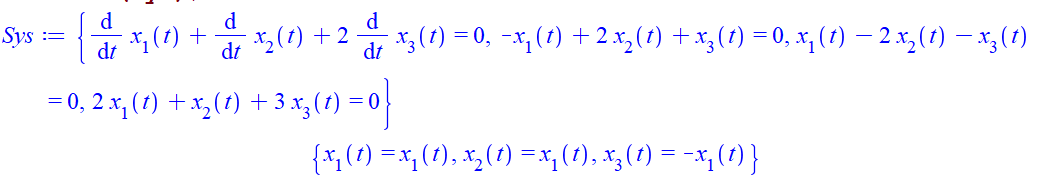

Sys:={diff(x[1](t),t)+diff(x[2](t),t)+2*diff(x[3](t),t)=0, x[1](t)-2*x[2](t)-x[3](t)=0, 2*x[1](t)+x[2](t)+3*x[3](t)=0, -x[1](t)+2*x[2](t)+x[3](t)=0};
dsolve(Sys);



The  P  procedure solves the problem:

P:=(A::Matrix)->nops(op(2,A));


Example of use:

A:=<0,1,0,1; -1,3,0,0; 0,0,1,0>;
P(A);

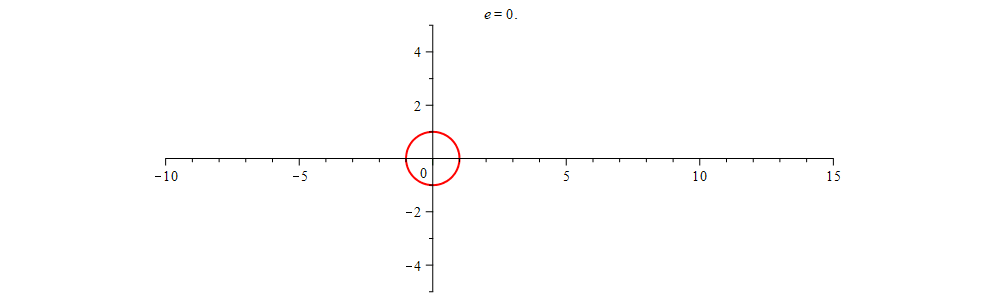

Here is another simple method using  plots:-animate  command. 40 frames for the ellipse (0<e<1, red color), 10 frames for the parabola (e=1, green color) and 40 frames for the hyperbola (1<e<=1.8, blue color) :

restart;
L:=[seq(n*0.025,n=0..39),1$10,seq(1.02+n*0.02,n=0..39)]:
plots:-animate(plot,[1/(1-e*cos(phi)), phi=0..2*Pi, color=piecewise(e<1,red,e=1,green,blue), thickness=2, coords=polar, scaling=constrained, view=[-10..15,-5..5], discont=true], e=L, size=[1000,300]);



restart;

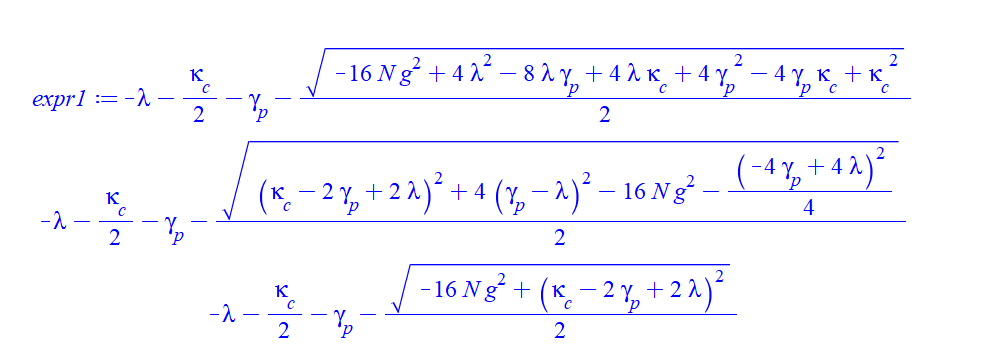

expr1:=-lambda-(1/2)*kappa__c-gamma__p-(1/2)*sqrt(-16*N*g^2+4*lambda^2-8*lambda*gamma__p+4*lambda*kappa__c+4*gamma__p^2-4*gamma__p*kappa__c+kappa__c^2);

subsindets(expr1, sqrt, t->Student:-Precalculus:-CompleteSquare(t));
expand(%, op([4,2,1,1], %));



restart;
'eval'(diff(f(r),r), r=C)=0;



Edit.
