When a procedure is generated by Localize it affects numeric output from the original Sol returned by dsolve.

If the procedure generated by Localize is ever used to change/set its own parameter then it affects Sol in different ways, according to whether the new parameter value was previously utilized in a call to Localize or not.

A call to query the current parameters, made to the result from Localize, contains the global rather than local names.

In other words, idiosyncratic (but not outright wrong or unrxplainable) behaviour follows if the Localize results are ever used to change their parameter value, or if the original solution from dsolve is utilized. And the remember table of Localize needs clearing if memory is to be recovered, even following unassignment of the Localization procedures and gc. All in all, I think that this not manageable by the common man. And the current behavior might change in the future.

foobar.mw

@bliengme You used = instead of := and so did not actually assign the result from solve.

Are you really using Maple version 16, or is it perhaps version 2016?

@Carl Love I'd like to address some of the points in your last Comment.

[edit: I now suspect that the in the paragraph below I may have been mistakenly responding to statements by Carl about code by Preben, and not by me. Upon re-reading, I now suspect that by "your code" Carl did not mean something that I wrote. But I'll let the paragraph stand...]
Yes, the whole point of my post what that, using a naive/obvious approach with the procedure returned by dsolve (numeric), one should never call plot3d like plot3d(Y(A,X), X= -2..2, A= -2..2, ...) where A is the parameter and X the independent variable (of the ODE). So my approach never "gets that wrong" since I am advocating never doing it. If one insists on doing it that way then it's not my approach. (I know that, by "your code" you are referring to the first argument passed to plot3d, the procedure. But I feel that the wording was imprecise enough that I can justify the preceding clarification for the sake of other readers.)

[edit: The rest of this Comment I'll leave, as I was planning on writing it anyway.]

When I wrote this post I was aware that with effort I could get a speedup with use of either remember tables or the instantiation being discussed. (My earlier response to you was about what I was interpreting as a particular way that I thought you wanted to get your hands on that. I now realize that I may have given the wrong impression. However, I did not ever consider the sscanf@sprintf approach, which is very ingenious.)

And, yes, I have been interpreting "instantiation" as used in Comments above to mean it in the particular way that you last described it, where one (if not the) key feature is that the instantiated proceduce will not be affected by changes to the parent (or spawning off other instantiation). The instantiation is done so as to obtain a solving procedure for a given value of the parameter, where that procedure persists independently.

But now I would like to state my position about the approaches of such instantiation, or remember table use. I consider them ingenious but inferior to the two main methods I've given which lay down the solution one parameter value at per slice. I'll list off three considerations that I consider important about such approaches:

1. They are much more complicated, to lay down in code and for most people to understand.
2. They create allocations which would eventually have to be cleaned up, to avoid the effect of a memory leak. While not terrible in itself, that is one more aspect of complication and possible burden during use.
3. There can be integration schemes for the IVP solver where, for a given parameter, it is possible to lay down the solution very efficiently (as independent variable/time t increases). That might not always be leveraged by use of plot3d, but I could be beneficial in use by plots:-odeplot (for 3D plot or 2D animation).

Over the years my viewpoint has shifted somewhat, against implementations which require memory management (either manual/custom, or by stock kernel functionality). I find that I now have a marked preference for structural efficiency, when other considerations are mostly the same. That's just a general comment about point 2) above.

So, it is my belief that use of the way that plot3d runs over the GRID points is important and germane.

I completely understand, if anyone wishes to disagree.

What I would really like to see, in the future, is for the plots:-odeplot command to get new and additional functionality that provided high efficiency for constructing 2D animations or 3D plots where the parameters of an IVP system were utilized for one of the independently changing values. I think that numeric ODE solving is important and common enough to warrant the effort.

I recall discussion about improving DEtools[DEplot] and/or plots:-odeplot wtih respect to using IVP parameters way back in 2011. There was also side talk about remember table use there and -- even if not as beneficial or sophisticated as your and Preben's comments above -- it's worth noting that it illustrated that manual management of memoization techniques can be a struggle for even strong non-expert Maple users. I think that any sophisticated approach to this whole issue, whether structural or memory oriented, is better positioned within a convenient interface of a stock Library command for the majority of users.

@Adam Ledger I don't think that you ard going to be able to get that to work satisfactorily. As mentioned, Maple does not ship with debug versions of binaries (executables and shared/dynamic libraries).

@Carl Love I don't know an clean and easy way to localize the dsolve solution procedures, when instantiated at particular parameter values.

Preben, perhaps I ought to have phrased it more like a description of the behaviour seen. That is to say, even when the parameter value is not being changed the mere act of setting it seems to degrade the performance of the mixed set-parameter & compute at specific variable-point. For all that I know, that aspect might be a bug. But it would still be natural and expected to have to generate the output values by walking the variable outermost and the parameter innermost.

Here is the shortest code I have to obtain the two possible choices for the parameter & variable, as first or second independent axis. It's not something I consider easy to find.

VofU0check := proc(par,var)
  if eval(U0,convert(WV('parameters'),`global`)) <> par then
    WV('parameters'=['U0'=par]);
  end if;
  WV(var);
end proc:

plot3d([(x,y)->y,(x,y)->x,VofU0check], U0lo..U0hi, tlo..thi,
       labels=["t","U0","V(t)"]);

plot3d(VofU0check, U0lo..U0hi, tlo..thi,
       labels=["U0","t","V(t)"]);

I am not aware of a way to call plots:-odeplot to force the much better performance here. If someone could show a way then I'd be delighted. But I suspect that plots:-odeplot has not been taught, yet, how to work best with these issues of instantiating parameters.

Upload an example Worksheet/Document that illustrates the problem.

Your description is far too vague. An actual worksheet would be better.

@tomleslie That's why I asked whether the initial conditions are right. I figured he didn't want the zero-solution.

I get some nice plots of V(t),  (3D, against U0 and t) with a few tweaks to the intial conditions (eg. derivatives at zero being small and positive, etc). That's with numeric solving.

But the OP seems to be expecting an explicit result for V(t) "in terms of U0". Who knows what else he'd do with such a monster (given slightly different initial conditions and a non-trivial solution, of course), other than plot it or compute it at numeric points. Could be tricky to find exactly, with parameters, float coefficients, etc.

Do you mean that you want to plot V(t) in terms of both U0 and t, as a 3D plot? If not, and you somehow want a 2D plot of V(t) in terms of U0, then what would be the value for t?

What is the value of A, which appears in your equations?

Are you 100% sure that the initial conditions are correct? Would you accept, say, D(r1)(0)=10^(-6) or greater?

@Kitonum aha. I was paying attention to the posted C code, and you at the title. It's interesting that his C code doesn't do what the title asks, for all negative real r.

@Kitonum Is that going to act the same as the C cast, for negative r?

As a side note, you should stop constructing expressions that involve both a symbol such as RK as well as the indexed name RK[1].  (Or K alongside K[1], say) It will lead to problems, down the road.

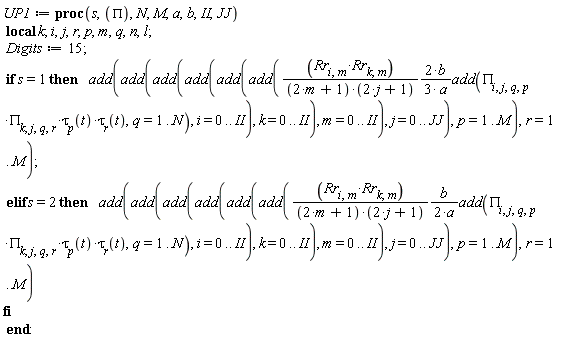

The OP uses a table Rr with a custom indexing function `index/xxx`. The only purpose of this seems to be to allow the typeset 2D math to have (subscripted) indexed name reference rather than function calls to RrProc.

That un-memoized use of the custom-indexing function inhibits performance considerably, which is magnified by having the references be done inside a six-fold nested add.

Let's assume that the procedure RrProc is to be kept. (It is inefficient. In the Comment/Reply above, I replaced it with a simple formula, for even better performance. But let's imagine that it really is needed, and that there is no possible improvement to the add-indexing i=m+1..II since RrProc just returns zero when i<=m.)

I use the randomize command to produce the same random data for each worksheet. Sorting the polynomial result shows that the results are all effectively the same. It's just performance which differs. I also bumped up the parameters II=8, JJ=8, and M=6 to make the example take longer.

I passed the PI-bar to UP1 instead of PI. I don't know what the OP intends. Otherwise the PI-bar is unused in his worksheet. The results differ from using PI, but the performance concerns are basically the same.

The best performance here entails:
- Use a non-custom-indexing table when calling UP1, which is created up front (outside all the add calls) from the custom-indexed table. This is important.

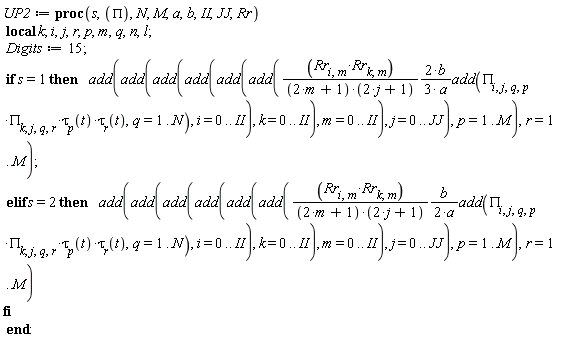

- Pass that plain table to the procedure UP1 which does the main job.
- Use Grid:-Set to tell the kernel to pass the plain table along, regardless.
This is the first attachment below.

Almost as good is too do as above, but without passing the plain table to the procedure UP1.

Also not bad, but not as good as the last, is to put option remember on the procedure RrProc which is called by the table custom-indexing-function.

Worst of all is to use the custom-indexing function table, without option rememeber on RrProc. That is like the OP's original.

The best improvement is from the original seq use and 21sec to the best variant with Grid:-Seq of 1.3sec.

soal-1_no_customindex_pass.mw

soal-1_no_customindex_no_pass.mw

soal-1_customindex_pass_remember.mw

soal-1_customindex_no_pass_remember.mw

soal-1_customindex_pass.mw

soal-1_customindex_no_pass.mw

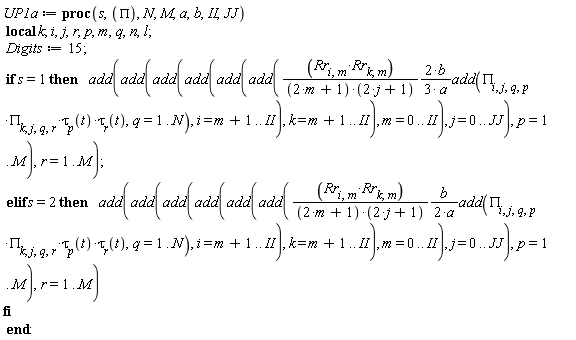

Further editing two of the add ranges to be i=m+1..II and k=m+1..II brings the best performance here down to 0.4sec. That's a 50-times speedup over the original, even while retaining the inefficient RrProc.

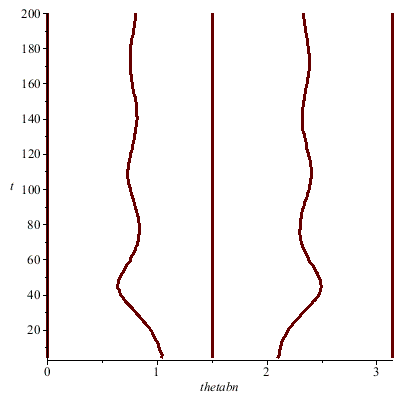

@JSalisbury Since solve doesn't produce a useful result when solving s for t, you can instead solve s for thetabn and reflect the plot.

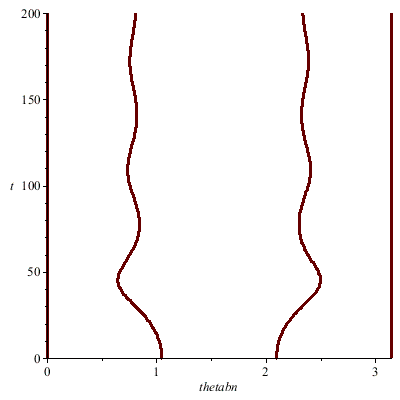

Or you can produce an implicit plot. (This is less efficient, and can sometimes require additional options to get a smooth result. It's usually preferable to produce an explicit plot if you can.)

Download implicit_plot_3.mw

@mehdibaghaee I don't think thay you should be very concerned about floating-point discrepencies between approaches if you can establish that it is small, say on the order of 10^(-Digits+1) or so, and decreases in magnitude as the working precision is increased. And that seems to be the case here. You can still use fnormal as a convenient way to gauge whether the differences are acceptable.

It is interesting that in at least Maple 2016.2 (your version) the kernel is able to pass along Rr -- as well as its indexing function -- to the distributed kernels automatically. It's also interesting that using Grid:-Set on `index/xxx` and RrProc decreases the benefit. Once those Grid:-Set calls are made both the version where Rr is passed as an extra argument, and not, see the decrease is benefit. The speedup obtained through use of Grid:-Seq is almost a factor of four over the use of serial seq. or about a factor of two if the Grid:-Set use is retained here. The kernel magic which figures out what assigned values in the parent kernel session need to be passed along to the child kernel sessions is subtle I believe. I've seen it change from release to release, mostly for the better. In the worksheet below I've commented out the version using Grid:-Set.

But I'd like to focus on what I've previously written about optimizing the serial code first, before parallizing.

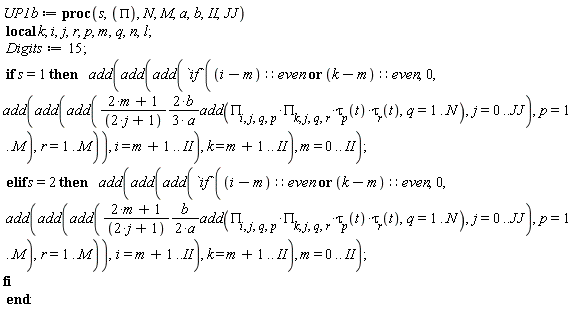

In the following attachment I looked at your RrProc procedure. It returns 0 (zero) if its first parameter i is larger than its second parameter m. So quite a few calls to RrProc can be avoided simply by making the add loops for i and k go from m+1..II instead of 0..II . That is done in variant UP1a in the attachment, and improves the timing by about a factor of three.

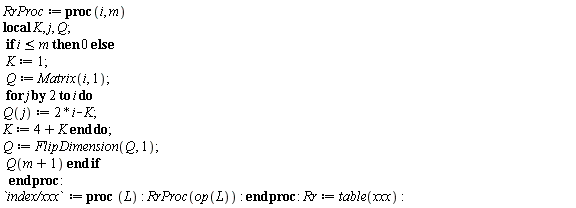

Now procedure RrProc is not efficient. It creates and populates a Vector, flips it, etc, only to return only one of its entries. It could be made more efficient. But the values that the procedure returns are just 0 (zero) if i-m is even, and just 2*m+1 otherwise. So that whole procedure can be eliminated, and a simple formula used instead. Doing so brings about another factor of three speedup.

So, in summary, that's about a factor of 4 by using Grid:-Seq, and about another factor of 9 by eliminating the overhead of calling RrProc inside the loop.

nb. It's difficult to know whether this is a partially concocted computation for illustration, or part of your actual, broader goal. For example, you call procedure UP with two different values of s. But the first result for s=1 is simply 4/3 the result for s=2. So, as it stands, there no real need for calling the UP procedure for both values of s.

Download soal-1_ac.mw
