@sand15

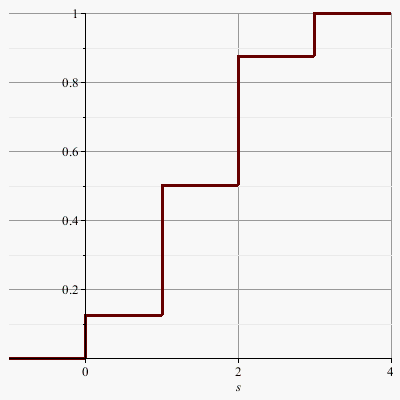

I did not intend the version in my first Reply as any kind of workaround. I added it because it shine a dim light on what might be going wrong internally. (Anyone who really wants to diagnose exactly how it goes wrong can enjoy debugging the object-oriented Statistics package here.) This happens to be what I tried first, while looking at the bug you've shown.

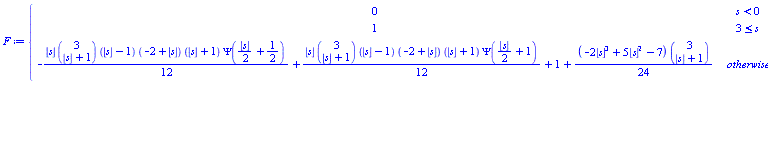

In the case that N is unassigned, both the effect of assumptions about s on the CDF result as well as the introduction of Psi calls, seem to hint that there may be some symbolic summation going on. That lead me to want to try controlling the summation manually.

Contrary to what you've writtten above, the inert option to the CDF command is documented. Supplying that option to CDF, with N unassigned, returned an inert Sum call that looked much better.

So then I applied the value command to that to see whether that would go amok, doing symbolic summation, but all that happened was the Sum became an unevaluated active sum call. This hints that CDF must be going about it somewhat differently.

Apart from the explicit value of 1 for s>3 I don't see why the Maple 2015 symbolic result is significantly better. I'd be interested in hearing why you think it might be so. (The extra value of 1 for the condition s>3 could be added programmatically, if one really needed it for visual insight.)  The expression I obtained does evaluate to 1 for s>3. I gave this as the result in my Answer.

There is often a distinction between doing the CDF computation symbolically for the purpose of further symbolic computation, and doing it for the purpose of getting insight from nature of the exact formula. If you think that a result such as vv showed is incorrect then it would help if you were more clear about which of those ways you found it lacking (I guess it is the second).

@Carl Love For a variety of situations the GUI holds a semantic "parsed meaning" of 2D Input. The need for that is somewhat related to the specifics of interoperability and communication between the kernel and the interface.

My main reason for not using 2D Input mode has always been that it is not WYSIWYH (What You See Is What You Have).

More specifically, there are many ways in which distinct statements and expressions get displayed the same, and there is no reliable/foolproof and easy way for me to ascertain the parsed meaning exactly.

Not pretty.

Download uglierbinomialcdf.mw

@Simwar That's a bug in the parsing of 2D Input.

In your 2D Input example the x appearing in the operator n->n>=x is being mis-parsed as the global name rather than a lexical (which should scope to the first parameter when run).

If you don't want to utilize a Code Edit Region, but wish to avoid the above 2D Input bug, then you can enter the definition of the procedure in an Execution Group, in 1D Maple Notation (plain text).

Download satisfies_scoping.mw

I have submitted a bug report.

See here which would be a suitable place for him to ask his question yet again. Also see here and here.

This member has a habit of re-posting essentially the same code and not explaining what he wants to get from it.

@Markiyan Hirnyk Yes, it is true that the documentation of the solve command is significantly behind its actual capabilities. But what I showed works too, and not just by chance as can be confirmed by thorough examination of the source.

The real option can quite often also (but not always, naturally) be used to good effect for a univariate trigonometric equation, sometimes when combined with the explicit and the allsolutions options. It is a good addition to one's arsenal for handling some classes of problem.

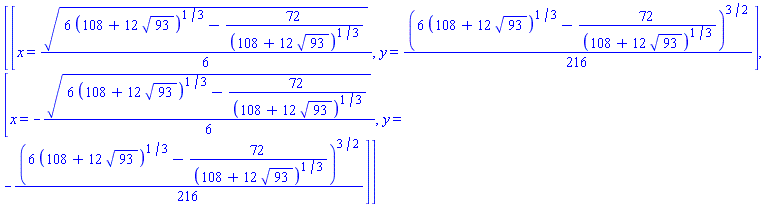

Here are two other ways to handle this particular example.

Download realsolvemore.mw

I consider RealDomain:-solve to be an approach which is in general weaker than the conglomeration of other approaches using :-solve (but not always -- there are exceptions to everything), because its implementation and fundamental design are not strong.

Perhaps the most important thing to note is that there is currently no command which can handle all the examples of exact symbolic real-solving currently handled by at least one method.

Do you mean that it exits?

Or do you just mean that it seems to hang, because you haven't yet entered end proc and so it's still waiting for additional input for the body or termination of the procedure?

@unproductive I've added a link in my Answer to the Programming Guide.

@Carl Love There are a few ways to get the desired result, sure. My main point for the OP was that assuming only r::real should not (in and of itself) be a way to get rid of the conjugate around r^(1/4).

Yes, int has not yet been taught to utilize the ranges as assumptions in all cases.

That includes the case of nested calls, where it's difficult for an inner call to know that it's inside an outer call. Putting special evaluation rules on the first parameter of int could help, so as to delay the inner call from evaluating, until the outer call could place assumptions, etc. But that kind of thing has some difficult challenges for Library code.

And so the contrasting behavior below is interesting, using Maple 2018.0.

restart;
Psi00:= exp(-r^2/2)/sqrt(Pi):

int(conjugate(Psi00*r^(1/4))*Psi00*r^(1/4)*r, [phi= 0..2*Pi, r= 0..infinity]):
lprint(%);
  (1/4)*Pi*2^(1/2)/GAMMA(3/4)

restart;
Psi00:= exp(-r^2/2)/sqrt(Pi):

int(int(conjugate(Psi00*r^(1/4))*Psi00*r^(1/4)*r, phi= 0..2*Pi), r= 0..infinity):
lprint(%);
  int(2*conjugate(exp(-(1/2)*r^2)*r^(1/4))*exp(-(1/2)*r^2)*r^(5/4), r = 0 .. infinity)

lprint(simplify(%));
  (1/4)*Pi*2^(1/2)/GAMMA(3/4)

ps. It's minor, but your code above has PI instead of Pi, in the assignment to Psi00.

I have learned this by experimenting.

That includes using the mouse to manually select and adjust the appearance of 2D Input (color, style, font), convert to "Atomic Identifier" via right-click, and then lprint. The resulting so-called TypeMK is an analogue of MathML, as are the function calls Typesetting:-mi, etc.

Another useful export is Typesetting:-Typeset which can convert an expression to the nested kind of function call that I used above. By examining the effect of color/font changes on the atomic identifiers I made I was able to guess how the function calls to Typesetting:-mi and friends might be altered in the result from Typesetting:-Typeset.

The Typesetting:-EV procedure seems to do something like cause a 1-level evaluation of its argument when passed to Typesetting:-Typeset. That allows processing of an expression assigned to a name.

Here is some fun. One could also construct procedures which target and replace the aspects altogether or individually.

Download Typesetting_misc.mw

@tomleslie I have never heard of a plan to document this functionality. It would be nice to have. It can be useful to do such things programmatically, for example in `print/...` extensions and ModulePrint and objects.

I'd like to clarify one aspect for the OP.

In the given examples the round brackets denote function application, and not indexing into the list.

Round brackets can denote indexing into Matrices, Arrays, and Vectors, but not into lists or sets.

@Carl Love

2) Yes, if the Matrix does not have the symmetric indexing-function then the type-check against 'Matrix(symmetric)' will, alas, get to some interpreted Library code.

restart;

#showstat( `type/rtable/TwoDim`, 147..161 );

stopat(`type/rtable/TwoDim`, 148):

type( Matrix([[1,2],[2,3]], shape=symmetric, datatype=float[8]),
      'Matrix(symmetric, datatype=float[8])' );

                    true

type( Matrix([[1,2],[2,3]], datatype=float[8]),
      'Matrix(symmetric, datatype=float[8])' );
false
`type/rtable/TwoDim`:
 148*      if dims[1] <> dims[2] then
               ...
           end if;

DBG> cont

                    true

There should be lots of ways to speed that up that mechanism, whether float[8] or not.

3) I added the conversion back to Fortran_order just because it's the default for float[8] Matrices, and the LDLT code constructs a new triangular[lower,unit] Matrix already, for the return value. Back in 1999 the accelerated BLAS only supported Fortran_order, and LAPACK (and NAG, at that time) was designed for it, which is why it was made the default for float[8] Matrices in Maple 6. Nowadays the Intel MKL has an additional  C_order API (and reasonable support for it). LinearAlgebra could be improved to call out to that MKL C-interface instead of making Fortran_order copies, when passed C_order Matrices. But until then... it's mostly better to have one's float[8] Matrices be Fortran_order.

@Rouben Rostamian

restart;

kernelopts(version);
    Maple 2018.1, X86 64 LINUX, Jun 8 2018, Build ID 1321769

s := x -> min(frac(x),1-frac(x)):
b := x -> sum(s(2^n*x)/2^n, n=0..4):

limit( ( b(x)-b(9.05) )/(x-9.05), x=9.05 );
                   0.

evalf(Limit( ( b(x)-b(9.05) )/(x-9.05), x=9.05 ));
               3.000000000

MultiSeries:-limit( ( b(x)-b(9.05) )/(x-9.05), x=9.05 );
                    3

foo := convert( ( b(x)-b(9.05) )/(x-9.05), rational, exact ):

lprint(foo);
  (min(1-frac(x),frac(x))+1/2*min(1-frac(2*x),frac(2*x))+1/4*min(1-
  frac(4*x),frac(4*x))+1/8*min(
  1-frac(8*x),frac(8*x))+1/16*min(1-frac(16*x),
  frac(16*x))-17/80)/(x-181/20)

MultiSeries:-limit( foo, x=905/100 );
                     3

evalf(Limit( foo, x=905/100 ));
                3.000000000

limit( foo, x=905/100 );
                     0

Using Maple 18.02 and 16.02 I get 3. from :-limit, but in Maple 2015.0 and 2015.2 and later I get 0.

@Carl Love Very nice. Vote up.

A few comments:

1) This relates only to the generation of the example Matrix A.
     For the call to RandomMatrix, it is quite a bit faster to use the syntax
     generator=0. .. 1. instead of generator=rand(0. .. 1).

2) The type-check in A::Matrix(symmetric, datatype= float[8]) on the first parameter of LDLT is, unfortunately, much slower than it ought to be in the case that the first (Matrix) argument happens to be symmetric in its values but does not actually have the symmetric indexing function. So it seems fair to pump in a shaped Matrix to LDLT. I see a timing improvement from about 2.12sec to about 1.56sec by that change of the input.

3) The compiled external function which does the Cholesky decomposition is actually DPOTRF from the Intel MKL, and not a generic LAPACK version such as NAG F07FDF. It is highly optimized to use SIMD or other fancy chipset extensions the MKL detects at runtime. But it is also tuned to minimize cache misses. One aspect of such optimization that can (sometimes) be partially achieved when using either Maple's Compiler or evalhf mode is improving the cache hits. The innermost loop of LDLT is the loop,
    for p to k1 do S:= S + A[i,p]*R[p] od
which accesses sucessive values along a row of the Matrix. Constructing the workspace Matrix AA of LDLT (which is passed as Matrix A of LDLT_internal) to be order=C_order means that its entries are stored by row in memory. This seems to improve the performance. For the 1024x1024 example, with shape=symmetric on the input Matrix, I see the timing improve from about 1.56sec to about 1.21sec.

LDLT_a.mw

@David Sycamore You can utilize commands which are members of packages by using a long form of the name, or by loading the package and then using the short form of the name.

The NumberTheory package is newer than the numtheory package.

Both of those packages allow the long form syntax package:-member as well as the long form package[member] . I prefer the former as simple, safe and unambiguous. The latter can run into name-space issues depending on the content, unless you do more typing to arrive at package[':-member'] .

restart;

NumberTheory:-PrimeCounting(31);
                               11
NumberTheory[PrimeCounting](31);
                               11
numtheory:-pi(31);
                               11
numtheory[pi](31);
                               11

restart;

with(NumberTheory):

PrimeCounting(31);
                               11

PrimeCounting(47);
                               15

restart;

with(numtheory):

pi(31);
                               11

pi(47);
                               15
