Hi Dear All,



I need to extract the coordinates from spacecurve commend. For example;



h3:=spacecurve([-x,-y,z],omega=ws..0,color=green,thickness=5):
h4:=spacecurve([-x,y,z],omega=ws..0,color=blue,thickness=5):

Where, omega is a parameter difinening x, y, z.

Hello Everyone;

Hope you are fine. I have set of following ODE's;

Every variable has two ODE's. I need to take one ODE for each variable. Is that any way?
I am waiting for your kind response.

Thanks

Question2.mw

The solution from LPSolve shown in the worksheet below is displayed very weirdly:

  1. The first element is rounded to 3 significant digits.
  2. The variable indices have decimal points.
  3. Zeros are displayed as just decimal points with no digit 0.

Closer inspection (with, say, lprint) will reveal that the weirdness is only with the prettyprinting; the actual entries are as expected.


restart:

<(kernelopts,interface)(version), interface~([prettyprint, typesetting])[]>;

Vector(4, {(1) = `Maple 2022.1, X86 64 WINDOWS, May 26 2022, Build ID 1619613`, (2) = `Standard Worksheet Interface, Maple 2022.1, Windows 10, May 26 2022 Build ID 1619613`, (3) = 2, (4) = extended})

(a,b,c):= (2,4,5):

X:= Matrix((a,b), symbol= x):
Y:= Matrix((b,c), symbol= y):
Z:= Matrix((a,c), symbol= z):

RegionC:= <5, 15, 8, 10, 15>:

RegionA:= <90, 75>:

RegionB:= <35, 20, 30, 15>:

Cost1:= <
    2, 1, 3/2,   3;
  5/2, 2, 7/2, 3/2
>:

Cost2:= <
    3/2, 4/5, 1/2, 3/2,   3;
      1, 1/2, 1/2,   1, 1/2;
      1, 3/2,   2,   2, 1/2;
    5/2, 3/2, 3/5, 3/2, 1/2
>:

Cost3:= <
    11/4, 7/2, 5/2, 3,   5/2;
       3, 7/2, 7/2, 5/2, 2
>:

Cost__Total:= (add@(add@`*`~)~)([Cost||(1..3)], [X,Y,Z]):

CapB:= add(X[i], i= 1..a) <=~ RegionB:

CapA:= add(<X|Z>[..,j], j= 1..b+c) <=~ RegionA:

ReqC:= add(<Y,Z>[i], i= 1..a+b) >=~ RegionC:

InEqOutB:= add(<X, -Y^%T>[i], i= 1..a+c) =~ 0:

Cons:= seq~({CapA, CapB, ReqC, InEqOutB}):

Sol:= Optimization:-LPSolve(Cost__Total, Cons, assume= nonnegative);

[103.800000000310, [x[1, 1] = HFloat(0.0), x[1, 2] = HFloat(20.000000000344205), x[1, 3] = HFloat(7.999999999311598), x[1, 4] = HFloat(0.0), x[2, 1] = HFloat(0.0), x[2, 2] = HFloat(0.0), x[2, 3] = HFloat(0.0), x[2, 4] = HFloat(15.000000000688408), y[1, 1] = HFloat(0.0), y[1, 2] = HFloat(0.0), y[1, 3] = HFloat(-1.7763568394002505e-15), y[1, 4] = HFloat(0.0), y[1, 5] = HFloat(0.0), y[2, 1] = HFloat(0.0), y[2, 2] = HFloat(15.0), y[2, 3] = HFloat(5.000000000344206), y[2, 4] = HFloat(0.0), y[2, 5] = HFloat(0.0), y[3, 1] = HFloat(5.000000000000002), y[3, 2] = HFloat(0.0), y[3, 3] = HFloat(0.0), y[3, 4] = HFloat(0.0), y[3, 5] = HFloat(2.9999999993115956), y[4, 1] = HFloat(0.0), y[4, 2] = HFloat(0.0), y[4, 3] = HFloat(2.9999999996557944), y[4, 4] = HFloat(0.0), y[4, 5] = HFloat(12.000000000688413), z[1, 1] = HFloat(0.0), z[1, 2] = HFloat(0.0), z[1, 3] = HFloat(0.0), z[1, 4] = HFloat(0.0), z[1, 5] = HFloat(0.0), z[2, 1] = HFloat(0.0), z[2, 2] = HFloat(0.0), z[2, 3] = HFloat(0.0), z[2, 4] = HFloat(10.0), z[2, 5] = HFloat(0.0)]]





Download BadLPSolveDisp.mw

I am reading some expressions from file.

In the file, it is written as GAMMA(-1,x). When read into Maple using the read file command, it shows as  1/x*Ei(2,x)

I know these are the same mathematically. But I am translating these expressions to sagemath. in sagemath, Ei only accepts one argument.

Now the translator sees Ei in the input, then it keeps it as Ei as it does not know it was the GAMMA with two arguments,  which gives an error when used by sagemath since sagemath only has the one argument version of Ei.

If Maple would keep GAMMA(-1,x) as is, then the translator will just translate it to gamma(-1,x) which works in sage.

To keep things simple, I was wondering if there an option to tell Maple to keep the input as GAMMA(-1,x) and not rewrite to Ei?

Otherwise I would have to now parse each Ei to see if it is the two argument version or the one argument version, and use gamma  for the 2 argument version to keep sage happy which will complicate things for me.

expr:=GAMMA(-1,x)

               Ei(2, x)/x

Maple 2022.1

restart;
with(plots);
with(plottools);
Vdot := proc (U, V)local i: add(U[i]*V[i], i = 1 .. 2) end proc:
dist := proc (M, N) sqrt(Vdot(expand(M-N), expand(M-N))) end proc:
ngon := n -> local i; [seq([cos(2*Pi*i/n), sin(2*Pi*i/n)], i = 1 .. n)]:
theta := (2*Pi)/5;
poly := [seq([cos(k*theta), sin(k*theta)], k = 1 .. 5), datatype = float];
Ii := [0, 1/2]:
H := [-1/4, 0]:
r := dist(Ii, H):
theta := (2*Pi)/5:
p1 := pointplot([seq([cos(k*theta), sin(k*theta)], k = 0 .. 5)], symbol = solidcircle, color = red, symbolsize = 10):
p2 := textplot([seq([cos(k*theta), sin(k*theta), cat("M", k)], k = 0 .. 4)], align = ["above", "right"]):
cir1 := circle([0, 0], 1/2, color = green,dashdot:):
cir2 := circle([-1/4, 0], r, color = black):
cir3:=circle([0,0],1,color=red):
display([p1, p2, cir1, cir2, cir3,polygonplot(poly, thickness = 5, color = blue, transparency = 0.95)], axes = normal);
Why this error , Thank you.

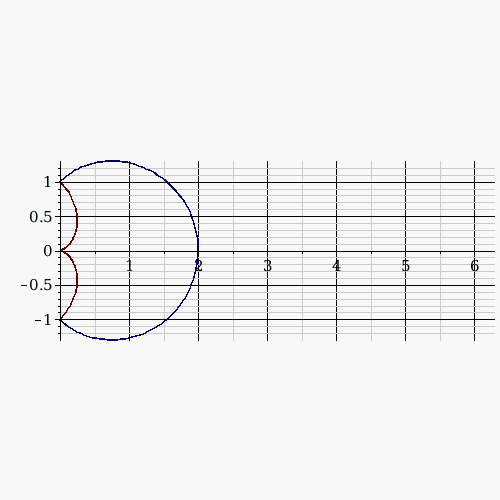

I am trying to rotate a region about the y-axis. However, entering axis=vertical rotates it about the z-axis. I have also tried interchanging the x and y values. However, it produces the same output. The left image is what I'd like to rotate about the y-axis. The code below is for the right image. How would I revolve this region about the y-axis? Please help.

VolumeOfRevolution(2*x^2 + 1, x = 0 .. 1, labels = [x, y, z], output = plot, axis = vertical, orientation = [270, 0, 90])



I am transitioning from Mathcad to Maple, and I am currently working on some code to do a Gage R&R study using ANOVA. The attached math is from the 4th edition of the MSA manual. I got it to work in Mathcad, although I had to adjust things since Mathcad does not support 3D matrices.

My input matrix is a 2D matrix in which each cell contains a vector of measurements. In Maple, I seem to be able to make a 3D array with my data (if it is easier).

I have searched for a couple days for the right syntax. I am able to get the "right" number for SSA using my 2D Mathcad matrix--at least it is really close--but the other varibles are woefully off.

I would appreciate it if someone could at least point me in the right direction. Thanks.

Jno.

Hello Everyone;Hope you are fine. I am trying to convert the nonlinear system of ODE's into matric form using the following comand but not working it.



Kindly help me to do this. The cose is pasted and also attached. I am waiting for your kind response.

Thanks.

Question1_NEW.mw




restart; with(PDEtools, Solve); with(LinearAlgebra); with(plots); with(plottools); printlevel := 2

NULL

ZETA[0] := proc (t) options operator, arrow; 0 end proc:

sys222 := [(3/16)*Pi*C[2, 1](t)+(3/4)*Pi*C[1, 1](t)+diff(C[1, 1](t), t) = 0, 5*Pi*C[2, 2](t)+20*Pi*C[1, 2](t)+diff(C[1, 2](t), t) = 0, 800*ZETA[0](t)*C[1, 1](t)*Pi+(3/4)*Pi*C[2, 1](t)+(3/4)*Pi*C[1, 1](t)+diff(C[2, 1](t), t) = 0, 4320*ZETA[1](t)*C[1, 1](t)*Pi+4320*ZETA[0](t)*C[1, 2](t)*Pi+20*Pi*C[2, 2](t)+20*Pi*C[1, 2](t)+diff(C[2, 2](t), t) = 0, diff(ZETA[1](t), t)+(1/3)*C[2, 1](t) = 0, diff(ZETA[2](t), t)+(1/3)*C[2, 2](t) = 0]

[(3/16)*Pi*C[2, 1](t)+(3/4)*Pi*C[1, 1](t)+diff(C[1, 1](t), t) = 0, 5*Pi*C[2, 2](t)+20*Pi*C[1, 2](t)+diff(C[1, 2](t), t) = 0, (3/4)*Pi*C[2, 1](t)+(3/4)*Pi*C[1, 1](t)+diff(C[2, 1](t), t) = 0, 4320*ZETA[1](t)*C[1, 1](t)*Pi+20*Pi*C[2, 2](t)+20*Pi*C[1, 2](t)+diff(C[2, 2](t), t) = 0, diff(ZETA[1](t), t)+(1/3)*C[2, 1](t) = 0, diff(ZETA[2](t), t)+(1/3)*C[2, 2](t) = 0]

(1)

var1 := {C[1, 1](t), C[1, 2](t), C[2, 1](t), C[2, 2](t), ZETA[1](t), ZETA[2](t)};

{C[1, 1](t), C[1, 2](t), C[2, 1](t), C[2, 2](t), ZETA[1](t), ZETA[2](t)}

(2)

f, diffs := eval(GenerateMatrix(`~`[`-`](`~`[rhs](sys222), `~`[lhs](sys222)), var1))

f, diffs := Matrix(6, 6, {(1, 1) = -(3/4)*Pi, (1, 2) = 0, (1, 3) = -(3/16)*Pi, (1, 4) = 0, (1, 5) = 0, (1, 6) = 0, (2, 1) = 0, (2, 2) = -20*Pi, (2, 3) = 0, (2, 4) = -5*Pi, (2, 5) = 0, (2, 6) = 0, (3, 1) = -(3/4)*Pi, (3, 2) = 0, (3, 3) = -(3/4)*Pi, (3, 4) = 0, (3, 5) = 0, (3, 6) = 0, (4, 1) = 0, (4, 2) = -20*Pi, (4, 3) = 0, (4, 4) = -20*Pi, (4, 5) = 0, (4, 6) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = -1/3, (5, 4) = 0, (5, 5) = 0, (5, 6) = 0, (6, 1) = 0, (6, 2) = 0, (6, 3) = 0, (6, 4) = -1/3, (6, 5) = 0, (6, 6) = 0}), Vector(6, {(1) = diff(C[1, 1](t), t), (2) = diff(C[1, 2](t), t), (3) = diff(C[2, 1](t), t), (4) = 4320*ZETA[1](t)*C[1, 1](t)*Pi+diff(C[2, 2](t), t), (5) = diff(ZETA[1](t), t), (6) = diff(ZETA[2](t), t)})

(3)

NULL




Download Question1_NEW.mw

Hhow can i solve R it says here root of

Calculate.mws

Good day.

I am working on a network flow problem that uses a linear programming (simplex) technique.The flow is directed across 3 regions (a, b, and c) and there are 2 nodes within region a, 4 nodes in region b, and 5 nodes in region c.

I wish to determine the minimum cost from regions a to c and from regions b to c that satisfies the requirement of each of the 5 nodes in region c. The objective and constraints are constructed and Maple produces the minimum solution (see attached). While the output is useful when the number of nodes is small, I would like to extend this to a larger-scale case and so the output would need to be more user-friendly / graphic.

I have 2 questions -

1. Does anyone know a way to attach labels for each region and each node to these solution matrices?
    For instance -  the first matrix, x, specifies a quantity of 2,000 that flows from node #1 in region a to node #2 in region b
2. Is it possible to produce a network graph showing the directed flow from each region and from node to node?

Thanks to all for reading this!

MaplePrimes_Network.mw

I'm displaying several lines of equations that are all pretty similar and sometimes maple changes the order making it look unpleasent. e.g., the equations are essentially of the form a - b and sometimes maple will output -b + a

If I do sort(E) then it prints them all as -b+a and I cannot get this reverse no matter what options I try

I can do op(E) and it breaks up the expression in to terms but add(op(E)) just ends up doing the same out of order expression.

%+`(seq(Reverse([op(E))])));

essentially gives me what I want, surely there is an easier and more robust way?

How do you apply colors to an entire solid of revolution? I can't seem to color the bases of a disk. Please help.

Here is what I have. I would like the entire solid to be the same color,transparency,etc.

v := VolumeOfRevolution(4, x = 1 .. 2, volumeoptions = [color = blue, transparency = 0.6], orientation = [270, 0, 15], view = [0 .. 3, -5 .. 5, -5 .. 5], labels = [x, y, z], output = plot, axis = horizontal, scaling = constrained)

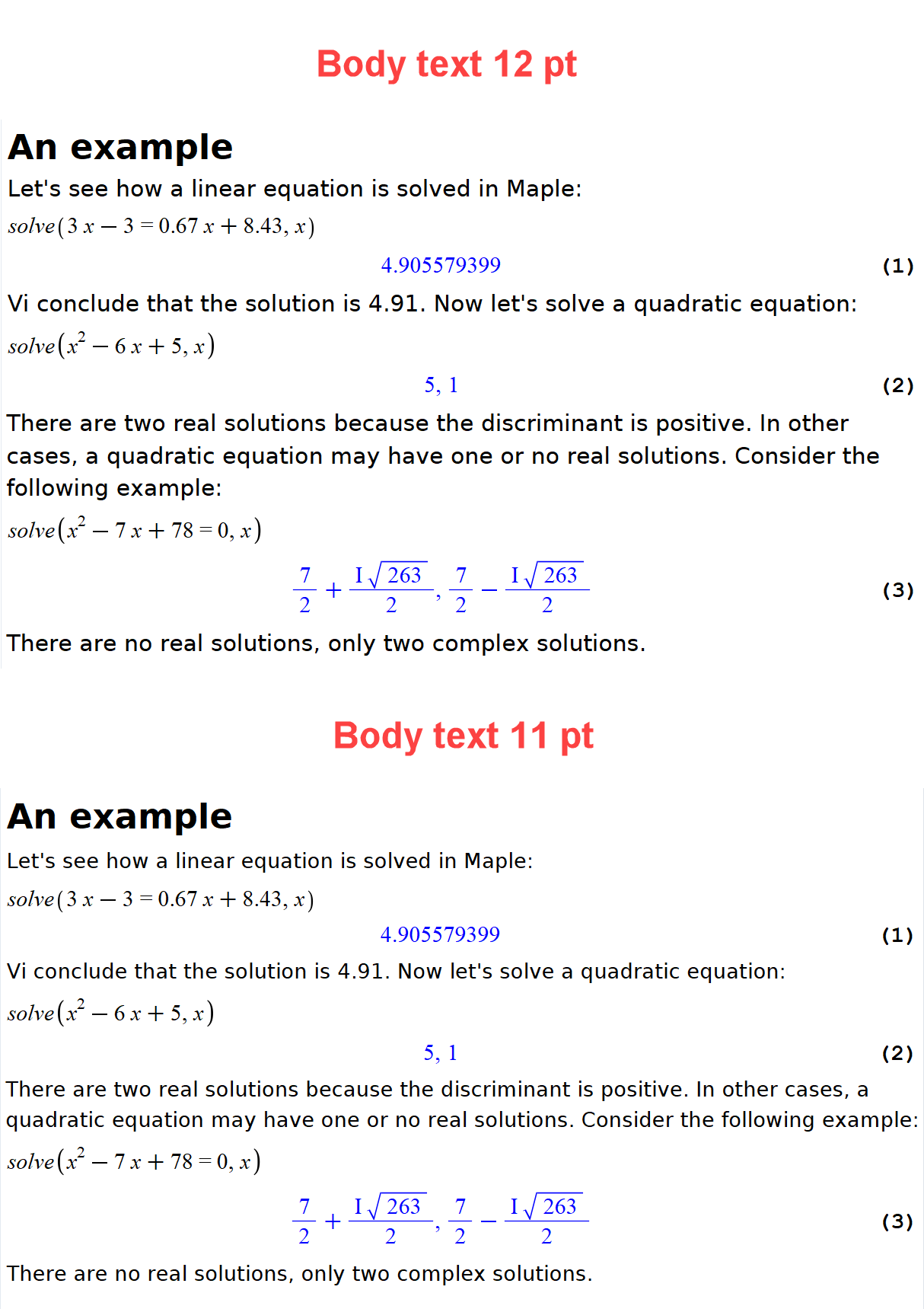

I'd like to print a high res and quality worksheet but maple has very poor printing.

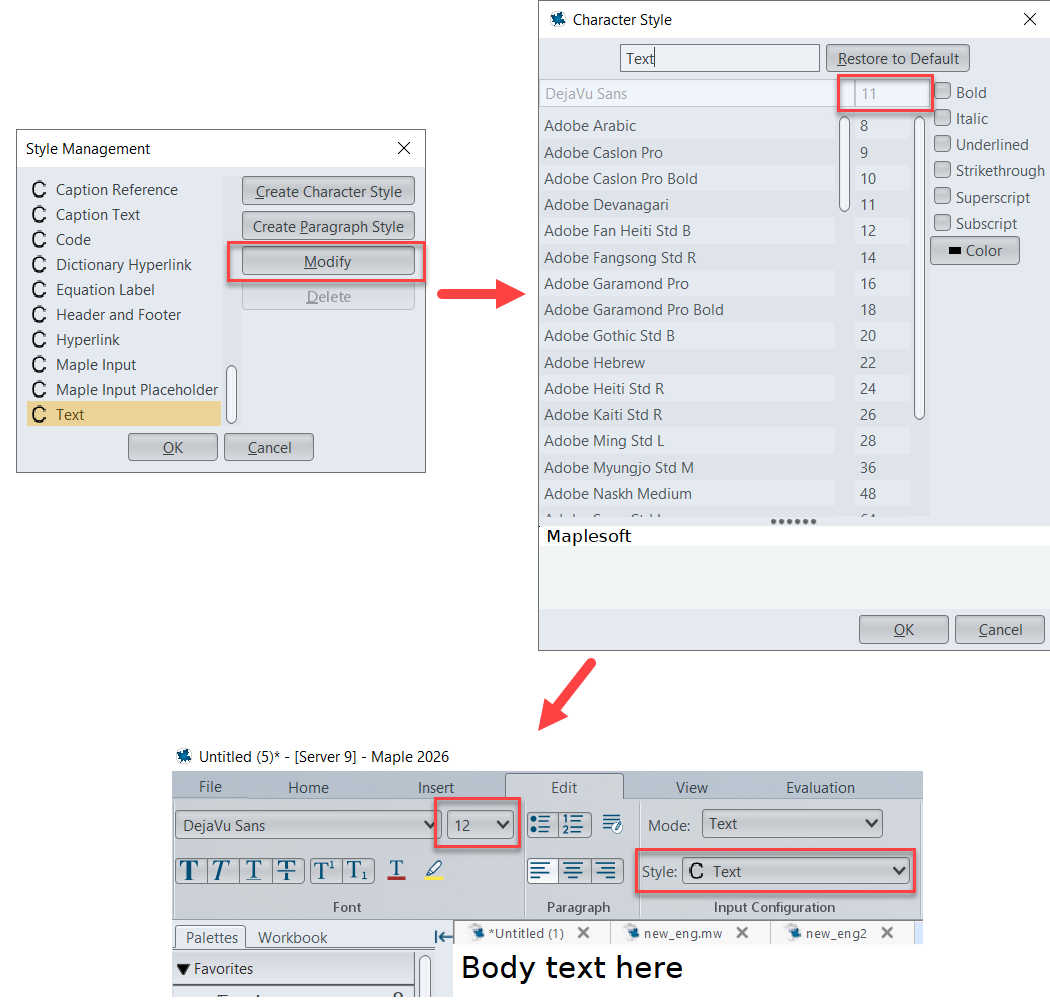

 I'd like to change the font so I can print more text. I'd like to change the dpi of the print to get higher quality.

Right now I'm having to print screen then scale in photoshop just to get a halfway decent print. I don't want pages of wrapped text that is very confusing to view. If I zoom out all the way on the worksheet I can almost get what I want as far as the size and wrapping(I want to avoid wrapping and there seems to be no way to turn this "feature" off). Of course when I zoom out and use print screen the quality is extremely low due to resolution issues. [So "zooming out" let's me stuff most of the data in to view that I want but then when I use print screen to capture it the quality is so low as not to be useable due to the dpi issue. Of course if I use any of maples printing "features" it will ignore the zoom scaling so as to be useless]

The only thing I can see on how to solve this issue is to save to latex and modify the latex. The problem is that maple puts a lot of junk formatting in the latex to make the wrapping look the same which is exactly what I do not want.

Maple has a "copy as image" but this doesn't seem to do anything. The printing of Maple really needs to be worked on. It's so limited to be almost useless.

Why solutions (5) and (6) are different? The solution (5) is obtained by putting f=0 of the series, while (6) is the result by taking limit at f->0.

check.mw

I want to know if it is possible to use the declare command from the PDETools package for a function

f(x,y,z)

and still, having the notation $\frac{\partial f}{\partial x}$ instead of $f_x$ for the Maple command %diff(f(x,y,z),x)

Thanks !

Kevin
