Question: Can Maple represent 2D density plots?

Question:Can Maple represent 2D density plots?

mmcdara 6760 Maple
plotting statistics density
November 24 2020
1

Suppose you do this


restart:
with(plots):
with(Statistics):
A := Sample(RandomVariable(Normal(0, 1)), 10^4):
B := Sample(RandomVariable(Normal(0, 1)), 10^4):
ScatterPlot(A, B, symbol=point);

The plot shows a greater density of dots around (0, 0) and they become increasingly sparse as one moves away from (0, 0).
A pretty way to represent such clouds is to do "2D density plots".
You will find some example from R here  2d-density-plot-with-ggplot2.html

For the moment I do something like this (which is to be adpated for almost any particular case).
My main question is: do recent versions of MAPLE possess something similar to R's features?


>

restart:
>

interface(version);

`Standard Worksheet Interface, Maple 2015.2, Mac OS X, December 21 2015 Build ID 1097895`

 (1)
>

with(Statistics):
>

UseHardwareFloats := false:

N := 10^5:
A := Sample(RandomVariable(BetaDistribution(2, 6)), N):
B := Sample(RandomVariable(BetaDistribution(6, 2)), N):

nb := 50:

mA := min(A):
hA := Range(A)/(nb-1):
mB := min(B):
hB := Range(B)/(nb-1):

cA := floor~((A-~mA)/~hA)+~1:
cB := floor~((B-~mB)/~hB)+~1:

NP := Matrix(nb$2, 0):
for n from 1 to N do
  NP[cA[n], cB[n]] := NP[cA[n], cB[n]]+1
end do:

NP:

>

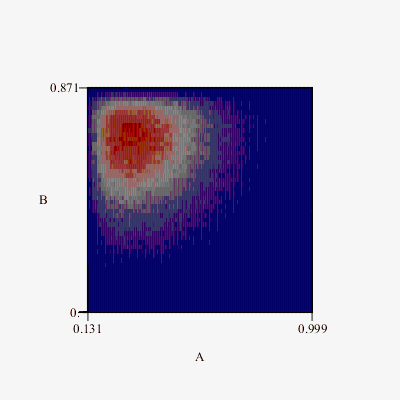

plots:-matrixplot(
  NP,
  heights=histogram,
  colorscheme=["Blue", "White", "Red"],
  orientation=[270, 0, 0],
  style=patchnogrid,
  lightmodel=none,
  labels=["A", "B", ""],
  axis[1]=[tickmarks=[nb+1=max(B), 1=mB]],
  axis[2]=[tickmarks=[nb+1=max(A), 1=mA]]
)


>






Download 2D_density_plot.mw
