Question: Do you know why increasing the number of applications of trapezoidal rule results infinity and imaginary part?

Question:Do you know why increasing the number of applications of trapezoidal rule results infinity and imaginary part?

mehdibgh 240 Maple 2016
integration numeric romberg
June 11 2022
0

Do you know why increasing the number of applications of trapezoidal rule results infinity and imaginary part?

I want get result for Romberg Integration Method with 6 Applications of Trapezoidal Rule.

>

restart
>

with(Student[NumericalAnalysis]):
>

``
>

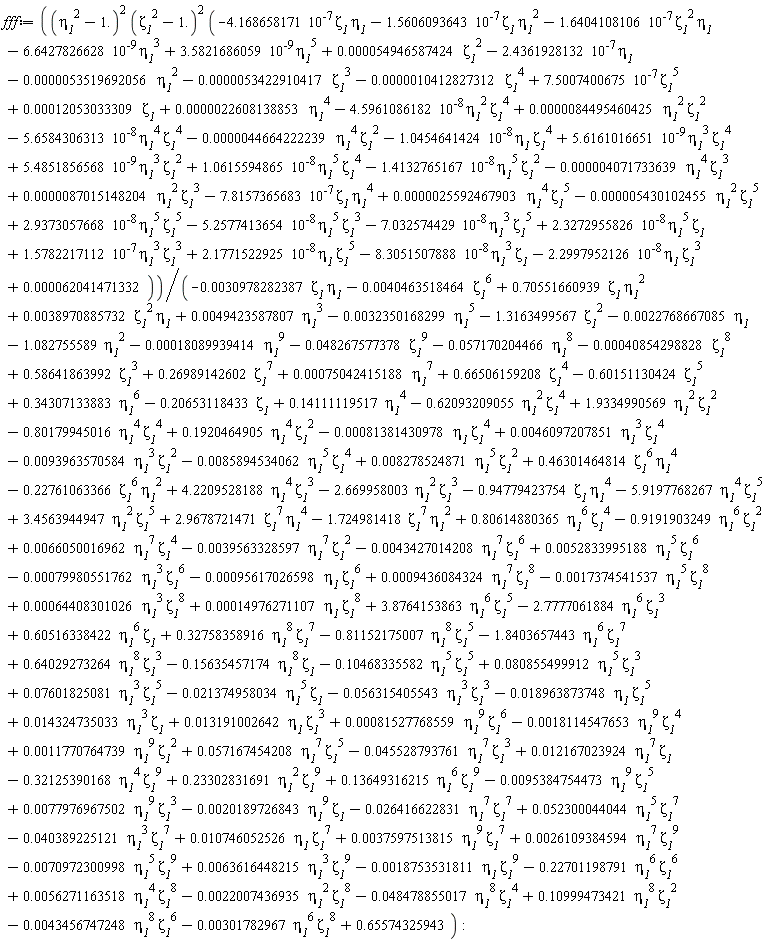

fff := (eta__1^2-1.)^2*(zeta__1^2-1.)^2*(-5.6584306313*10^(-8)*eta__1^4*zeta__1^4-1.0454641424*10^(-8)*eta__1*zeta__1^4+5.6161016651*10^(-9)*eta__1^3*zeta__1^4+1.0615594865*10^(-8)*eta__1^5*zeta__1^4+5.4851856568*10^(-9)*eta__1^3*zeta__1^2-1.4132765167*10^(-8)*eta__1^5*zeta__1^2-7.8157365683*10^(-7)*zeta__1*eta__1^4+2.9373057668*10^(-8)*eta__1^5*zeta__1^5-7.032574429*10^(-8)*eta__1^3*zeta__1^5-5.2577413654*10^(-8)*eta__1^5*zeta__1^3+2.3272955826*10^(-8)*eta__1^5*zeta__1+1.5782217112*10^(-7)*eta__1^3*zeta__1^3+2.1771522925*10^(-8)*eta__1*zeta__1^5-8.3051507888*10^(-8)*eta__1^3*zeta__1-2.2997952126*10^(-8)*eta__1*zeta__1^3+0.22608138853e-5*eta__1^4-0.53519692056e-5*eta__1^2+0.62041471332e-4+0.54946587424e-4*zeta__1^2-0.10412827312e-5*zeta__1^4-0.53422910417e-5*zeta__1^3+0.12053033309e-3*zeta__1-4.5961086182*10^(-8)*eta__1^2*zeta__1^4-1.6404108106*10^(-7)*zeta__1^2*eta__1-1.5606093643*10^(-7)*zeta__1*eta__1^2-4.168658171*10^(-7)*zeta__1*eta__1-0.5430102455e-5*eta__1^2*zeta__1^5+0.87015148204e-5*eta__1^2*zeta__1^3+0.25592467903e-5*eta__1^4*zeta__1^5-0.4071733639e-5*eta__1^4*zeta__1^3-0.44664222239e-5*eta__1^4*zeta__1^2+0.84495460425e-5*eta__1^2*zeta__1^2+7.5007400675*10^(-7)*zeta__1^5-6.6427826628*10^(-9)*eta__1^3+3.5821686059*10^(-9)*eta__1^5-2.4361928132*10^(-7)*eta__1)/(-0.32350168299e-2*eta__1^5-0.40854298828e-3*zeta__1^8-0.57170204466e-1*eta__1^8+.26989142602*zeta__1^7+.34307133883*eta__1^6+.14111119517*eta__1^4-0.48267577378e-1*zeta__1^9-1.082755589*eta__1^2-1.3163499567*zeta__1^2+0.75042415188e-3*eta__1^7-0.40463518464e-2*zeta__1^6+.66506159208*zeta__1^4+.58641863992*zeta__1^3-0.18089939414e-3*eta__1^9-.60151130424*zeta__1^5+0.49423587807e-2*eta__1^3-0.22768667085e-2*eta__1-.20653118433*zeta__1-.15635457174*eta__1^8*zeta__1+.64029273264*eta__1^8*zeta__1^3-1.8403657443*eta__1^6*zeta__1^7-0.48478855017e-1*eta__1^8*zeta__1^4-0.22007436935e-2*eta__1^2*zeta__1^8+0.56271163518e-2*eta__1^4*zeta__1^8-.22701198791*eta__1^6*zeta__1^6-0.18753531811e-2*eta__1*zeta__1^9+0.63616448215e-2*eta__1^3*zeta__1^9-0.70972300998e-2*eta__1^5*zeta__1^9+0.26109384594e-2*eta__1^7*zeta__1^9+0.37597513815e-2*eta__1^9*zeta__1^7-.81152175007*eta__1^8*zeta__1^5+.32758358916*eta__1^8*zeta__1^7+.60516338422*eta__1^6*zeta__1-2.7777061884*eta__1^6*zeta__1^3+3.8764153863*eta__1^6*zeta__1^5+0.14976271107e-3*eta__1*zeta__1^8+0.64408301026e-3*eta__1^3*zeta__1^8-0.17374541537e-2*eta__1^5*zeta__1^8+0.9436084324e-3*eta__1^7*zeta__1^8-0.95617026598e-3*eta__1*zeta__1^6-0.79980551762e-3*eta__1^3*zeta__1^6-0.43427014208e-2*eta__1^7*zeta__1^6+0.52833995188e-2*eta__1^5*zeta__1^6-0.39563328597e-2*eta__1^7*zeta__1^2-0.30978282387e-2*zeta__1*eta__1+3.4563944947*eta__1^2*zeta__1^5-2.669958003*eta__1^2*zeta__1^3-5.9197768267*eta__1^4*zeta__1^5+4.2209528188*eta__1^4*zeta__1^3+.1920464905*eta__1^4*zeta__1^2+1.9334990569*eta__1^2*zeta__1^2+0.66050016962e-2*eta__1^7*zeta__1^4+.80614880365*eta__1^6*zeta__1^4-.9191903249*eta__1^6*zeta__1^2-1.724981418*zeta__1^7*eta__1^2+2.9678721471*zeta__1^7*eta__1^4-.94779423754*zeta__1*eta__1^4+.46301464814*zeta__1^6*eta__1^4-.22761063366*zeta__1^6*eta__1^2-0.85894534062e-2*eta__1^5*zeta__1^4+0.8278524871e-2*eta__1^5*zeta__1^2+0.46097207851e-2*eta__1^3*zeta__1^4-0.93963570584e-2*eta__1^3*zeta__1^2-0.81381430978e-3*eta__1*zeta__1^4-.62093209055*eta__1^2*zeta__1^4-.80179945016*eta__1^4*zeta__1^4+.70551660939*zeta__1*eta__1^2+0.38970885732e-2*zeta__1^2*eta__1+0.10746052526e-1*eta__1*zeta__1^7-0.40389225121e-1*eta__1^3*zeta__1^7+0.52300044044e-1*eta__1^5*zeta__1^7+.10999473421*eta__1^8*zeta__1^2-0.45528793761e-1*eta__1^7*zeta__1^3+0.57167454208e-1*eta__1^7*zeta__1^5+0.11770764739e-2*eta__1^9*zeta__1^2-0.18114547653e-2*eta__1^9*zeta__1^4+0.81527768559e-3*eta__1^9*zeta__1^6+0.13191002642e-1*eta__1*zeta__1^3+0.14324735033e-1*eta__1^3*zeta__1-0.18963873748e-1*eta__1*zeta__1^5-0.56315405543e-1*eta__1^3*zeta__1^3-0.21374958034e-1*eta__1^5*zeta__1+0.7601825081e-1*eta__1^3*zeta__1^5+.65574325943+0.80855499912e-1*eta__1^5*zeta__1^3-.10468335582*eta__1^5*zeta__1^5-0.26416622831e-1*eta__1^7*zeta__1^7-0.20189726843e-2*eta__1^9*zeta__1+0.77976967502e-2*eta__1^9*zeta__1^3-0.95384754473e-2*eta__1^9*zeta__1^5+.13649316215*eta__1^6*zeta__1^9+.23302831691*eta__1^2*zeta__1^9-.32125390168*eta__1^4*zeta__1^9+0.12167023924e-1*eta__1^7*zeta__1-0.301782967e-2*eta__1^6*zeta__1^8-0.43456747248e-2*eta__1^8*zeta__1^6):
>

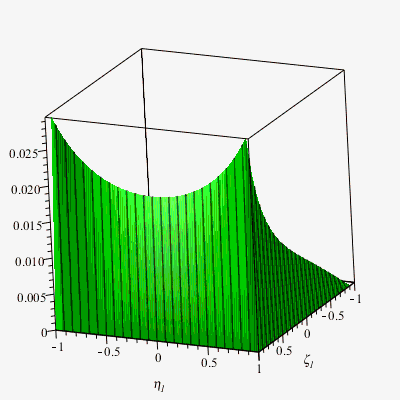

plot3d(sqrt(fff), zeta__1 = -1 .. 1, eta__1 = -1 .. 1, color = green)


>

``
>

Quadrature(Quadrature(sqrt(fff), zeta__1 = -1 .. 1, method = romberg[3]), eta__1 = -1 .. 1, method = romberg[3])

0.2745463666e-1+0.*I

 (1)
>

Student:-NumericalAnalysis:-Quadrature(Student:-NumericalAnalysis:-Quadrature(sqrt(fff), zeta__1 = -1 .. 1, method = romberg[4]), eta__1 = -1 .. 1, method = romberg[4])

0.3314502549e-1+0.*I

 (2)
>

Student:-NumericalAnalysis:-Quadrature(Student:-NumericalAnalysis:-Quadrature(sqrt(fff), zeta__1 = -1 .. 1, method = romberg[5]), eta__1 = -1 .. 1, method = romberg[5])

0.3621732017e-1+0.*I

 (3)
>

Student:-NumericalAnalysis:-Quadrature(Student:-NumericalAnalysis:-Quadrature(sqrt(fff), zeta__1 = -1 .. 1, method = romberg[6]), eta__1 = -1 .. 1, method = romberg[6])

Float(undefined)+Float(undefined)*I

 (4)
>

``

Download question.mw
