@mmcdara  Sir i got it . thank you ...

Aung 65
November 19 2024
0 0

@mmcdara
Sir i got it . thank you for your checkpoint...these help me.

@mmcdara sir i check math and get a...

Aung 65
November 19 2024
0 0

@mmcdara sir i check math and get a little simple function but i have to use this function in order to compatiable previous calculation
can you check please



>

restart;
>

with(Statistics):with(plots):with(Optimization):with(LinearAlgebra):
>


# given data from strain rate curve
E_0[theta] := 7.883352314*10^9;
alpha[theta]:= 0.982

7883352314.



.982

 (1)
>


# experimental creep data under 44 at 100 degree celcius
c_strain := Vector ([<<0>,<0.0284698>,<0.0533808>,<0.0782918>,<0.0996441>,<0.124555>,<0.142349>,<0.156584>,<0.16726>,<0.177936>,<0.181495>,<0.188612>,<0.192171>,<0.19573>,<0.19573>,<0.202847>,<0.206406>,<0.206406>,<0.209964>,<0.209964>,<0.209964>,<0.206406>,<0.209964>>]):

c_time := Vector ([<<0>,<0>,<0.048>,<0.192>,<0.352>,<0.544>,<0.704>,<0.896>,<1.088>,<1.312>,<1.52>,<1.76>,<1.984>,<2.208>,<2.464>,<2.736>,<3.088>,<3.392>,<3.664>,<4.016>,<4.352>,<4.592>,<4.832>>]):
sigma[0] := 44*10^6;
epsilon[0] := sigma[0]/E_0[theta];

44000000



0.5581381911e-2

 (2)
>


# change vector to list
c_strain := convert(c_strain,list):
c_time := convert(c_time,list):

# extract zero from list
c_strain := c_strain [2..-1];
c_time := c_time [2..-1];

[0.284698e-1, 0.533808e-1, 0.782918e-1, 0.996441e-1, .124555, .142349, .156584, .16726, .177936, .181495, .188612, .192171, .19573, .19573, .202847, .206406, .206406, .209964, .209964, .209964, .206406, .209964]



[0, 0.48e-1, .192, .352, .544, .704, .896, 1.088, 1.312, 1.52, 1.76, 1.984, 2.208, 2.464, 2.736, 3.088, 3.392, 3.664, 4.016, 4.352, 4.592, 4.832]

 (3)
>


# for further calculation need to know how many elements are in the list
M := nops(c_strain);
N := nops(c_time);

22



22

 (4)
>


# constitutive equation
creep_strain := proc(t)
local i;
options operator, arrow;
epsilon[0]*(1 + alpha[theta]*add(B[i](-1+exp(-beta[i]*t)),i=1..3))
end proc;

proc (t) local i; options operator, arrow; epsilon[0]*(1+alpha[theta]*add(B[i](-1+exp(-beta[i]*t)), i = 1 .. 3)) end proc

 (5)
>


#define objective function

Digits := 9:
obj := add(
         (
           creep_strain(c_time[j])
           -
           c_strain[j]
         )^2
         , j=1..N
       ):
>


# curve fitting
opt := NLPSolve(obj,
{
  beta[1] >= 0,
    beta[2] >= 0,
    beta[3] >= 0,
    B[1] >= 0,
    B[2] >= 0,
    B[3] >= 0
}
);

Warning, no iterations performed as initial point satisfies first-order conditions



[.517167063500154400, [B[1] = HFloat(1.0), B[2] = HFloat(1.0), B[3] = HFloat(1.0), beta[1] = HFloat(1.0), beta[2] = HFloat(1.0), beta[3] = HFloat(1.0)]]

 (6)
>

# plot the result
display(
   ScatterPlot(c_time, c_strain, symbol=circle, color=blue),

  plot(eval(creep_strain(t), opt[2]), t=0.00..max(c_time), color=black)
)


>



>






Download at_44_Mpa_at_100C.mw

@acer thank you sir..it's indee...

Aung 65
November 17 2024
0 0

@acer
thank you sir..it's indeed like this..can you give me a fully programmatic form. i can learn myself for the same problem.
because i have another problem multiply by 1/tau  , not tau ...like this
creep_integral_sol.mw

>

restart:
>



>

inte_eq := int(-(sum(B[i]*beta[i]* exp(-beta[i] * (t-tau))*(1/tau),i=1..n)),tau=0..t);

int(-(sum(B[i]*beta[i]*exp(-beta[i]*(t-tau))/tau, i = 1 .. n)), tau = 0 .. t)

 (1)




Download creep_integral_sol.mw

@janhardo Sir i want symbolic analy...

Aung 65
November 17 2024
0 0

@janhardo
Sir i want symbolic analytic solution for that integration like in pencil and paper using integration by part or whatever method used..i need fully code to get analytic solution.
this expression is  a part of stress-strain constitutive equation under creep loading....if i get symbolic solution of this integral
i can use curve fitting to my modeling.

actually i miss the tau  in the e.....

Aung 65
November 16 2024
0 0

actually i miss the tau in the expression so ..it doesn't seem like using integration by part is not valid...here is the right expression
can you check me please.
there is tau in the equation.

>

restart:
>



>

inte_eq := int(-(sum(B[i]*beta[i]* exp(-beta[i] * (t-tau))*tau,i=1..n)),tau=0..t);

int(-(sum(B[i]*beta[i]*exp(-beta[i]*(t-tau))*tau, i = 1 .. n)), tau = 0 .. t)

 (1)

i try to solve using integration by part manually but it is too long?....can you provide me code for that...

Download creep_integral_sol.mw

@dharr  i would solve this equation...

Aung 65
November 16 2024
0 0

@dharr
i would solve this equation using integration by part manully but it gonna be too long...
can you provide me code for that?

@mmcdara SIr! your guide did help m...

Aung 65
September 09 2024
0 0

@mmcdara SIr! your guide did help my problem.. i am sorry that i was a little hurry.
.....Here is another problem.. i change model equation  and it give again error....i dont' know what error means

my constraints for parameters are
E[isnt] is between 13*10^9 and 16*10^9
P[i] and lambda[i] values are positive

i dont' know constraints for lambda[90]

can you check and help? please.




>

restart
>

with(Statistics)with(plots)with(Optimization)with(LinearAlgebra)
>

E[1] := 126*10^9E[2] := 11*10^9G[12] := 6.6*10^9G_0__12 := 10.1*10^9nu[12] := .28E_0__2 := 15.5*10^9
>

true_strain := [0, .406915, .710106, .989362, 1.28457, 1.53989, 1.86702, 2.21011, 2.625, 2.99202]; true_stress := [0, 46.0227*10^6, 81.8182*10^6, 109.091*10^6, 138.068*10^6, 163.636*10^6, 194.318*10^6, 219.886*10^6, 248.864*10^6, 267.614*10^6]; epsilon_dot := 10^(-4)
>

true_strain := true_strain[2..-1];
true_stress := true_stress[2..-1];


N := nops(true_strain);

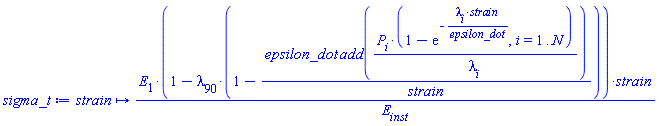

sigma_t := strain -> E[1]/E[inst]*
(1-lambda[90]*
(1-(epsilon_dot/strain)*
(add((P[i]/lambda[i])*(1-exp(-lambda[i]*strain/epsilon_dot), i=1..N)))))
*strain;

[.406915, .710106, .989362, 1.28457, 1.53989, 1.86702, 2.21011, 2.625, 2.99202]



[46022700.00, 81818200.00, 109091000.0, 138068000.0, 163636000.0, 194318000.0, 219886000.0, 248864000.0, 267614000.0]



9



proc (strain) options operator, arrow; E[1]*(1-lambda[90]*(1-epsilon_dot*add(P[i]*(1-exp(-lambda[i]*strain/epsilon_dot), i = 1 .. N)/lambda[i])/strain))*strain/E[inst] end proc

 (1)
>

Digits := 15:
obj := add(
         (
           sigma_t(true_strain[i])
           -
           true_stress[i]
         )^2
         , i=1..N
       );

opt := NLPSolve(obj, {seq(lambda[j] >= -1, j=1..N), seq(lambda[j] <= 0, j=1..N)} );

(51271290000.0000*(1-lambda[90]*(1-0.245751569738152e-3*P[1]-0.245751569738152e-3/lambda[1]+(-0.245751569738152e-3+0.245751569738152e-3*exp(-4069.150000*lambda[1]), -0.245751569738152e-3*(1 = 1 .. 9))))/E[inst]-46022700.00)^2+(89473356000.0000*(1-lambda[90]*(1-0.140824045987500e-3*P[2]-0.140824045987500e-3/lambda[2]+(-0.140824045987500e-3+0.140824045987500e-3*exp(-7101.060000*lambda[2]), -0.140824045987500e-3*(2 = 1 .. 9))))/E[inst]-81818200.00)^2+(124659612000.000*(1-lambda[90]*(1-0.101075238385950e-3*P[3]-0.101075238385950e-3/lambda[3]+(-0.101075238385950e-3+0.101075238385950e-3*exp(-9893.620000*lambda[3]), -0.101075238385950e-3*(3 = 1 .. 9))))/E[inst]-109091000.0)^2+(161855820000.000*(1-lambda[90]*(1-0.778470616626575e-4*P[4]-0.778470616626575e-4/lambda[4]+(-0.778470616626575e-4+0.778470616626575e-4*exp(-12845.70000*lambda[4]), -0.778470616626575e-4*(4 = 1 .. 9))))/E[inst]-138068000.0)^2+(194026140000.000*(1-lambda[90]*(1-0.649397034853139e-4*P[5]-0.649397034853139e-4/lambda[5]+(-0.649397034853139e-4+0.649397034853139e-4*exp(-15398.90000*lambda[5]), -0.649397034853139e-4*(5 = 1 .. 9))))/E[inst]-163636000.0)^2+(235244520000.000*(1-lambda[90]*(1-0.535612901843580e-4*P[6]-0.535612901843580e-4/lambda[6]+(-0.535612901843580e-4+0.535612901843580e-4*exp(-18670.20000*lambda[6]), -0.535612901843580e-4*(6 = 1 .. 9))))/E[inst]-194318000.0)^2+(278473860000.000*(1-lambda[90]*(1-0.452466166842374e-4*P[7]-0.452466166842374e-4/lambda[7]+(-0.452466166842374e-4+0.452466166842374e-4*exp(-22101.10000*lambda[7]), -0.452466166842374e-4*(7 = 1 .. 9))))/E[inst]-219886000.0)^2+(330750000000.000*(1-lambda[90]*(1-0.380952380952381e-4*P[8]-0.380952380952381e-4/lambda[8]+(-0.380952380952381e-4+0.380952380952381e-4*exp(-26250.000*lambda[8]), -0.380952380952381e-4*(8 = 1 .. 9))))/E[inst]-248864000.0)^2+(376994520000.000*(1-lambda[90]*(1-0.334222364823765e-4*P[9]-0.334222364823765e-4/lambda[9]+(-0.334222364823765e-4+0.334222364823765e-4*exp(-29920.20000*lambda[9]), -0.334222364823765e-4*(9 = 1 .. 9))))/E[inst]-267614000.0)^2



Error, (in simpl/reloprod) invalid terms in product: 1 .. 9


>

indets(obj, name)

Error, (in simpl/reloprod) invalid terms in product: 1 .. 9


>

display(
  ScatterPlot(true_strain, true_stress, symbol=circle, color=blue),
  pointplot([[0.001$2]], symbol=circle, color=blue),
  plot(eval(sigma_t(Sigma), opt[2]), Sigma=0.001..max(true_strain), color=red)
)

Error, invalid input: eval received opt[2], which is not valid for its 2nd argument, eqns


>

display(
  ScatterPlot(true_strain, true_stress, symbol=circle, color=blue),
  pointplot([[0.001$2]], symbol=circle, color=blue),
  plot(eval(sigma_t(Sigma), opt[2]), Sigma=0.001..max(true_strain), color=red),
  axis[2]=[mode=log]
)

Error, invalid input: eval received opt[2], which is not valid for its 2nd argument, eqns


>

opt := NLPSolve(
         obj,
         {
           seq(P[j] >= 10, j=1..N),
           seq(lambda[j] >= -1, j=1..N),
           seq(lambda[j] <= 0, j=1..N)
         }
       );

display(
  ScatterPlot(true_strain, true_stress, symbol=circle, color=blue),
  pointplot([[0.001$2]], symbol=circle, color=blue),
  plot(eval(sigma_t(Sigma), opt[2]), Sigma=0.001..max(true_strain), color=red)
)

Error, (in simpl/reloprod) invalid terms in product: 1 .. 9



Error, invalid input: eval received opt[2], which is not valid for its 2nd argument, eqns


>






Download 90As4_mmcdara.mw

@mmcdara Sir....it not give symboli...

Aung 65
September 08 2024
0 0

@mmcdara
Sir....it not give symbolically answer....it should need to define n terms...
is there any way can i get general answer...i don't want to define n  at this step..here is my mfile..
it is ok no matter what ...i just want the symbolic final answer...may be my calculation process is not right...so it give back with integration term




>

restart:
>

with(IntegrationTools):
>

``
>


eq1 := int(sum(A[i]*lambda[i]*exp(-lambda[i]*(t - tau)), i = 1 .. n)*tau, tau = 0 .. t);

int((sum(A[i]*lambda[i]*exp(-lambda[i]*(t-tau)), i = 1 .. n))*tau, tau = 0 .. t)

 (1)
>

eq2 := IntegrationTools:-Expand(eq1);

int((sum(A[i]*lambda[i]*exp(lambda[i]*tau)/exp(lambda[i]*t), i = 1 .. n))*tau, tau = 0 .. t)

 (2)
>

eq2 := subsindets(eq2, specfunc({specfunc(sum),name=range},int),
                   u->Sum(Int(op([1,1],u),op(2,u)),op([1,2],u)));

int((sum(A[i]*lambda[i]*exp(lambda[i]*tau)/exp(lambda[i]*t), i = 1 .. n))*tau, tau = 0 .. t)

 (3)
>

simplify(eq2);

int((sum(A[i]*lambda[i]*exp(-lambda[i]*(t-tau)), i = 1 .. n))*tau, tau = 0 .. t)

 (4)
>

value(%);

int((sum(A[i]*lambda[i]*exp(-lambda[i]*(t-tau)), i = 1 .. n))*tau, tau = 0 .. t)

 (5)
>

simplify(combine(%));

int((sum(A[i]*lambda[i]*exp(-lambda[i]*(t-tau)), i = 1 .. n))*tau, tau = 0 .. t)

 (6)
>



>

NULL
>

NULL
>

NULL




Download solution_of_integral.mw

@mmcdara  sir...i still make a mist...

Aung 65
September 08 2024
0 0

@mmcdara
sir...i still make a mistake....i think..model...
here is my integration....
i try normally it gives zero...but i try watching from maple Help
it can't solve...please check this and then i can recaculate the model



>

restart:
>

with(IntegrationTools):
>

``
>


eq1 := int(sum(A[i]*lambda[i]*exp(-lambda[i]*(t - tau)), i = 1 .. n)*tau, tau = 0 .. t);

int((sum(A[i]*lambda[i]*exp(-lambda[i]*(t-tau)), i = 1 .. n))*tau, tau = 0 .. t)

 (1)
>

eq2 := IntegrationTools:-Expand(eq1);

int((sum(A[i]*lambda[i]*exp(lambda[i]*tau)/exp(lambda[i]*t), i = 1 .. n))*tau, tau = 0 .. t)

 (2)
>

eq2 := subsindets(eq2, specfunc({specfunc(sum),name=range},int),
                   u->Sum(Int(op([1,1],u),op(2,u)),op([1,2],u)));

int((sum(A[i]*lambda[i]*exp(lambda[i]*tau)/exp(lambda[i]*t), i = 1 .. n))*tau, tau = 0 .. t)

 (3)
>

simplify(eq2);

int((sum(A[i]*lambda[i]*exp(-lambda[i]*(t-tau)), i = 1 .. n))*tau, tau = 0 .. t)

 (4)
>

value(%);

int((sum(A[i]*lambda[i]*exp(-lambda[i]*(t-tau)), i = 1 .. n))*tau, tau = 0 .. t)

 (5)
>

simplify(combine(%));

int((sum(A[i]*lambda[i]*exp(-lambda[i]*(t-tau)), i = 1 .. n))*tau, tau = 0 .. t)

 (6)
>



>

NULL
>

NULL
>

NULL




Download solution_of_integral.mw
it is only integration part....

@mmcdara Yes sir ..it is an indeed ...

Aung 65
June 17 2024
0 0

@mmcdara Yes sir ..it is an indeed viscoelastic problem. thank you i have experimental data and i'm gonna try like the guidelines you described. actually..i already fit the data using NonLinearFit command but i'm a little bit not faimliar with numberical calculation or optimization problem behind the sense..so i try to get this..thank u Sir.

@acer Sir, i have the same solution...

Aung 65
June 01 2024
0 0

@acer Sir, i have the same solution to this..this is right...but can you use a little simpler command..i mean i don't understand behind the idea of this line
temp := subsindets(temp, specfunc({specfunc(sum),name=range},int),
                   u->Sum(Int(op([1,1],u),op(2,u)),op([1,2],u)));

@Preben Alsholm Sir ..what you mean...

Aung 65
April 11 2024
0 0

@Preben Alsholm Sir ..what you mean is that ..it can be used directly in the model and without changing to standard function we can get the values of k from curve fitting?..right?

@Preben Alsholm thank u Sir i just ...

Aung 65
April 10 2024
0 0

@Preben Alsholm thank u Sir
i just want k as symbolic parameters..is there any other way k is as symbolic k?

@dharr thank u Sir.  i don...

Aung 65
April 10 2024
0 0

@dharr thank u Sir.

 i don't know k , k is a material constant and i actually think k can be get from curve fitting .(may be i'm wrong)...and can we get standard functinos ..with k symbolic...

@Scot Gould Sir.... actually...the ...

Aung 65
April 09 2024
0 0

@Scot Gould Sir.... actually...the equation is like this......this is the governing equation for damage accumulation model of composite under fatigue loading...i consider with sinusodial loading case
  i have some derivation...dD/dt = some function and....finally we get

D(t) = 1-(1-C(1+k) integral 0 to N (sigma_a * sin(omega*t))^k dt........

if i can get closed form solution..i can plot damage accumlation vs number of load cylce ...
and and loading parttern is a choice .. ....i can get closed form with different type of loading history..for eaxmple ( constant trapezodial pattern)..but sinusoidal loading are actually easy and cheap to set up  experiment and ...the problem is i don't get closed form solution for integral term.
