@ousshajjaj You got feedback form an expert!

I would be interested to see your finshed model here.

One hint on the Stuart platform: if you want to inspect the full model in 3d worksspace you have to disable the visualisation components in the Subsystem Leg. Otherwise you will only see only leg. With one leg the modeling approach is less obvious.

With the approach from Orang you probably don't need to consult the 3d workspace. With my proposal you most likely have to.

Good look with your project!

Key to solve your problem will be the creation of 3d assemblies for the elements “couland” and “noix” in your drawing. These elements will define the 8 kinematic loops (!) of your problem.

Thinking about this I have no idea how this can be done best. This would be the perfect moment for an experienced user or MapleSim support to jump in with some advice.

Or, maybe someone knows a model in the model gallery where you can learn from. Straight away I can only suggest the Stewart platform https://de.maplesoft.com/products/maplesim/modelgallery/detail.aspx?id=34

This example does not use 3d assemblies as I have proposed above. The orientation of the legs is done implicitly withinin the legs. This is an extremely smart and efficient way of doing it but requires expert knowledge and allot of experience.  That’s why I was proposing an engineering approach using 3d subassemblies (of ridig body frames).

Please take my advice as an educated guess from someone how has been in the same situation looking for training material on building 3d assemblies (planar is simple) or some general good practice on building 3d assemblies (or at least things you should not do). I hope my approach is a not a "solution looking for problems".

So again: Can someone come up with some better advice?

you might have access to the Dynamic System Package. The package provides commands and plot options which are of particular interest for engineers.

Try: help("DynamicSystems")

Alternatively, you might consult help pages designed for scientist and engineers for examples.

https://de.maplesoft.com/support/help/category.aspx?cid=892

@acer found a way “forcing” Maple to produce one of the exact expressions proposed by @Christian Wolinski.

With that knowledge at hand, I reinvestigated my initial attempts of defining assumptions to compute the inverse. I finally found two ways to do so (see attached). Without the knowledge that exact solutions exist and that Maple has all it needs on board I would have abandoned with the wrong conclusion off Maple being incapable.

Summing up all the efforts, I ask myself how Maple can help other users having the right intuition finding the corresponding command with less effort.

No compromises needed any more. Thank you again!

inverse_function_with_fsolve_and_assumptions.mw

@acer  Good to know that plot can deal with 0.*I, which I have learned now is an important design feature.

Therefore, the not responding plot command that I observed in some instances is probably related to evaluation efficiency of the integral and its inverse (or equivalent expressions).

Thank you for indicating how expressions using Maple functions can be derived from the integral. I will comment on that in the other post.

@Thomas Richard
Your hint (?fnormal) is in line with a solution I got from another user: i.e. limiting the digits of the numeric evaluation of an integral.

Limiting digits most likely removed such terms.

I can see now fsolve having to deal with information on directions pointing away from the real valued solution...

Thanks for the quick clarification!

@Christian Wolinski This completes my picture.

All your expressions are better than evaluation of the integral within fsolve (which I still think should work).

Your first expression is still the best in terms of a) computation efficiency and b) no restrictions on the search interval. I am using a squared form which removes the s shape of the function in the search interval.

g := alpha -> fsolve(alpha = EllipticF(sqrt(sin(x__0))/sqrt(sin(x__0) + 1), sqrt(-sin(x__0)^2 + 1)*I/(sin(x__0) - 1))^2/(1 - sin(x__0)),x__0)

In the meantime I have found another simple looking expression with the help of Maples Functionadvisor. Pretty cool (the advisor).

Int(1/sqrt(sin(x0) - sin(x)), x = 0 .. x0) = sqrt(2)*InverseJacobiCN(cos(x0)/(sin(x0) + 1), sqrt(2)*sqrt(sin(x0) + 1)/2).

Thanks again! Without your help I would have to live with numerical compromises.

@Carl Love
It works fine now

I can even access the output component wise! If it was for a Maple functionality I would suggest an access via indices where each index corresponds to either an operand or an operator (i.e. 1..9 for the example above).

However, for the moment I am fine with the solutions as they are. Thank you all!

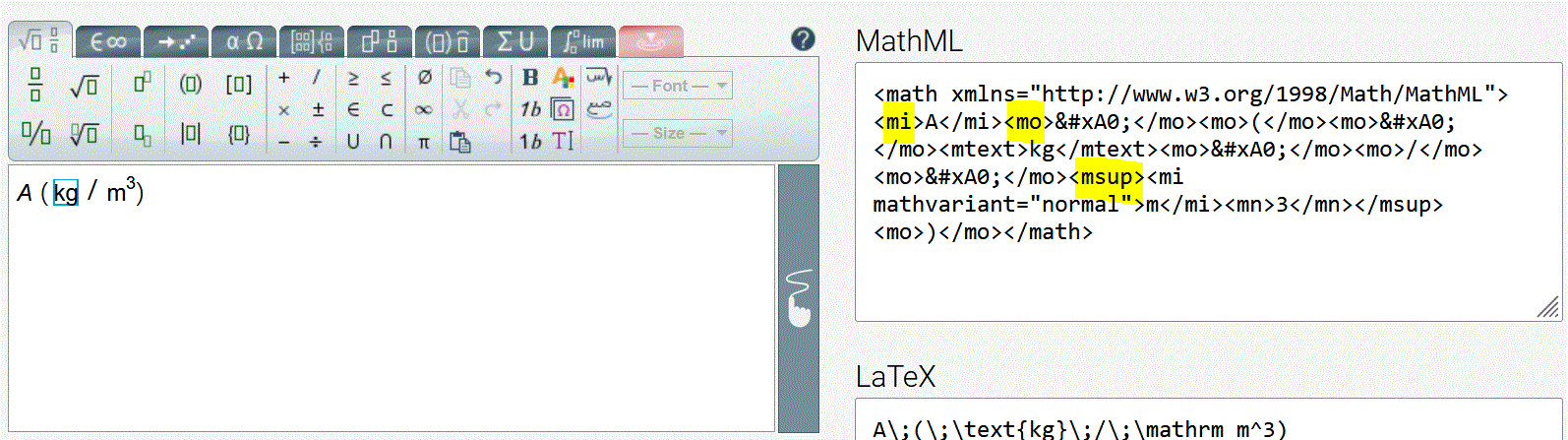

@Carl Love. I tried it but the output still contains the unwanted parenthesis.

Apart from that I like the extension to more than 3 operators and the inclusion of other operator types.

If I could later on refer in an easy way to components of the output, this would be perfect.
I vote up since it is close to a solution that I consider worth implementing in Maple.

Multiequation.mw

@acer  Thank you for your very detailed answer!

I have attached an example how I would use your solution 1). The input is hidden.

In case someone from MapleSoft reads this: Please take the attachment as a suggestion to improve Maple in the field of

- professional looking documents

- integration (computing the inverse with fsolve, simplifying integrals to expressions containing Maple functions)

Download inverse_function_with_fsolve_with_EllipticF.mw

@Christian Wolinski Thank you! Where did you get the expressions from? I was acutally expecting Maple to return such expressions.
I am interested, since I work in the meatime with the square of the expression (see my second attachment above). I guess that simliar expressions can be obtained.

Update: The simple formulas work much better. No reduced prescsision is required.

I pasted you code in my version and it worked.

Which version are you using?

I finally had to implement both proposals from @mmcdara and @acer. Calculating expressions containing elliptic integrals and their inverse seems to challenge sophisticated high-level commands like fsolve or plot. I guess that the default convergence criteria are simply set too high in this instance.

On the other hand, Maple was able to integrate expressions containing a potential division by zero without limiting the precision of the integration or the integration range by a small fraction. Thumbs up for Maple.

My problem stemmed from a rather simple looking BVP containing an ODE that is similar to the simple nonlinear pendulum.

Those who are interested can find details in the attachment how this problem can be solved analytically and where I stopped calculating the inverse with fsolve.

Recalc_of_Belendez_et_al.mw

@acer I was looking for such an option within fsolve. Thank you!

@mmcdara I read in a paper that such problems are "easily" solveable in other Math packages. However they did not give more than a hint: use of numerical integration.  They probably  did soemthing simliar to acers solution.
