I am trying to plot a contour graph for my problem for (psi) function in the particular boundary, and even though it's working, but the contour  plot is not appearing at the end. Could anyone help me with the code to get proper graph in the specified boundary.

i have ploted the graph in python i got a plot similar to that i am trying maple but i am not able to plot it. could any one help me to solve.

contour_plots_error_in_wavey_flow.mw

Dear sir here not matching the table values in the given pdf and if the Bc ((D(D(f)))(1) = 0) is also not satisfying

thin_film_base_paper_comparision.mw

restart;
with(PDEtools):
with(plots):
with(LinearAlgebra):

A1 := 1:

# A2: Density coefficient
A2 := 1:

# A3: Thermal conductivity coefficient (Maxwell model)
A3 := 1:

# A4: Heat capacity coefficient
A4 := 1:

# A5: Electrical conductivity coefficient (Maxwell model)
A5 := 1:




# Default parameter values (can be varied in studies)
M := 0:               # Magnetic field parameter
               # Unsteadiness parameter
lambda_val := 0.5:      # Film thickness parameter (β²)
R := 0:               # Radiation parameter
A_star := 0.5:          # Heat source parameter
B_star := 0.5:          # Heat sink parameter
Ec := 0:              # Eckert number
Pr := 1:            # Prandtl number

OdeSys := A1 * diff(f(eta), eta, eta, eta) +
                     A2 * lambda_val * (f(eta) * diff(f(eta), eta, eta) -
                     diff(f(eta), eta)^2 - S * diff(f(eta), eta) -
                     (S * eta/2) * diff(f(eta), eta, eta)) -
                     M * A5 * diff(f(eta), eta) = 0,(A3 + (4/3)*R) * diff(theta(eta), eta, eta) -
                   Pr * A4 * lambda_val * ((S/2) * (3*theta(eta) + eta*diff(theta(eta), eta)) +
                   2*diff(f(eta), eta)*theta(eta) - f(eta)*diff(theta(eta), eta)) +
                   lambda_val * (B_star * theta(eta) + A_star * diff(f(eta), eta)) = 0;

diff(diff(diff(f(eta), eta), eta), eta)+.5*f(eta)*(diff(diff(f(eta), eta), eta))-.5*(diff(f(eta), eta))^2-.5*S*(diff(f(eta), eta))-.2500000000*S*eta*(diff(diff(f(eta), eta), eta)) = 0, diff(diff(theta(eta), eta), eta)-.2500000000*S*(3*theta(eta)+eta*(diff(theta(eta), eta)))-1.0*(diff(f(eta), eta))*theta(eta)+.5*f(eta)*(diff(theta(eta), eta))+.25*theta(eta)+.25*(diff(f(eta), eta)) = 0

(1)



# Boundary conditions
    Cond :=f(0) = 0, D(f)(0) = 1, theta(0) = 1, f(1) = S/2,  D(theta)(1) = 0:
#(D(D(f)))(1) = 0:

SVals := [1, 1.2, 1.4, 1.6,1.8]:



for j to numelems(SVals) do

        Ans[j] := dsolve(eval([OdeSys, Cond], S = SVals[j]), numeric,
                         output = listprocedure):
end do:


interface(rtablesize = 100); interface(displayprecision = 6); Matrix([[Y, Nu, Nu, Nu, Nu, Nu], seq([k, seq([-(eval(diff(theta(eta), eta), Ans[j]))(k)][], j = 1 .. numelems(SVals))], k = 0)]); interface(rtablesize = 10); interface(displayprecision = -1)

Matrix(%id = 36893490264274272116)

(2)




Download thin_film_base_paper_comparision.mw
fin_base_paper.pdf

Hello Maple Community,

I'm working on solving a PDE system for fluid flow in an L-shaped cavity (similar to previous work on H-shaped and square domains ) recently asked by some one here. I've implemented the governing equations in Maple but need help generating contour plots.

I'm attaching:
1. My Maple worksheet l_shape_cavity.mw
2. A PDF with the problem description and equations L_shape_cavity_work.pdf

The main issues I'm facing are:
- Setting up proper boundary conditions for the L-shaped domain
- Generating contour plots for velocity and pressure fields
- Ensuring the solution converges properly

Could you please help me with:
1. Correct implementation of the L-shaped domain geometry
2. Generating proper contour plots
3. Any suggestions for improving the numerical solution

Thank you for your assistance!

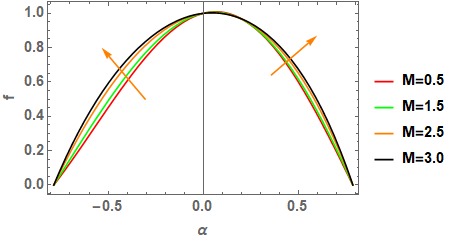

How to solve two boundary problems in one graph not getting graphs shown in pdf
symetry_paper_work.mw
symmetry_graphs_pdf.pdf

How to get table values

why this error is getting. but in the published paper for the same parameter it is converging. what is the mistake in this worksheet please rectify it in sachin_base_paper.mw
