I am a Software Architect in the Math Group, working mostly on the Maple library. I have been working at Maplesoft since 2007, in various areas including differential equations, integration, mathematical functions, simplification, root finding, and logic. I completed a Master's degree from McGill University with a thesis in Differential Geometry, and a PhD from Simon Fraser University with a thesis on Differential Equations.

MaplePrimes Activity


These are answers submitted by aroche

Fixed. Should appear in next beta....

aroche 880
16 hours ago
1 0

Hi @nm,

Thanks for this report. Although the example consists of an invalid IVP problem (i.e. the IC contradicts the ODE), nevertheless it would be good if odetest would not return [0,0] which indicates that the solution satsifies the IVP. Therefore, I considered this a bug and I was able to fix it:

>

ode:=2*y(x) + 2*x*y(x)^2 + (2*x + 2*x^2*y(x))*diff(y(x), x) = 0:
IC:=y(0) = 1:
my_sol_1:=x*y(x)*(2+y(x)*x)=0:
odetest(my_sol_1,[ode,IC]);

[0, 1]
Download 242128.mw


The fix should be available in the next beta release.

Cheers,

   Austin

Fixed. Should appear in next beta....

aroche 880
Yesterday at 12:23 PM
1 0

Hi @nm,

Thanks for finding this! This is now fixed and the fix should appear in the next beta release:

>

sol:=y(x) = -4/9*I*(x+1)^(1/4)*(x-1)^(1/4)*2^(1/2)*x^2+4/9*(x+1)^(1/4)*(x-1)^(1/4)*2^(1/2)*x^2+4/9*I*(x+1)^(1/4)*(x-1)^(1/4)*2^(1/2)+1/9*x^4-4/9*(x+1)^(1/4)*(x-1)^(1/4)*2^(1/2)-16/9*I*(x+1)^(1/2)*(x-1)^(1/2)-2/9*x^2+1/9:
ode:=(-x^2+1)*diff(y(x),x)+x*y(x) = x*(-x^2+1)*y(x)^(1/2):
IC:=y(0) = 1:
>

odetest(sol,[ode,IC]) assuming integer,positive;

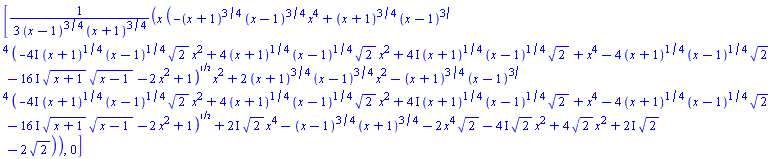

[(1/3)*x*(-(x+1)^(3/4)*(x-1)^(3/4)*x^4+(x+1)^(3/4)*(x-1)^(3/4)*(-(4*I)*(x+1)^(1/4)*(x-1)^(1/4)*2^(1/2)*x^2+4*(x+1)^(1/4)*(x-1)^(1/4)*2^(1/2)*x^2+(4*I)*(x+1)^(1/4)*(x-1)^(1/4)*2^(1/2)+x^4-4*(x+1)^(1/4)*(x-1)^(1/4)*2^(1/2)-(16*I)*(x+1)^(1/2)*(x-1)^(1/2)-2*x^2+1)^(1/2)*x^2+2*(x+1)^(3/4)*(x-1)^(3/4)*x^2-(x+1)^(3/4)*(x-1)^(3/4)*(-(4*I)*(x+1)^(1/4)*(x-1)^(1/4)*2^(1/2)*x^2+4*(x+1)^(1/4)*(x-1)^(1/4)*2^(1/2)*x^2+(4*I)*(x+1)^(1/4)*(x-1)^(1/4)*2^(1/2)+x^4-4*(x+1)^(1/4)*(x-1)^(1/4)*2^(1/2)-(16*I)*(x+1)^(1/2)*(x-1)^(1/2)-2*x^2+1)^(1/2)+(2*I)*2^(1/2)*x^4-(x-1)^(3/4)*(x+1)^(3/4)-2*x^4*2^(1/2)-(4*I)*2^(1/2)*x^2+4*2^(1/2)*x^2+(2*I)*2^(1/2)-2*2^(1/2))/((x-1)^(3/4)*(x+1)^(3/4)), 0]
Download 242133.mw


Cheers,

  Austin

Fixed in development and should appear i...

aroche 880
December 30 2025
3 0

Hi @nm,

Thank you again for this report! I've added some extra precautions to avoid this type of error in the Lie symmetry methods algorithms. The new solution is very compact and tests correctly:

>

ode:=sin(x)*diff(y(x), x, x) + (2*sin(x) - cos(x))*diff(y(x), x) + (sin(x) - cos(x))*y(x) = exp(-x):
>

sol := dsolve(ode, Lie);

y(x) = -(c__1*sin(x)+(1/2)*cos(x)+c__2)/(exp(x)*c__1)

>

odetest(sol, ode);

0

Download 242054.mw


This fix should appear in the next [Maple 2026.0] beta.

Cheers,

  Austin

Fixed in development, and should be in n...

aroche 880
December 30 2025
1 0

Hi @nm,

Another good catch! These are now fixed in the development version and the fix should appear in the next beta release:

>

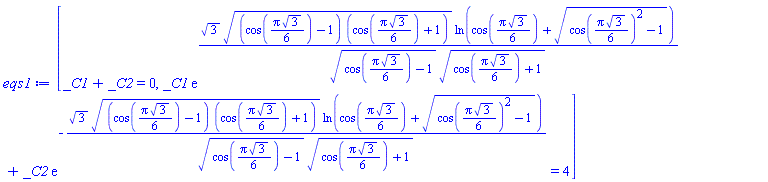

eqs1:=[_C1+_C2 = 0, _C1*exp(3^(1/2)*((cos(1/6*Pi*3^(1/2))-1)*(cos(1/6*Pi*3^(1/2))+1))^(1/2)/(cos(1/6*Pi*3^(1/2))-1)^(1/2)/(cos(1/6*Pi*3^(1/2))+1)^(1/2)*ln(cos(1/6*Pi*3^(1/2))+(cos(1/6*Pi*3^(1/2))^2-1)^(1/2)))+_C2*exp(-3^(1/2)*((cos(1/6*Pi*3^(1/2))-1)*(cos(1/6*Pi*3^(1/2))+1))^(1/2)/(cos(1/6*Pi*3^(1/2))-1)^(1/2)/(cos(1/6*Pi*3^(1/2))+1)^(1/2)*ln(cos(1/6*Pi*3^(1/2))+(cos(1/6*Pi*3^(1/2))^2-1)^(1/2))) = 4];
c:=[_C1, _C2];

[_C1+_C2 = 0, _C1*exp(3^(1/2)*((cos((1/6)*Pi*3^(1/2))-1)*(cos((1/6)*Pi*3^(1/2))+1))^(1/2)*ln(cos((1/6)*Pi*3^(1/2))+(cos((1/6)*Pi*3^(1/2))^2-1)^(1/2))/((cos((1/6)*Pi*3^(1/2))-1)^(1/2)*(cos((1/6)*Pi*3^(1/2))+1)^(1/2)))+_C2*exp(-3^(1/2)*((cos((1/6)*Pi*3^(1/2))-1)*(cos((1/6)*Pi*3^(1/2))+1))^(1/2)*ln(cos((1/6)*Pi*3^(1/2))+(cos((1/6)*Pi*3^(1/2))^2-1)^(1/2))/((cos((1/6)*Pi*3^(1/2))-1)^(1/2)*(cos((1/6)*Pi*3^(1/2))+1)^(1/2))) = 4]

[_C1, _C2]

>

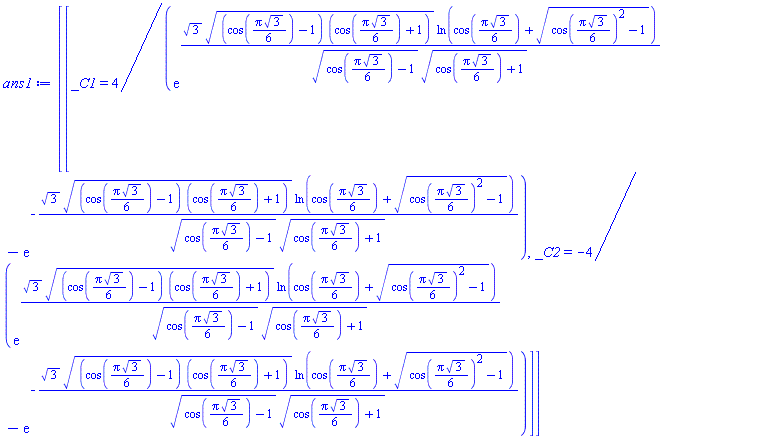

ans1 := solve(eqs1,c);

[[_C1 = 4/(exp(3^(1/2)*((cos((1/6)*Pi*3^(1/2))-1)*(cos((1/6)*Pi*3^(1/2))+1))^(1/2)*ln(cos((1/6)*Pi*3^(1/2))+(cos((1/6)*Pi*3^(1/2))^2-1)^(1/2))/((cos((1/6)*Pi*3^(1/2))-1)^(1/2)*(cos((1/6)*Pi*3^(1/2))+1)^(1/2)))-exp(-3^(1/2)*((cos((1/6)*Pi*3^(1/2))-1)*(cos((1/6)*Pi*3^(1/2))+1))^(1/2)*ln(cos((1/6)*Pi*3^(1/2))+(cos((1/6)*Pi*3^(1/2))^2-1)^(1/2))/((cos((1/6)*Pi*3^(1/2))-1)^(1/2)*(cos((1/6)*Pi*3^(1/2))+1)^(1/2)))), _C2 = -4/(exp(3^(1/2)*((cos((1/6)*Pi*3^(1/2))-1)*(cos((1/6)*Pi*3^(1/2))+1))^(1/2)*ln(cos((1/6)*Pi*3^(1/2))+(cos((1/6)*Pi*3^(1/2))^2-1)^(1/2))/((cos((1/6)*Pi*3^(1/2))-1)^(1/2)*(cos((1/6)*Pi*3^(1/2))+1)^(1/2)))-exp(-3^(1/2)*((cos((1/6)*Pi*3^(1/2))-1)*(cos((1/6)*Pi*3^(1/2))+1))^(1/2)*ln(cos((1/6)*Pi*3^(1/2))+(cos((1/6)*Pi*3^(1/2))^2-1)^(1/2))/((cos((1/6)*Pi*3^(1/2))-1)^(1/2)*(cos((1/6)*Pi*3^(1/2))+1)^(1/2))))]]

>

simplify(eval((lhs-rhs)~(eqs1), ans1[]));

[0, 0]

>

eqs2 := [3^(1/4*3^(1/2))*exp(3/4*Pi)*_C1-1/3*exp(3/4*Pi)*3^(-1/4*3^(1/2)+1/2
)*_C2 = 1, _C1/(cos(1/3*Pi*3^(1/2))-1)^(1/4)/(cos(1/3*Pi*3^(1/2))+1)^(1/4)*exp(
3/4*Pi-1/2*Pi*3^(1/2))*(cos(1/3*Pi*3^(1/2))^2-1)^(1/4)*3^(1/4*3^(1/2))*((cos(1/
3*Pi*3^(1/2))^2-1)^(1/2)+cos(1/3*Pi*3^(1/2)))^(1/2*3^(1/2))-_C2*3^(-1/2-1/4*3^(
1/2))/(cos(1/3*Pi*3^(1/2))-1)^(1/4)/(cos(1/3*Pi*3^(1/2))+1)^(1/4)*(cos(1/3*Pi*3
^(1/2))^2-1)^(1/4)*exp(3/4*Pi-1/2*Pi*3^(1/2))*((cos(1/3*Pi*3^(1/2))^2-1)^(1/2)+
cos(1/3*Pi*3^(1/2)))^(-1/2*3^(1/2)) = 5*exp(-1/2*Pi*3^(1/2))]:
>

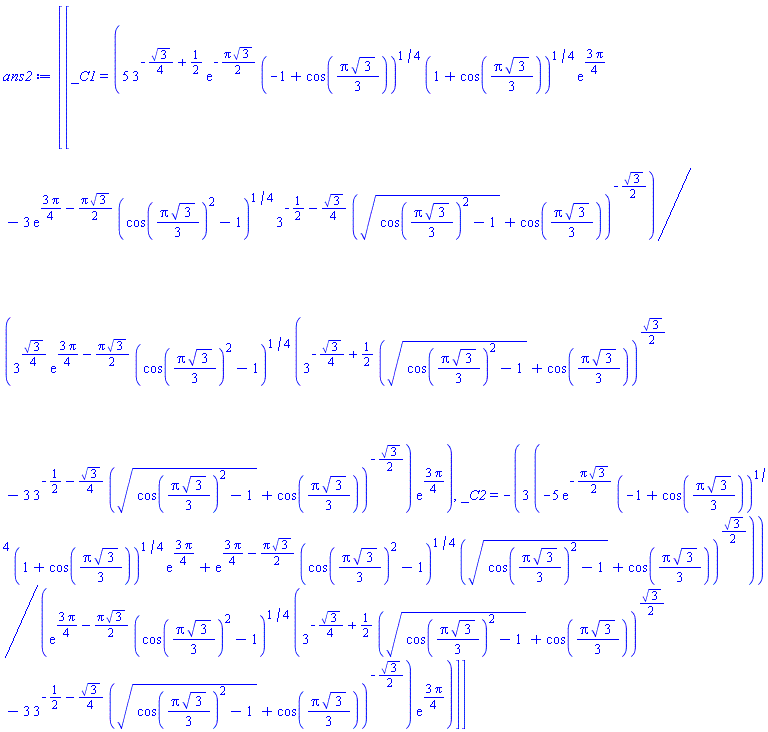

ans2 := solve(eqs2, c);

[[_C1 = (5*3^(-(1/4)*3^(1/2)+1/2)*exp(-(1/2)*Pi*3^(1/2))*(-1+cos((1/3)*Pi*3^(1/2)))^(1/4)*(1+cos((1/3)*Pi*3^(1/2)))^(1/4)*exp((3/4)*Pi)-3*exp((3/4)*Pi-(1/2)*Pi*3^(1/2))*(cos((1/3)*Pi*3^(1/2))^2-1)^(1/4)*3^(-1/2-(1/4)*3^(1/2))*((cos((1/3)*Pi*3^(1/2))^2-1)^(1/2)+cos((1/3)*Pi*3^(1/2)))^(-(1/2)*3^(1/2)))/(3^((1/4)*3^(1/2))*exp((3/4)*Pi-(1/2)*Pi*3^(1/2))*(cos((1/3)*Pi*3^(1/2))^2-1)^(1/4)*(3^(-(1/4)*3^(1/2)+1/2)*((cos((1/3)*Pi*3^(1/2))^2-1)^(1/2)+cos((1/3)*Pi*3^(1/2)))^((1/2)*3^(1/2))-3*3^(-1/2-(1/4)*3^(1/2))*((cos((1/3)*Pi*3^(1/2))^2-1)^(1/2)+cos((1/3)*Pi*3^(1/2)))^(-(1/2)*3^(1/2)))*exp((3/4)*Pi)), _C2 = -3*(-5*exp(-(1/2)*Pi*3^(1/2))*(-1+cos((1/3)*Pi*3^(1/2)))^(1/4)*(1+cos((1/3)*Pi*3^(1/2)))^(1/4)*exp((3/4)*Pi)+exp((3/4)*Pi-(1/2)*Pi*3^(1/2))*(cos((1/3)*Pi*3^(1/2))^2-1)^(1/4)*((cos((1/3)*Pi*3^(1/2))^2-1)^(1/2)+cos((1/3)*Pi*3^(1/2)))^((1/2)*3^(1/2)))/(exp((3/4)*Pi-(1/2)*Pi*3^(1/2))*(cos((1/3)*Pi*3^(1/2))^2-1)^(1/4)*(3^(-(1/4)*3^(1/2)+1/2)*((cos((1/3)*Pi*3^(1/2))^2-1)^(1/2)+cos((1/3)*Pi*3^(1/2)))^((1/2)*3^(1/2))-3*3^(-1/2-(1/4)*3^(1/2))*((cos((1/3)*Pi*3^(1/2))^2-1)^(1/2)+cos((1/3)*Pi*3^(1/2)))^(-(1/2)*3^(1/2)))*exp((3/4)*Pi))]]

>

simplify(eval((lhs-rhs)~(eqs2), ans2[1]));

[0, 0]

>

eqs3 := [3^(1/2*3^(1/2))*exp(1/2*Pi)*_C1-1/6*3^(-1/2*3^(1/2)+1/2)*exp(1/2*Pi
)*_C2 = 5, _C1/(cos(1/6*Pi*3^(1/2))-1)^(1/4)/(cos(1/6*Pi*3^(1/2))+1)^(1/4)*exp(
1/2*Pi-1/6*Pi*3^(1/2))*(cos(1/6*Pi*3^(1/2))^2-1)^(1/4)*3^(1/2*3^(1/2))*((cos(1/
6*Pi*3^(1/2))^2-1)^(1/2)+cos(1/6*Pi*3^(1/2)))^(3^(1/2))-1/6*_C2*3^(-1/2*3^(1/2)
+1/2)/(cos(1/6*Pi*3^(1/2))-1)^(1/4)/(cos(1/6*Pi*3^(1/2))+1)^(1/4)*exp(1/2*Pi-1/
6*Pi*3^(1/2))*(cos(1/6*Pi*3^(1/2))^2-1)^(1/4)*((cos(1/6*Pi*3^(1/2))^2-1)^(1/2)+
cos(1/6*Pi*3^(1/2)))^(-3^(1/2)) = 2*exp(-1/6*Pi*3^(1/2))]:
>

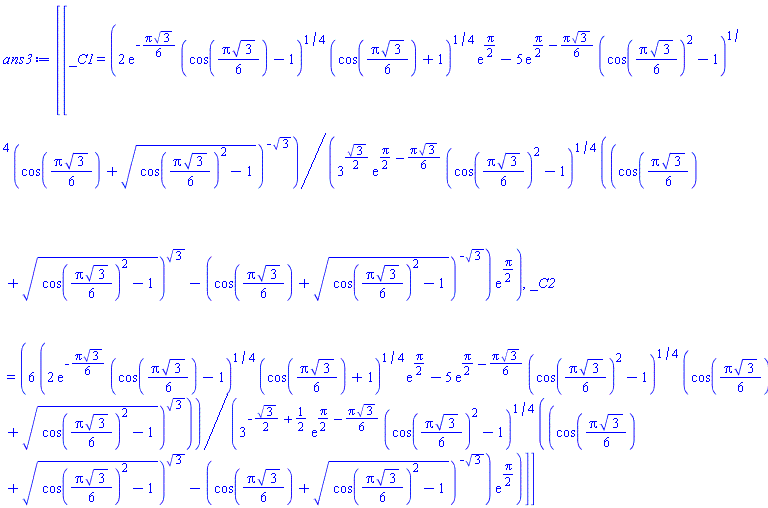

ans3 := solve(eqs3, c);

[[_C1 = (2*exp(-(1/6)*Pi*3^(1/2))*(cos((1/6)*Pi*3^(1/2))-1)^(1/4)*(cos((1/6)*Pi*3^(1/2))+1)^(1/4)*exp((1/2)*Pi)-5*exp((1/2)*Pi-(1/6)*Pi*3^(1/2))*(cos((1/6)*Pi*3^(1/2))^2-1)^(1/4)*(cos((1/6)*Pi*3^(1/2))+(cos((1/6)*Pi*3^(1/2))^2-1)^(1/2))^(-3^(1/2)))/(3^((1/2)*3^(1/2))*exp((1/2)*Pi-(1/6)*Pi*3^(1/2))*(cos((1/6)*Pi*3^(1/2))^2-1)^(1/4)*((cos((1/6)*Pi*3^(1/2))+(cos((1/6)*Pi*3^(1/2))^2-1)^(1/2))^(3^(1/2))-(cos((1/6)*Pi*3^(1/2))+(cos((1/6)*Pi*3^(1/2))^2-1)^(1/2))^(-3^(1/2)))*exp((1/2)*Pi)), _C2 = 6*(2*exp(-(1/6)*Pi*3^(1/2))*(cos((1/6)*Pi*3^(1/2))-1)^(1/4)*(cos((1/6)*Pi*3^(1/2))+1)^(1/4)*exp((1/2)*Pi)-5*exp((1/2)*Pi-(1/6)*Pi*3^(1/2))*(cos((1/6)*Pi*3^(1/2))^2-1)^(1/4)*(cos((1/6)*Pi*3^(1/2))+(cos((1/6)*Pi*3^(1/2))^2-1)^(1/2))^(3^(1/2)))/(3^(-(1/2)*3^(1/2)+1/2)*exp((1/2)*Pi-(1/6)*Pi*3^(1/2))*(cos((1/6)*Pi*3^(1/2))^2-1)^(1/4)*((cos((1/6)*Pi*3^(1/2))+(cos((1/6)*Pi*3^(1/2))^2-1)^(1/2))^(3^(1/2))-(cos((1/6)*Pi*3^(1/2))+(cos((1/6)*Pi*3^(1/2))^2-1)^(1/2))^(-3^(1/2)))*exp((1/2)*Pi))]]

>

simplify(eval((lhs-rhs)~(eqs3), ans3[1]));

[0, 0]
Download 242071.mw


Cheers,

   Austin

Fixed in development version. Fix should...

aroche 880
December 28 2025
1 0

Hi @nm,

Thank you for noticing this inconsistency. I've put in a fix that should appear in the next beta release:

>

ode := diff(y(x),x) + cos(1/exp(2*x))*y(x) = sin(1/exp(x)):
IC := a*D(y)(x0)+c*y(x0) = b*y0:
sol:=y(x) = ((-cos(exp(-2*x0))*a + c)*Int(sin(exp(-tau))*exp(-1/2*Ci(exp(-2*tau))), tau = 0 .. x0) + Int(sin(exp(-tau))*exp(-1/2*Ci(exp(-2*tau))), tau = 0 .. x)*(cos(exp(-2*x0))*a - c) + exp(-1/2*Ci(exp(-2*x0)))*(a*sin(exp(-x0)) - b*y0))*exp(1/2*Ci(exp(-2*x)))/(cos(exp(-2*x0))*a - c):
>

odetest(sol,ode);

0


>

odetest(sol, [ode, IC]);

[0, 0]



Download 242077.mw

Cheers,

     Austin

Fixed in development version. Fix should...

aroche 880
December 28 2025
2 0

Hi @nm,

Thank you for this important report. I've put in a fix that should appear in the next beta release:

>

A := Matrix(2,2,[2/3,3,0,6/5]):
>

simplify(A);

Matrix(2, 2, {(1, 1) = 2/3, (1, 2) = 3, (2, 1) = 0, (2, 2) = 6/5})

 (1)
>

A[2,2] := 1:
>

simplify(A);

Matrix(2, 2, {(1, 1) = 2/3, (1, 2) = 3, (2, 1) = 0, (2, 2) = 1})

 (2)
Download 242116.mw


Cheers,

   Austin

This is some kind of display error in th...

aroche 880
December 27 2025
3 0

Hi @nm,

In cmaple, there are no missing commas:

So, it seems this is just a problem of the GUI not displaying the commas properly.

Austin

No wrong answers, just a weakness in sim...

aroche 880
December 27 2025
1 0

Hi @nm,

Thanks for this report. Here's my response:

Example1:

>

ode:=diff(y(x), x) = y(x)*(-1 - x^(2/(ln(x) + 1))*exp(2*ln(x)^2/(ln(x) + 1))*x^2 - x^(2/(ln(x) + 1))*exp(2*ln(x)^2/(ln(x) + 1))*x^2*ln(x) + x^(2/(ln(x) + 1))*exp(2*ln(x)^2/(ln(x) + 1))*x^2*y(x) + 2*x^(2/(ln(x) + 1))*exp(2*ln(x)^2/(ln(x) + 1))*x^2*y(x)*ln(x) + x^(2/(ln(x) + 1))*exp(2*ln(x)^2/(ln(x) + 1))*x^2*y(x)*ln(x)^2)/((ln(x) + 1)*x):
>

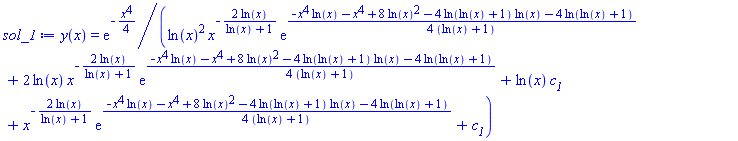

sol_1:=dsolve(ode);

y(x) = exp(-(1/4)*x^4)/(ln(x)^2*x^(-2*ln(x)/(ln(x)+1))*exp((1/4)*(-x^4*ln(x)-x^4+8*ln(x)^2-4*ln(ln(x)+1)*ln(x)-4*ln(ln(x)+1))/(ln(x)+1))+2*ln(x)*x^(-2*ln(x)/(ln(x)+1))*exp((1/4)*(-x^4*ln(x)-x^4+8*ln(x)^2-4*ln(ln(x)+1)*ln(x)-4*ln(ln(x)+1))/(ln(x)+1))+ln(x)*c__1+x^(-2*ln(x)/(ln(x)+1))*exp((1/4)*(-x^4*ln(x)-x^4+8*ln(x)^2-4*ln(ln(x)+1)*ln(x)-4*ln(ln(x)+1))/(ln(x)+1))+c__1)

 (1)
>

odetest(sol_1,ode);

0

 (2)

This result from simplify is actually correct, and as you mentioned, a considerable improvement:

>

sol_2:=simplify(sol_1);

y(x) = 1/((ln(x)+1)*(c__1*exp((1/4)*x^4)+1))

 (3)

The weakness here is actually in odetest:

>

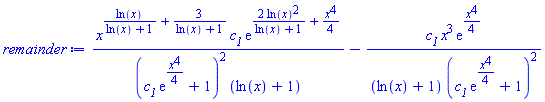

remainder := odetest(sol_2,ode);

x^(ln(x)/(ln(x)+1)+3/(ln(x)+1))*c__1*exp(2*ln(x)^2/(ln(x)+1)+(1/4)*x^4)/((c__1*exp((1/4)*x^4)+1)^2*(ln(x)+1))-c__1*x^3*exp((1/4)*x^4)/((ln(x)+1)*(c__1*exp((1/4)*x^4)+1)^2)

 (4)

It's a weakness that simplify doesn't recognize that the remainder is 0:

>

simplify(remainder);

-c__1*exp((1/4)*x^4)*(x^3-x^((ln(x)+3)/(ln(x)+1))*exp(2*ln(x)^2/(ln(x)+1)))/((c__1*exp((1/4)*x^4)+1)^2*(ln(x)+1))

 (5)

However, simplify just needs a little help to prove it:

>

simplify(eval(%, x=X/exp(1)));

0

 (6)

Example2:

>

f := sqrt(1 + sin(x)^2);
F := int(f, x);
df := diff(F, x):
simplify(df - f);

(1+sin(x)^2)^(1/2)



((1+sin(x)^2)*cos(x)^2)^(1/2)*(cos(x)^2)^(1/2)*EllipticE(sin(x), I)/((-sin(x)^4+1)^(1/2)*cos(x))



0

 (7)
>

F2 := simplify(F);
df2 := diff(F2, x):
simplify(df2 - f);

csgn(cos(x))*EllipticE(sin(x), I)



-csgn(1, cos(x))*sin(x)*EllipticE(sin(x), I)

 (8)

Note this quote from the ?int,details help page:

Handling Discontinuities


•

Note that the indefinite integral in Maple is defined up to a piecewise constant. Hence, the results returned by int may be discontinuous at some points. In many cases, you can ensure continuity by replacing an indefinite integration problem by the corresponding definite integral.

F and F2 above are actually equal expressions mathematically, which we can tell from the plots:

>

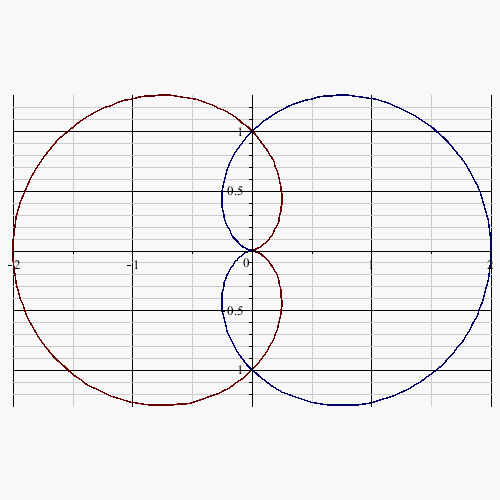

plot(F, x=-2*Pi..2*Pi), plot(F2, x=-2*Pi..2*Pi);

INTERFACE_PLOT(CURVES(Matrix(244, 2, {(1, 1) = -6.283185295, (1, 2) = 0.1217958648e-7, (2, 1) = -6.217116282, (2, 2) = 0.6611701837e-1, (3, 1) = -6.159629987, (3, 2) = .1238680151, (4, 1) = -6.094980636, (4, 2) = .1893021599, (5, 1) = -6.0299027469999995, (5, 2) = .2559314012, (6, 1) = -5.965134162, (6, 2) = .3232309191, (7, 1) = -5.905085392, (7, 2) = .386682464, (8, 1) = -5.84290837, (8, 2) = .4536052645, (9, 1) = -5.778604804, (9, 2) = .5242580538, (10, 1) = -5.714507461, (10, 2) = .596249366, (11, 1) = -5.648575464, (11, 2) = .6720116477, (12, 1) = -5.590502526, (12, 2) = .7402187420999999, (13, 1) = -5.525126153, (13, 2) = .8186730769, (14, 1) = -5.459481337, (14, 2) = .8992163441, (15, 1) = -5.396220394, (15, 2) = .978472231, (16, 1) = -5.338773397, (16, 2) = 1.051786629, (17, 1) = -5.270463361, (17, 2) = 1.140542461, (18, 1) = -5.2125958, (18, 2) = 1.21698501, (19, 1) = -5.14528207, (19, 2) = 1.307230971, (20, 1) = -5.085698014, (20, 2) = 1.388184117, (21, 1) = -5.02032486, (21, 2) = 1.478012144, (22, 1) = -4.9580741580000005, (22, 2) = 1.564382092, (23, 1) = -4.893122081, (23, 2) = 1.655196587, (24, 1) = -4.833475799, (24, 2) = 1.739065122, (25, 1) = -4.801307512, (25, 2) = 1.7844318729999973, (26, 1) = -4.769139225, (26, 2) = 1.829863465, (27, 1) = -4.7524323205000005, (27, 2) = 1.8534766249999617, (28, 1) = -4.735725416, (28, 2) = 1.8770976880002048, (29, 1) = -4.7273719637500005, (29, 2) = 1.8889101530001908, (30, 1) = -4.7190185115, (30, 2) = 1.9007233559989454, (31, 1) = -4.7169301484375, (31, 2) = 1.9036767240053527, (32, 1) = -4.714841785375, (32, 2) = 1.906630105989005, (33, 1) = -4.712753422312501, (33, 2) = 1.9095834954727415, (34, 1) = -4.71066505925, (34, 2) = -1.907660902024767, (35, 1) = -4.706488333125, (35, 2) = -1.9017541430014686, (36, 1) = -4.702311607, (36, 2) = -1.895847556, (37, 1) = -4.673224787500001, (37, 2) = -1.8547194399999387, (38, 1) = -4.644137968, (38, 2) = -1.813614817, (39, 1) = -4.581308845, (39, 2) = -1.724988445, (40, 1) = -4.516400213, (40, 2) = -1.633811869, (41, 1) = -4.45289978, (41, 2) = -1.545167552, (42, 1) = -4.391459846, (42, 2) = -1.460081755, (43, 1) = -4.323241274, (43, 2) = -1.366574024, (44, 1) = -4.261943854, (44, 2) = -1.283569751, (45, 1) = -4.196495773, (45, 2) = -1.196154988, (46, 1) = -4.137190085, (46, 2) = -1.118137239, (47, 1) = -4.072353303, (47, 2) = -1.034252108, (48, 1) = -4.011346944, (48, 2) = -.9567539629, (49, 1) = -3.94757772, (49, 2) = -.8773034001, (50, 1) = -3.885231649, (50, 2) = -.8012164833, (51, 1) = -3.819961089, (51, 2) = -.7232769975, (52, 1) = -3.757097783, (52, 2) = -.6498765644, (53, 1) = -3.692810973, (53, 2) = -.5764798219, (54, 1) = -3.62905649, (54, 2) = -.5053016247, (55, 1) = -3.570472742, (55, 2) = -.4412394454, (56, 1) = -3.503329155, (56, 2) = -.3692823393, (57, 1) = -3.443275131, (57, 2) = -.3061180279, (58, 1) = -3.379245015, (58, 2) = -.2398461826, (59, 1) = -3.317960024, (59, 2) = -.1772718725, (60, 1) = -3.249910918, (60, 2) = -.1085292123, (61, 1) = -3.190985392, (61, 2) = -0.4941280471e-1, (62, 1) = -3.124104393, (62, 2) = 0.1748915193e-1, (63, 1) = -3.063149623, (63, 2) = 0.7852330514e-1, (64, 1) = -2.996474684, (64, 2) = .1456235928, (65, 1) = -2.938945488, (65, 2) = .2040145399, (66, 1) = -2.873426448, (66, 2) = .2713017161, (67, 1) = -2.810138291, (67, 2) = .3372999515, (68, 1) = -2.746891478, (68, 2) = .4044235733, (69, 1) = -2.683877339, (69, 2) = .47261567, (70, 1) = -2.623340478, (70, 2) = .5394793032, (71, 1) = -2.557898529, (71, 2) = .6133497622999999, (72, 1) = -2.495527606, (72, 2) = .6853556922, (73, 1) = -2.429885147, (73, 2) = .7628667984999999, (74, 1) = -2.370462914, (74, 2) = .8345698347, (75, 1) = -2.304790223, (75, 2) = .9154963725, (76, 1) = -2.241887228, (76, 2) = .9946235416, (77, 1) = -2.179137341, (77, 2) = 1.075068057, (78, 1) = -2.113594842, (78, 2) = 1.160613797, (79, 1) = -2.053227806, (79, 2) = 1.24068293, (80, 1) = -1.991403705, (80, 2) = 1.323844711, (81, 1) = -1.923142551, (81, 2) = 1.416880992, (82, 1) = -1.861337667, (82, 2) = 1.502071221, (83, 1) = -1.798130597, (83, 2) = 1.589975345, (84, 1) = -1.733850635, (84, 2) = 1.680014474, (85, 1) = -1.674764841, (85, 2) = 1.763197479, (86, 1) = -1.6432730695, (86, 2) = 1.807646140000001, (87, 1) = -1.611781298, (87, 2) = 1.852145477, (88, 1) = -1.596155271, (88, 2) = 1.8742378529999932, (89, 1) = -1.580529244, (89, 2) = 1.8963345800007954, (90, 1) = -1.5766227372500001, (90, 2) = 1.9018591289981701, (91, 1) = -1.5727162305, (91, 2) = 1.9073837410000234, (92, 1) = -1.5707629771249998, (92, 2) = -1.910051668590898, (93, 1) = -1.5688097237499998, (93, 2) = -1.9072894139870107, (94, 1) = -1.5668564703749999, (94, 2) = -1.904527102998631, (95, 1) = -1.564903217, (95, 2) = -1.9017648029992629, (96, 1) = -1.5570902035, (96, 2) = -1.8907158119997216, (97, 1) = -1.54927719, (97, 2) = -1.87966739, (98, 1) = -1.5158472065, (98, 2) = -1.8324086490000036, (99, 1) = -1.482417223, (99, 2) = -1.785193238, (100, 1) = -1.423416198, (100, 2) = -1.702048159, (101, 1) = -1.355341264, (101, 2) = -1.606571279, (102, 1) = -1.293908884, (102, 2) = -1.520998641, (103, 1) = -1.233124755, (103, 2) = -1.437031821, (104, 1) = -1.16776229, (104, 2) = -1.347680783, (105, 1) = -1.10213542, (105, 2) = -1.259108689, (106, 1) = -1.042424685, (106, 2) = -1.179641626, (107, 1) = -.979014537, (107, 2) = -1.096538357, (108, 1) = -.91713243, (108, 2) = -1.016816635, (109, 1) = -.850051574, (109, 2) = -.9320333772, (110, 1) = -.792007982, (110, 2) = -.860107646, (111, 1) = -.725342807, (111, 2) = -.7791911951, (112, 1) = -.662674038, (112, 2) = -.7047993370000001, (113, 1) = -.600610581, (113, 2) = -.6327228684999999, (114, 1) = -.538497751, (114, 2) = -.5621521715, (115, 1) = -.475146597, (115, 2) = -.4917285207, (116, 1) = -.407995435, (116, 2) = -.4186963322, (117, 1) = -.346424395, (117, 2) = -.3530758408, (118, 1) = -.285645873, (118, 2) = -.2894229735, (119, 1) = -.220674633, (119, 2) = -.2224357442, (120, 1) = -.155844829, (120, 2) = -.1564703689, (121, 1) = -0.9765623e-1, (121, 2) = -0.9781093419e-1, (122, 1) = -0.28727639e-1, (122, 2) = -0.2873158923e-1, (123, 1) = 0.28948609e-1, (123, 2) = 0.2895265108e-1, (124, 1) = 0.96407458e-1, (124, 2) = 0.9655631557e-1, (125, 1) = .160790399, (125, 2) = .1614770292, (126, 1) = .218276695, (126, 2) = .219981631, (127, 1) = .282926043, (127, 2) = .2865981904, (128, 1) = .348003936, (128, 2) = .3547443254, (129, 1) = .412772519, (129, 2) = .423839571, (130, 1) = .472821287, (130, 2) = .4891724426, (131, 1) = .534998312, (131, 2) = .5582217656999999, (132, 1) = .599301876, (132, 2) = .6312199756, (133, 1) = .66339922, (133, 2) = .7056508801, (134, 1) = .729331215, (134, 2) = .783980722, (135, 1) = .787404152, (135, 2) = .8544610386, (136, 1) = .852780531, (136, 2) = .935448202, (137, 1) = .918425344, (137, 2) = 1.018467742, (138, 1) = .981686284, (138, 2) = 1.100011679, (139, 1) = 1.039133283, (139, 2) = 1.175294458, (140, 1) = 1.107443323, (140, 2) = 1.266226243, (141, 1) = 1.165310878, (141, 2) = 1.344350753, (142, 1) = 1.232624612, (142, 2) = 1.436344221, (143, 1) = 1.292208665, (143, 2) = 1.518639792, (144, 1) = 1.357581823, (144, 2) = 1.609703861, (145, 1) = 1.419832522, (145, 2) = 1.69700814, (146, 1) = 1.4847846, (146, 2) = 1.788534862, (147, 1) = 1.514607742, (147, 2) = 1.8306571339999915, (148, 1) = 1.544430884, (148, 2) = 1.872814578, (149, 1) = 1.5524729555, (149, 2) = 1.8841864589997026, (150, 1) = 1.560515027, (150, 2) = 1.8955590690002697, (151, 1) = 1.5645360627500002, (151, 2) = 1.9012455730013702, (152, 1) = 1.5685570985000001, (152, 2) = 1.9069321490033861, (153, 1) = 1.570567616375, (153, 2) = 1.9097754477577096, (154, 1) = 1.57257813425, (154, 2) = -1.9075790389955893, (155, 1) = 1.574588652125, (155, 2) = -1.9047357430028689, (156, 1) = 1.5765991700000002, (156, 2) = -1.901892458001876, (157, 1) = 1.5926833130000002, (157, 2) = -1.8791472570001604, (158, 1) = 1.608767456, (158, 2) = -1.85640609, (159, 1) = 1.642181265, (159, 2) = -1.8091881890000099, (160, 1) = 1.675595074, (160, 2) = -1.762026534, (161, 1) = 1.733768712, (161, 2) = -1.680129568, (162, 1) = 1.796597837, (162, 2) = -1.59211547, (163, 1) = 1.861506469, (163, 2) = -1.501837454, (164, 1) = 1.925006903, (164, 2) = -1.414324517, (165, 1) = 1.986446838, (165, 2) = -1.330559612, (166, 1) = 2.054665408, (166, 2) = -1.238762683, (167, 1) = 2.115962825, (167, 2) = -1.157497272, (168, 1) = 2.181410908, (168, 2) = -1.072127927, (169, 1) = 2.240716599, (169, 2) = -.9961106938, (170, 1) = 2.305553376, (170, 2) = -.9145459687, (171, 1) = 2.366559739, (171, 2) = -.8393305630000001, (172, 1) = 2.430328961, (172, 2) = -.7623367518999999, (173, 1) = 2.492675032, (173, 2) = -.6886870238, (174, 1) = 2.557945595, (174, 2) = -.6132960225999999, (175, 1) = 2.620808895, (175, 2) = -.5423057048, (176, 1) = 2.685095706, (176, 2) = -.4712839148, (177, 1) = 2.74885019, (177, 2) = -.4023256743, (178, 1) = 2.80743394, (178, 2) = -.3401449639, (179, 1) = 2.874577523, (179, 2) = -.2701110837, (180, 1) = 2.934631552, (180, 2) = -.2084167904, (181, 1) = 2.998661668, (181, 2) = -.1434141973, (182, 1) = 3.059946657, (182, 2) = -0.8173649515e-1, (183, 1) = 3.127995764, (183, 2) = -0.1359730852e-1, (184, 1) = 3.186921288, (184, 2) = 0.4534414593e-1, (185, 1) = 3.253802291, (185, 2) = .112444077, (186, 1) = 3.314757057, (186, 2) = .1740208463, (187, 1) = 3.381431996, (187, 2) = .2420934852, (188, 1) = 3.438961194, (188, 2) = .3016202121, (189, 1) = 3.50448023, (189, 2) = .3705035777, (190, 1) = 3.567768387, (190, 2) = .4383118491, (191, 1) = 3.631015202, (191, 2) = .507465268, (192, 1) = 3.694029343, (192, 2) = .5778554645, (193, 1) = 3.754566205, (193, 2) = .6469546315, (194, 1) = 3.820008145, (194, 2) = .7233325516, (195, 1) = 3.882379075, (195, 2) = .797773404, (196, 1) = 3.948021535, (196, 2) = .8778507164, (197, 1) = 4.007443765, (197, 2) = .9518445897, (198, 1) = 4.073116455, (198, 2) = 1.035230517, (199, 1) = 4.136019455, (199, 2) = 1.116609341, (200, 1) = 4.198769335, (200, 2) = 1.199169168, (201, 1) = 4.264311835, (201, 2) = 1.286756761, (202, 1) = 4.324678875, (202, 2) = 1.368532837, (203, 1) = 4.386502975, (203, 2) = 1.453250975, (204, 1) = 4.454764125, (204, 2) = 1.547760685, (205, 1) = 4.516569015, (205, 2) = 1.634048318, (206, 1) = 4.579776085, (206, 2) = 1.722830177, (207, 1) = 4.644056045, (207, 2) = 1.813499109, (208, 1) = 4.67359894, (208, 2) = 1.8552483709999785, (209, 1) = 4.703141835, (209, 2) = 1.897022717, (210, 1) = 4.707078306875, (210, 2) = 1.902588486000359, (211, 1) = 4.71101477875, (211, 2) = 1.9081554800004745, (212, 1) = 4.7129830146875005, (212, 2) = -1.9092588030647895, (213, 1) = 4.714951250625, (213, 2) = -1.9064752989922698, (214, 1) = 4.7169194865624995, (214, 2) = -1.9036918020030833, (215, 1) = 4.7188877225, (215, 2) = -1.900908317997764, (216, 1) = 4.72676066625, (216, 2) = -1.8897746110003135, (217, 1) = 4.7346336099999995, (217, 2) = -1.8786415349998113, (218, 1) = 4.750379497499999, (218, 2) = -1.8563786510000528, (219, 1) = 4.766125385, (219, 2) = -1.834122419, (220, 1) = 4.797377435, (220, 2) = -1.7899793499999992, (221, 1) = 4.828629485, (221, 2) = -1.74589478, (222, 1) = 4.895489455, (222, 2) = -1.651876123, (223, 1) = 4.954490485, (223, 2) = -1.569375738, (224, 1) = 5.022565415, (224, 2) = -1.474917675, (225, 1) = 5.083997795, (225, 2) = -1.390507621, (226, 1) = 5.144781925, (226, 2) = -1.307906483, (227, 1) = 5.210144395, (227, 2) = -1.220247321, (228, 1) = 5.275771255, (228, 2) = -1.133586923, (229, 1) = 5.335481995, (229, 2) = -1.056024634, (230, 1) = 5.398892145, (230, 2) = -.9750931677, (231, 1) = 5.4607742550000005, (231, 2) = -.8976131135, (232, 1) = 5.527855115, (232, 2) = -.8153629099999999, (233, 1) = 5.585898695, (233, 2) = -.7456856406000001, (234, 1) = 5.652563875, (234, 2) = -.6673782466, (235, 1) = 5.715232645, (235, 2) = -.5954258195, (236, 1) = 5.777296105, (236, 2) = -.5257119875, (237, 1) = 5.839408935, (237, 2) = -.4574114365, (238, 1) = 5.902760085000001, (238, 2) = -.3891620248, (239, 1) = 5.9699112450000005, (239, 2) = -.318228927, (240, 1) = 6.031482285, (240, 2) = -.25430332, (241, 1) = 6.0922608050000004, (241, 2) = -.1920698562, (242, 1) = 6.157232055, (242, 2) = -.1262844402, (243, 1) = 6.222061845, (243, 2) = -0.6116147283e-1, (244, 1) = 6.283185295, (244, 2) = -0.1217958648e-7}, datatype = float[8]), COLOUR(RGB, .47058824, 0., 0.54901961e-1, _ATTRIBUTE("source" = "mathdefault"))), AXESLABELS(x, ""), AXESTICKS(_PITICKS, DEFAULT, _ATTRIBUTE("source" = "mathdefault")), VIEW(-6.283185295 .. 6.283185295, DEFAULT, _ATTRIBUTE("source" = "mathdefault")), _ATTRIBUTE("input" = [TABLE([1 = plot, 2 = [((1+sin(x)^2)*cos(x)^2)^(1/2)*(cos(x)^2)^(1/2)*EllipticE(sin(x), I)/((-sin(x)^4+1)^(1/2)*cos(x))], 3 = (x = -2*Pi .. 2*Pi)]), "originalview" = [-6.28318529500000000 .. 6.28318529500000000, -1.91005166859089792 .. 1.90977544775770958], "originalaxesticks" = AXESTICKS(_PITICKS, DEFAULT, _ATTRIBUTE("source" = "mathdefault"))])), INTERFACE_PLOT(CURVES(Matrix(244, 2, {(1, 1) = -6.283185295, (1, 2) = 0.1217958648e-7, (2, 1) = -6.217116282, (2, 2) = 0.6611701837e-1, (3, 1) = -6.159629987, (3, 2) = .1238680151, (4, 1) = -6.094980636, (4, 2) = .1893021599, (5, 1) = -6.0299027469999995, (5, 2) = .2559314012, (6, 1) = -5.965134162, (6, 2) = .3232309192, (7, 1) = -5.905085392, (7, 2) = .386682464, (8, 1) = -5.84290837, (8, 2) = .4536052646, (9, 1) = -5.778604804, (9, 2) = .5242580539, (10, 1) = -5.714507461, (10, 2) = .596249366, (11, 1) = -5.648575464, (11, 2) = .6720116477, (12, 1) = -5.590502526, (12, 2) = .7402187420999999, (13, 1) = -5.525126153, (13, 2) = .8186730769, (14, 1) = -5.459481337, (14, 2) = .8992163442, (15, 1) = -5.396220394, (15, 2) = .978472231, (16, 1) = -5.338773397, (16, 2) = 1.05178663, (17, 1) = -5.270463361, (17, 2) = 1.140542461, (18, 1) = -5.2125958, (18, 2) = 1.21698501, (19, 1) = -5.14528207, (19, 2) = 1.307230971, (20, 1) = -5.085698014, (20, 2) = 1.388184117, (21, 1) = -5.02032486, (21, 2) = 1.478012144, (22, 1) = -4.9580741580000005, (22, 2) = 1.564382092, (23, 1) = -4.893122081, (23, 2) = 1.655196589, (24, 1) = -4.833475799, (24, 2) = 1.73906512, (25, 1) = -4.801307512, (25, 2) = 1.784431873, (26, 1) = -4.769139225, (26, 2) = 1.82986346, (27, 1) = -4.7524323205000005, (27, 2) = 1.853476625, (28, 1) = -4.735725416, (28, 2) = 1.877097688, (29, 1) = -4.7273719637500005, (29, 2) = 1.888910153, (30, 1) = -4.7190185115, (30, 2) = 1.900723356, (31, 1) = -4.7169301484375, (31, 2) = 1.903676724, (32, 1) = -4.714841785375, (32, 2) = 1.906630106, (33, 1) = -4.712753422312501, (33, 2) = 1.909583496, (34, 1) = -4.71066505925, (34, 2) = -1.907660902, (35, 1) = -4.706488333125, (35, 2) = -1.901754143, (36, 1) = -4.702311607, (36, 2) = -1.895847457, (37, 1) = -4.673224787500001, (37, 2) = -1.85471944, (38, 1) = -4.644137968, (38, 2) = -1.813614833, (39, 1) = -4.581308845, (39, 2) = -1.724988446, (40, 1) = -4.516400213, (40, 2) = -1.633811869, (41, 1) = -4.45289978, (41, 2) = -1.545167553, (42, 1) = -4.391459846, (42, 2) = -1.460081755, (43, 1) = -4.323241274, (43, 2) = -1.366574024, (44, 1) = -4.261943854, (44, 2) = -1.283569751, (45, 1) = -4.196495773, (45, 2) = -1.196154989, (46, 1) = -4.137190085, (46, 2) = -1.118137239, (47, 1) = -4.072353303, (47, 2) = -1.034252107, (48, 1) = -4.011346944, (48, 2) = -.9567539629, (49, 1) = -3.94757772, (49, 2) = -.8773034001, (50, 1) = -3.885231649, (50, 2) = -.8012164835, (51, 1) = -3.819961089, (51, 2) = -.7232769975, (52, 1) = -3.757097783, (52, 2) = -.6498765645, (53, 1) = -3.692810973, (53, 2) = -.5764798219, (54, 1) = -3.62905649, (54, 2) = -.505301625, (55, 1) = -3.570472742, (55, 2) = -.4412394456, (56, 1) = -3.503329155, (56, 2) = -.3692823389, (57, 1) = -3.443275131, (57, 2) = -.3061180281, (58, 1) = -3.379245015, (58, 2) = -.2398461826, (59, 1) = -3.317960024, (59, 2) = -.1772718723, (60, 1) = -3.249910918, (60, 2) = -.1085292123, (61, 1) = -3.190985392, (61, 2) = -0.4941280472e-1, (62, 1) = -3.124104393, (62, 2) = 0.1748915193e-1, (63, 1) = -3.063149623, (63, 2) = 0.7852330514e-1, (64, 1) = -2.996474684, (64, 2) = .1456235928, (65, 1) = -2.938945488, (65, 2) = .2040145399, (66, 1) = -2.873426448, (66, 2) = .2713017161, (67, 1) = -2.810138291, (67, 2) = .3372999516, (68, 1) = -2.746891478, (68, 2) = .4044235735, (69, 1) = -2.683877339, (69, 2) = .4726156701, (70, 1) = -2.623340478, (70, 2) = .5394793032, (71, 1) = -2.557898529, (71, 2) = .6133497623999999, (72, 1) = -2.495527606, (72, 2) = .6853556923, (73, 1) = -2.429885147, (73, 2) = .7628667989, (74, 1) = -2.370462914, (74, 2) = .8345698347, (75, 1) = -2.304790223, (75, 2) = .9154963728, (76, 1) = -2.241887228, (76, 2) = .9946235416, (77, 1) = -2.179137341, (77, 2) = 1.075068057, (78, 1) = -2.113594842, (78, 2) = 1.160613797, (79, 1) = -2.053227806, (79, 2) = 1.24068293, (80, 1) = -1.991403705, (80, 2) = 1.323844711, (81, 1) = -1.923142551, (81, 2) = 1.416880992, (82, 1) = -1.861337667, (82, 2) = 1.502071222, (83, 1) = -1.798130597, (83, 2) = 1.589975343, (84, 1) = -1.733850635, (84, 2) = 1.680014475, (85, 1) = -1.674764841, (85, 2) = 1.763197479, (86, 1) = -1.6432730695, (86, 2) = 1.80764614, (87, 1) = -1.611781298, (87, 2) = 1.852145503, (88, 1) = -1.596155271, (88, 2) = 1.874237853, (89, 1) = -1.580529244, (89, 2) = 1.89633458, (90, 1) = -1.5766227372500001, (90, 2) = 1.901859129, (91, 1) = -1.5727162305, (91, 2) = 1.907383741, (92, 1) = -1.5707629771249998, (92, 2) = -1.910051731, (93, 1) = -1.5688097237499998, (93, 2) = -1.907289414, (94, 1) = -1.5668564703749999, (94, 2) = -1.904527103, (95, 1) = -1.564903217, (95, 2) = -1.901764803, (96, 1) = -1.5570902035, (96, 2) = -1.890715812, (97, 1) = -1.54927719, (97, 2) = -1.879667413, (98, 1) = -1.5158472065, (98, 2) = -1.832408649, (99, 1) = -1.482417223, (99, 2) = -1.785193242, (100, 1) = -1.423416198, (100, 2) = -1.702048161, (101, 1) = -1.355341264, (101, 2) = -1.606571277, (102, 1) = -1.293908884, (102, 2) = -1.520998642, (103, 1) = -1.233124755, (103, 2) = -1.43703182, (104, 1) = -1.16776229, (104, 2) = -1.347680782, (105, 1) = -1.10213542, (105, 2) = -1.259108689, (106, 1) = -1.042424685, (106, 2) = -1.179641626, (107, 1) = -.979014537, (107, 2) = -1.096538357, (108, 1) = -.91713243, (108, 2) = -1.016816635, (109, 1) = -.850051574, (109, 2) = -.9320333772, (110, 1) = -.792007982, (110, 2) = -.860107646, (111, 1) = -.725342807, (111, 2) = -.7791911954999999, (112, 1) = -.662674038, (112, 2) = -.7047993373, (113, 1) = -.600610581, (113, 2) = -.6327228684999999, (114, 1) = -.538497751, (114, 2) = -.5621521718, (115, 1) = -.475146597, (115, 2) = -.4917285208, (116, 1) = -.407995435, (116, 2) = -.4186963322, (117, 1) = -.346424395, (117, 2) = -.3530758409, (118, 1) = -.285645873, (118, 2) = -.2894229735, (119, 1) = -.220674633, (119, 2) = -.222435744, (120, 1) = -.155844829, (120, 2) = -.156470369, (121, 1) = -0.9765623e-1, (121, 2) = -0.9781093425e-1, (122, 1) = -0.28727639e-1, (122, 2) = -0.2873158924e-1, (123, 1) = 0.28948609e-1, (123, 2) = 0.2895265108e-1, (124, 1) = 0.96407458e-1, (124, 2) = 0.9655631558e-1, (125, 1) = .160790399, (125, 2) = .1614770292, (126, 1) = .218276695, (126, 2) = .2199816311, (127, 1) = .282926043, (127, 2) = .2865981905, (128, 1) = .348003936, (128, 2) = .3547443254, (129, 1) = .412772519, (129, 2) = .423839571, (130, 1) = .472821287, (130, 2) = .4891724426, (131, 1) = .534998312, (131, 2) = .5582217657999999, (132, 1) = .599301876, (132, 2) = .6312199756, (133, 1) = .66339922, (133, 2) = .7056508801, (134, 1) = .729331215, (134, 2) = .7839807223999999, (135, 1) = .787404152, (135, 2) = .8544610386, (136, 1) = .852780531, (136, 2) = .9354482023, (137, 1) = .918425344, (137, 2) = 1.018467742, (138, 1) = .981686284, (138, 2) = 1.100011679, (139, 1) = 1.039133283, (139, 2) = 1.175294458, (140, 1) = 1.107443323, (140, 2) = 1.266226243, (141, 1) = 1.165310878, (141, 2) = 1.344350753, (142, 1) = 1.232624612, (142, 2) = 1.436344221, (143, 1) = 1.292208665, (143, 2) = 1.518639792, (144, 1) = 1.357581823, (144, 2) = 1.609703862, (145, 1) = 1.419832522, (145, 2) = 1.697008142, (146, 1) = 1.4847846, (146, 2) = 1.788534865, (147, 1) = 1.514607742, (147, 2) = 1.830657134, (148, 1) = 1.544430884, (148, 2) = 1.872814685, (149, 1) = 1.5524729555, (149, 2) = 1.884186459, (150, 1) = 1.560515027, (150, 2) = 1.895559069, (151, 1) = 1.5645360627500002, (151, 2) = 1.901245573, (152, 1) = 1.5685570985000001, (152, 2) = 1.906932149, (153, 1) = 1.570567616375, (153, 2) = 1.909775449, (154, 1) = 1.57257813425, (154, 2) = -1.907579039, (155, 1) = 1.574588652125, (155, 2) = -1.904735743, (156, 1) = 1.5765991700000002, (156, 2) = -1.901892458, (157, 1) = 1.5926833130000002, (157, 2) = -1.879147257, (158, 1) = 1.608767456, (158, 2) = -1.85640606, (159, 1) = 1.642181265, (159, 2) = -1.809188189, (160, 1) = 1.675595074, (160, 2) = -1.762026542, (161, 1) = 1.733768712, (161, 2) = -1.680129566, (162, 1) = 1.796597837, (162, 2) = -1.592115472, (163, 1) = 1.861506469, (163, 2) = -1.501837452, (164, 1) = 1.925006903, (164, 2) = -1.414324517, (165, 1) = 1.986446838, (165, 2) = -1.330559612, (166, 1) = 2.054665408, (166, 2) = -1.238762682, (167, 1) = 2.115962825, (167, 2) = -1.157497272, (168, 1) = 2.181410908, (168, 2) = -1.072127927, (169, 1) = 2.240716599, (169, 2) = -.9961106938, (170, 1) = 2.305553376, (170, 2) = -.9145459687, (171, 1) = 2.366559739, (171, 2) = -.8393305630000001, (172, 1) = 2.430328961, (172, 2) = -.7623367511000001, (173, 1) = 2.492675032, (173, 2) = -.6886870238, (174, 1) = 2.557945595, (174, 2) = -.6132960225999999, (175, 1) = 2.620808895, (175, 2) = -.5423057048, (176, 1) = 2.685095706, (176, 2) = -.4712839149, (177, 1) = 2.74885019, (177, 2) = -.4023256743, (178, 1) = 2.80743394, (178, 2) = -.3401449639, (179, 1) = 2.874577523, (179, 2) = -.2701110838, (180, 1) = 2.934631552, (180, 2) = -.2084167904, (181, 1) = 2.998661668, (181, 2) = -.1434141973, (182, 1) = 3.059946657, (182, 2) = -0.8173649517e-1, (183, 1) = 3.127995764, (183, 2) = -0.1359730852e-1, (184, 1) = 3.186921288, (184, 2) = 0.4534414594e-1, (185, 1) = 3.253802291, (185, 2) = .112444077, (186, 1) = 3.314757057, (186, 2) = .1740208463, (187, 1) = 3.381431996, (187, 2) = .2420934852, (188, 1) = 3.438961194, (188, 2) = .3016202121, (189, 1) = 3.50448023, (189, 2) = .3705035778, (190, 1) = 3.567768387, (190, 2) = .4383118491, (191, 1) = 3.631015202, (191, 2) = .507465268, (192, 1) = 3.694029343, (192, 2) = .5778554647, (193, 1) = 3.754566205, (193, 2) = .6469546315, (194, 1) = 3.820008145, (194, 2) = .7233325516, (195, 1) = 3.882379075, (195, 2) = .7977734041, (196, 1) = 3.948021535, (196, 2) = .8778507164, (197, 1) = 4.007443765, (197, 2) = .9518445897, (198, 1) = 4.073116455, (198, 2) = 1.035230517, (199, 1) = 4.136019455, (199, 2) = 1.116609341, (200, 1) = 4.198769335, (200, 2) = 1.199169168, (201, 1) = 4.264311835, (201, 2) = 1.286756761, (202, 1) = 4.324678875, (202, 2) = 1.368532837, (203, 1) = 4.386502975, (203, 2) = 1.453250975, (204, 1) = 4.454764125, (204, 2) = 1.547760685, (205, 1) = 4.516569015, (205, 2) = 1.634048319, (206, 1) = 4.579776085, (206, 2) = 1.722830181, (207, 1) = 4.644056045, (207, 2) = 1.813499112, (208, 1) = 4.67359894, (208, 2) = 1.855248371, (209, 1) = 4.703141835, (209, 2) = 1.897021556, (210, 1) = 4.707078306875, (210, 2) = 1.902588486, (211, 1) = 4.71101477875, (211, 2) = 1.90815548, (212, 1) = 4.7129830146875005, (212, 2) = -1.909258803, (213, 1) = 4.714951250625, (213, 2) = -1.906475299, (214, 1) = 4.7169194865624995, (214, 2) = -1.903691802, (215, 1) = 4.7188877225, (215, 2) = -1.900908318, (216, 1) = 4.72676066625, (216, 2) = -1.889774611, (217, 1) = 4.7346336099999995, (217, 2) = -1.878641535, (218, 1) = 4.750379497499999, (218, 2) = -1.856378651, (219, 1) = 4.766125385, (219, 2) = -1.834122423, (220, 1) = 4.797377435, (220, 2) = -1.78997935, (221, 1) = 4.828629485, (221, 2) = -1.745894783, (222, 1) = 4.895489455, (222, 2) = -1.651876125, (223, 1) = 4.954490485, (223, 2) = -1.569375738, (224, 1) = 5.022565415, (224, 2) = -1.474917674, (225, 1) = 5.083997795, (225, 2) = -1.390507621, (226, 1) = 5.144781925, (226, 2) = -1.307906483, (227, 1) = 5.210144395, (227, 2) = -1.220247321, (228, 1) = 5.275771255, (228, 2) = -1.133586924, (229, 1) = 5.335481995, (229, 2) = -1.056024633, (230, 1) = 5.398892145, (230, 2) = -.9750931677, (231, 1) = 5.4607742550000005, (231, 2) = -.8976131135, (232, 1) = 5.527855115, (232, 2) = -.8153629099999999, (233, 1) = 5.585898695, (233, 2) = -.7456856406000001, (234, 1) = 5.652563875, (234, 2) = -.6673782467, (235, 1) = 5.715232645, (235, 2) = -.5954258197, (236, 1) = 5.777296105, (236, 2) = -.5257119876, (237, 1) = 5.839408935, (237, 2) = -.4574114365, (238, 1) = 5.902760085000001, (238, 2) = -.389162025, (239, 1) = 5.9699112450000005, (239, 2) = -.318228927, (240, 1) = 6.031482285, (240, 2) = -.25430332, (241, 1) = 6.0922608050000004, (241, 2) = -.192069856, (242, 1) = 6.157232055, (242, 2) = -.1262844401, (243, 1) = 6.222061845, (243, 2) = -0.6116147283e-1, (244, 1) = 6.283185295, (244, 2) = -0.1217958648e-7}, datatype = float[8]), COLOUR(RGB, .47058824, 0., 0.54901961e-1, _ATTRIBUTE("source" = "mathdefault"))), AXESLABELS(x, ""), AXESTICKS(_PITICKS, DEFAULT, _ATTRIBUTE("source" = "mathdefault")), VIEW(-6.283185295 .. 6.283185295, DEFAULT, _ATTRIBUTE("source" = "mathdefault")), _ATTRIBUTE("input" = [TABLE([1 = plot, 2 = [csgn(cos(x))*EllipticE(sin(x), I)], 3 = (x = -2*Pi .. 2*Pi)]), "originalview" = [-6.28318529500000000 .. 6.28318529500000000, -1.91005173100000003 .. 1.90977544900000007], "originalaxesticks" = AXESTICKS(_PITICKS, DEFAULT, _ATTRIBUTE("source" = "mathdefault"))]))

 (9)

Indeed, this antiderivative is actually discontinuous when x is an odd multiple of Pi/2. So it makes sense that its derivative is not defined there and one should actually not expect 0 when subtracting f from the derivative of this F. When expressed in terms of csgn, this problem is made clear: the derivative of csgn is expressed in terms of csgn(1, z) which is 0 everywhere except when z is imaginary, in which case it is undefined. When the csgn function is instead converted to sqrt form i.e. csgn(z) = sqrt(z^2)/z:

>

F3 := eval(F2, csgn = (z -> sqrt(z^2)/z));

(cos(x)^2)^(1/2)*EllipticE(sin(x), I)/cos(x)

 (10)

then diff actually ignored these points of discontinuity where the derivative is not defined, and returns 0:

>

simplify(diff(F3,x)-f);

0

 (11)

So in conclusion, both the original antiderivative and the simplified version are correct according to the expectations of the int command, but when verifying the result, writing the result in terms of csgn actually makes it clear that the result is only piecewise an antiderivative and therefore the derivative is not defined at those points of discontinuity.
Download 24122.mw

Re: Clarification on SupportTools...

aroche 880
December 20 2025
3 0

Hi @nm !

It's true there haven't been new updates since Jun 23rd, but there's no official change in status - just a delay unfortunately in getting new updates out recently. I'm the only one working on them, and it's been a very busy time for me with other projects taking higher priority. I understand your frustration and expect more consistency going forward. In the meantime, almost all of the changes that would have appeared in the Customer Support Updates are anyway in the 1st beta release which was just released 2 days ago, and I'll try to catch up with the others as soon as possible.

Cheers,

   Austin

Fixed in development version. Fix should...

aroche 880
December 19 2025
4 2

Hi @nm,

Thank for this helpful report! This example started going wrong after a previous fix reported here was implemented. There was nothing wrong with that fix, but it meant that for this example, the odetest algorithm ended up trying a bit harder at testing the implicit form of the solution instead of failing quickly and proceeding with the testing the explicit form (which happens to work well). It ended up getting stuck in a quite complicated call to 'solve'. Ideally 'solve' should not be getting stuck and crashing on that input, but in any case, I was able to add some preprocessors in odetest to make the 'solve' call easier to handle, and it now completes in about 4 seconds:

>

sol:=y(x) = ((2*(x+11)*(1+x)^4*exp(12*_C1)-29*(1+x)^2*(x+103/29)*exp(6*_C1)+27*x+81)
*RootOf(2+(exp(6*_C1)*x^2+2*exp(6*_C1)*x+exp(6*_C1)-1)*_Z^6+3*_Z^2)^4+(-2*(x-4)
*(1+x)^4*exp(12*_C1)-34*(1+x)^2*(x+67/17)*exp(6*_C1)+54*x+162)*RootOf(2+(exp(6*
_C1)*x^2+2*exp(6*_C1)*x+exp(6*_C1)-1)*_Z^6+3*_Z^2)^2-(x-1)*(1+x)^4*exp(12*_C1)-\
14*(x+29/7)*(1+x)^2*exp(6*_C1)+27*x+81)/((10*(1+x)^4*exp(12*_C1)+27-37*(1+x)^2*
exp(6*_C1))*RootOf(2+(exp(6*_C1)*x^2+2*exp(6*_C1)*x+exp(6*_C1)-1)*_Z^6+3*_Z^2)^
4+(5*(1+x)^4*exp(12*_C1)+54-50*(1+x)^2*exp(6*_C1))*RootOf(2+(exp(6*_C1)*x^2+2*
exp(6*_C1)*x+exp(6*_C1)-1)*_Z^6+3*_Z^2)^2+(1+x)^4*exp(12*_C1)+27-22*(1+x)^2*exp
(6*_C1)):
ode:=(4+2*x-y(x))*diff(y(x),x)+5+x-2*y(x) = 0:
>

odetest(sol,ode);

0



Download 242037.mw

This fix should appear in the next beta release.

Cheers,
     Austin

@C_R, First, you're mistaken in imp...

aroche 880
November 08 2025
2 1

@C_R,

First, you're mistaken in implying that signum(-alpha^2*x^2 + R^2 + x^2) should "disappear" under the assumptions R>0,alpha>0,x*alpha<R. This signum could be either 1 or -1:

>

conds:= R>0,alpha>0,x*alpha<R:
>

S := signum(-alpha^2*x^2 + R^2 + x^2):
>

S assuming conds;

signum(-alpha^2*x^2+R^2+x^2)

>

eval([S, conds],[x = -1, alpha=10, R=1/10]);
andmap(evalb, %[2..4]);

[-1, 0 < 1/10, 0 < 10, -10 < 1/10]

true

>

eval([S, conds],[x = 1, alpha=1/10, R=10]);
andmap(evalb, %[2..4]);

[1, 0 < 10, 0 < 1/10, 1/10 < 10]

true

Download 241921_signum.mw

Second, there was a weakness that simplify(.., radical) needed to be called twice to get the full simplification:

>

conds := R>0,alpha>0,x*alpha<R,x>=0:
expr := ((-alpha^2*x^2+R^2+x^2)/(-alpha^2*x^2+R^2))^(1/2)/(R^4/(-alpha^2*x^2+R^2+x^2)^2/(-alpha^2*x^2+R^2))^(1/2):
>

simplify(expr, radical) assuming conds;

((-alpha^2*x^2+R^2+x^2)*(-alpha^2*x^2+R^2))^(1/2)*(-alpha^2*x^2+R^2+x^2)/((-alpha^2*x^2+R^2)^(1/2)*R^2)

>

simplify(%, radical) assuming conds;

(-alpha^2*x^2+R^2+x^2)^(3/2)/R^2
Download 241921_simplify.mw

That weakness has been fixed in the development version and the fix should be available in the next full release and potentially earlier in a Maple Customer Support Update. After the fix, the fully simplified result appears after the first call to simplify. Thank you for reporting this!

Third, in the first reply by @acer, I see no issues to fix. The result labelled #1 is better than that labelled #2 because the corresponding condition is stronger, as noted by @acer in his 2nd reply.

Fourth: @acer in his 2nd reply comments this:

> But the system didn't deduce from both,
>   ((1-alpha^2)*x^2)::real
>    R^2+(1-alpha^2)*x^2>0
> that R^2 must also be real, and then allow abs(R)^2 to become R^2.

> So that seems like a weakness to me.

It does not follow from R^2 being real that abs(R)^2 = R^2. Example: R = I (the imaginary unit). Then R^2 = -1 is real but it is not equal to abs(R)^2 which is 1. So I see no more issues to fix here.

Austin Roche
Maplesoft

Fixed, v.27 of Customer Support Updates...

aroche 880
June 05 2025
4 8

Hi @nm,

As @ecterrab mentioned, the underlying problem here was a problem in evalc. The problem has been fixed in v.27:

>

SupportTools:-Version();

`The Customer Support Updates version in the MapleCloud is 27 and is the same as the version installed in this computer, created June 5, 2025, 10:05 hours Eastern Time.`

>

ode:=diff(y(x),x) = (ln(y(x))^2+2*_C1)^(1/2)*y(x):
sol:=y(x) = exp((-2*_C1)^(1/2)):
Physics:-Setup('assumingusesAssume'=true):
odetest(sol,ode) assuming positive;

-(2*Im(_C1^(1/2))^2-2*2^(1/2)*Im(_C1^(1/2))*ln(exp(I*2^(1/2)*Re(_C1^(1/2))))+ln(exp(I*2^(1/2)*Re(_C1^(1/2))))^2+2*_C1)^(1/2)*exp((-2*_C1)^(1/2))

Download 240461.mw

This fix is distributed for everybody using Maple 2025 within the Maple Customer Support Updates v.27 or newer. Please refer to the announcement of the new Maple Customer Support Updates for more detailed installation and usage instructions.

Austin Roche
Maplesoft

Fixed, v. 26 of Customer Support Updates...

aroche 880
June 04 2025
3 2

Hi @nm, @ecterrab,

The solution for this problem mentioned described by Edgardo here and mentioned as fixed in the development version of the library here is now included in v. 26 of the Customer Support Updates:

>

SupportTools:-Version();

`The Customer Support Updates version in the MapleCloud is 26 and is the same as the version installed in this computer, created June 3, 2025, 23:49 hours Eastern Time.`

>

restart;

#this shows no assumptions on y(x);
ode:=y(x)*sqrt(1 + diff(y(x), x)^2) - a*y(x)*diff(y(x), x) - a*x = 0:
sol:=-_C4^2 + (-y(x)*sqrt(_C4^2/y(x)^2) + a*x)^2/a^2 + y(x)^2 = 0;
hasassumptions(y(x));
getassumptions(y(x));

-_C4^2+(-y(x)*(_C4^2/y(x)^2)^(1/2)+a*x)^2/a^2+y(x)^2 = 0

false

{}

>

#now use a command that uses assuming
Physics:-Setup('assumingusesAssume'=true):
try
    timelimit(10,(odetest(sol,ode,y(x)) assuming integer)):
catch:
   print("caught exception, will now call restore state...");
  `assuming/restore_previous_state`;  #is this correct syntax?
end try;

"caught exception, will now call restore state..."

previous_state_is_restored

Yes, that is the correct syntax!

>

hasassumptions(y(x));
getassumptions(y(x));

false

{}
Download 240459_2.mw

This fix is distributed for everybody using Maple 2025 within the Maple Customer Support Updates v.26 or newer. Please refer to the announcement of the new Maple Customer Support Updates for more detailed installation and usage instructions.


Austin Roche
Maplesoft

This warning is not new...

aroche 880
June 03 2025
1 0

Hi @nm,

SupportTools:-Version has always had this warning to close Maple and reopen and installing the latest update.
This code was adapted from the Physics:-Version code which already had the same warning to close and reopen.

So I think you're just misremembering. I suspect you noticed it now because this is the first time it didn't work for you without closing and reopening (i.e. because as @C_R mentioned maybe you had another server or GUI session running)?

To verify this, I reverted to version 12 and then tried SupportTools:-Version(latest) and the same warning to close and reopen is there:

>

SupportTools:-Version(latest);

Warning, You have just upgraded from version 12 to version 23 of the Customer Support Updates. In order to have this version active, please close Maple entirely, then open Maple and enter SupportTools:-Version() to confirm the active version.

Download 240452.mw

Versions earlier than 12 or so had some other problems with these warnings not being fully cooked yet, but they all included this note to close and restart Maple for the update to take effect.

Cheers,

    Austin

Fixed in v. 23 of the Customer Support U...

aroche 880
June 02 2025
4 3

Hi @nm,

Good catch! Some of the changes in the previous update exposed an existing recursion error during the simplification of properties (see ?property). This has now been fixed in the latest update:

>

SupportTools:-Version();

`The Customer Support Updates version in the MapleCloud is 23 and is the same as the version installed in this computer, created June 2, 2025, 12:08 hours Eastern Time.`

>

IC:=y(2) = 2:
ode:=diff(y(x),x) = (x-y(x))^(1/2):
sol:=y(x) = -(LambertW(-exp(-1/2*x))+1)^2+x:
>

odetest(sol,ode) assuming positive;

-csgn(LambertW(-exp(-(1/2)*x))+1)*LambertW(-exp(-(1/2)*x))+LambertW(-exp(-(1/2)*x))-csgn(LambertW(-exp(-(1/2)*x))+1)+1

>

odetest(sol,[ode,IC]) assuming positive;

[-csgn(LambertW(-exp(-(1/2)*x))+1)*LambertW(-exp(-(1/2)*x))+LambertW(-exp(-(1/2)*x))-csgn(LambertW(-exp(-(1/2)*x))+1)+1, 0]

Download 240455.mw

This fix is distributed for everybody using Maple 2025 within the Maple Customer Support Updates v.23 or newer. Please refer to the announcement of the new Maple Customer Support Updates for more detailed installation and usage instructions.

Austin Roche
Maplesoft

1 2 3 4 Page 1 of 4
