Maple 2018 Questions and Posts

These are Posts and Questions associated with the product, Maple 2018

Des suggestions de solutions? Merci.

A) a) Écrire une procédure qui produit une itération du calcul babylonien de la racine carrée d'un nombre positif k à partir     d'une première approximation x0 .

    Entrée: k , x0 .

    Sortie:  x1 = (x0+ k/x0)/2 .

b) En utilisant la procédure trouvée en a), en écrire une autre, qui prend en entrée un entier positif n en plus des entiers k   et x0 vus en a) et qui retourne en sortie n itérations du calcul babylonien de la racine carée de k.

 B)

Écrire une procédure récursive Maple qui prend en entrée deux nombres n et k et qui utilise l'identité (n k) = (n -1k)+(n-1 k-1) pour retourner en sortie le coefficient binomial (n k) , cette procédure ne doit pas utiliser la commande Maple binomial.

TRADUCTION:

Suggestions for solutions? Thank you.

A) a) Write a procedure that produces an iteration of the Babylonian calculus of the square root of a positive number k from a     first approximation x0.

    Input: k, x0.

   Output: x1 = (x0 + k / x0) / 2.

b) Using the procedure found in a), write another one, which takes as input a positive integer n in addition to the integers k and   x0 seen in a) and which returns in exit n iterations of the Babylonian calculation of the square root of k.

B) Write a Maple recursive procedure that takes as input two numbers n and k and uses the identity (n k) = (n-1 k)+ (n-1 k-1) to   return the binomial coefficient (n k), this procedure should not use the binomial Maple command.

Hi , how we can read the fractional differential equations in maple with out solving . I means just read and determine which is the order of fractional differential equations.

thanks

Hello everyone!

In previous versions of Maple (e.g. Maple 2016) it used to be possible to use scaletorange and colorscheme options together as in:

densityplot(sin(x+y), x = -1 .. 1, y = -1 .. 1, colorscheme = [black, red, yellow, white], scaletorange = -.5 .. .5);

But Maple 2018 returns an error:

Error, (in plots/densityplot) the scaletorange option cannot be used with the colorscheme option

Why is that and can one work around this error in any simple way?


Hello there,

I have created a MAPLE document in a slideshow format.

Is there a way to print a copy of my presentation with header and footer included and in a format that fits on letter format paper or pdf.

Thank you for your help.

LL

How I can perform integration by parts, with respect to the x[0..1],y[0..1],t

PART.mw


restart

U := (1/2)*(E*(diff(u(x, y), x)-z*(diff(w(x, y), x, x))+(1/2)*(diff(w(x, y), x))^2)/(-upsilon^2+1)+E*upsilon*(diff(v(x, y), y)-z*(diff(w(x, y), y, y))+(1/2)*(diff(w(x, y), y))^2)/(-upsilon^2+1))*(diff(u(x, y), x)-z*(diff(w(x, y), x, x))+(1/2)*(diff(w(x, y), x))^2)+(1/2)*(E*upsilon*(diff(u(x, y), x)-z*(diff(w(x, y), x, x))+(1/2)*(diff(w(x, y), x))^2)/(-upsilon^2+1)+E*(diff(v(x, y), y)-z*(diff(w(x, y), y, y))+(1/2)*(diff(w(x, y), y))^2)/(-upsilon^2+1))*(diff(v(x, y), y)-z*(diff(w(x, y), y, y))+(1/2)*(diff(w(x, y), y))^2)+E*(1-upsilon)*((1/2)*(diff(v(x, y), x))-z*(diff(w(x, y), x, y))+(1/2)*(diff(u(x, y), y))+(1/2)*(diff(w(x, y), x))*(diff(w(x, y), y)))^2/(-upsilon^2+1)+2*E*l^2*(diff(w(x, y), x, y))^2/(2+2*upsilon)+2*E*l^2*(-(1/2)*(diff(w(x, y), x, x))+(1/2)*(diff(w(x, y), y, y)))^2/(2+2*upsilon)+2*E*l^2*((1/4)*(diff(v(x, y), x, x))-(1/4)*(diff(u(x, y), x, y)))^2/(2+2*upsilon)+2*E*l^2*((1/4)*(diff(v(x, y), x, y))-(1/4)*(diff(u(x, y), y, y)))^2/(2+2*upsilon)

with(IntegrationTools)

``

``




Download PART.mw

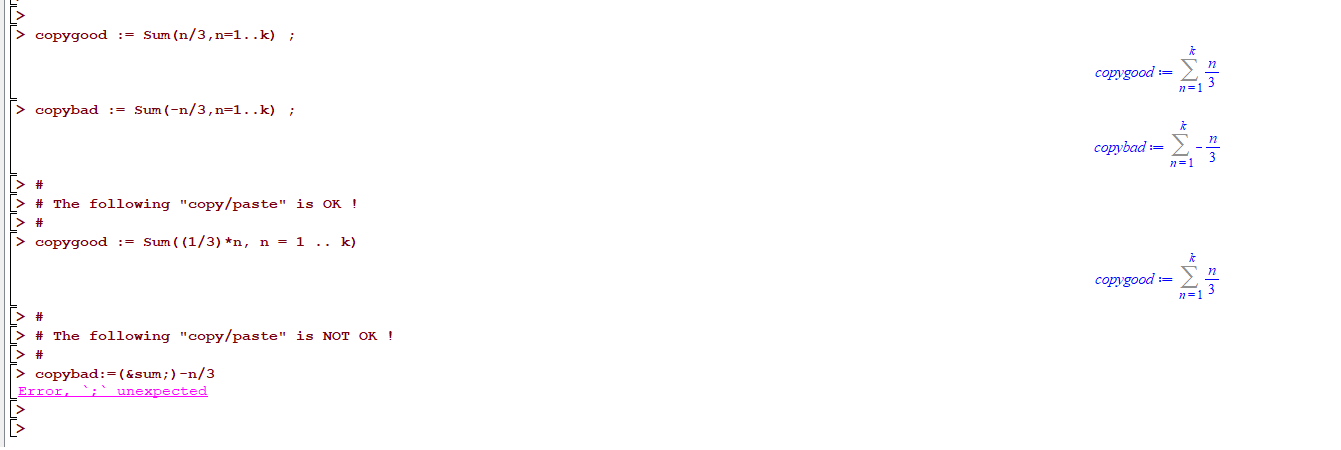

 1)  Copy/paste problem .

 Looks like Maple is not able to copy/paste the output
 from a summation command . Look at my example .
 I have to use the  " lprint " command .

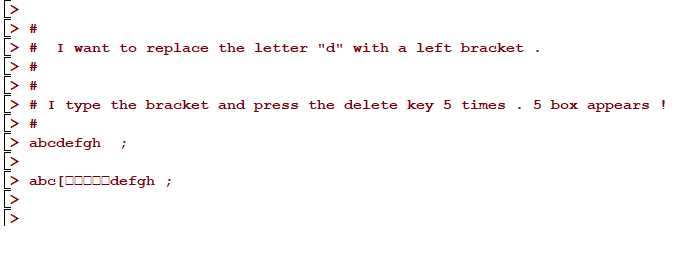

2)   Mysterious small box character .

 Suppose I want to edit a command . I want to replace a character with a left bracket
 (or right bracket or left accolade but strangely not the right accolade).
 I put the cursor on the character and type the left bracket (or right...) .
 The left bracket ( or right ...)  is inserted . Now when I try to delete the character,
 a small box appear . The  character I am trying to delete is shifting to the right .
  Like  I said , just a little annoying .

3)  Open file problem .

 The first file I open in Maple with the  ctrl-o command , the "open file window" appears in
  the center of the screen . All the others files I am opening , the "open file window"  show up
  in the bottom left corner , top center or top right corner ... randomly .
  Very annoying on a 27" screen . For this last one ,I am not shure  if it is a Maple 2018 problem
   or a Windows 10 64 bits problem . I have few programs in my computer .
  When I use Microsoft Paint or Wordpad ,I don't see this problem .

  I don't know if somebody else can confirm those annoying things . If I am not the only one
  then I am hoping the next updates or versions will fix that .

    Thanks !


Hi



I've just upgraded from v2017.3 to 2018. It worked OK until I installed latest service pack 2018.2.1 (server license provided by my University). Ever since I cannot use Maple. Anything I type I get Typesetting:-mparsed(...) error and the text/command I typed.



I’ve contacted our software tech support and they told me to change the typesetting level from advanced to standard and it did fix the problem.



But why does it happen in the first place? I’m running Windows 8.1 64bit. Out tech support told me to has something to do with 3D display issue on my machine and told me to bring my laptop on Monday to see if they can resolve the issue.



Anyone else have this problem? Why didn’t it happen with older Maple versions? What am I missing by using standard typesetting instead of the default advanced?

Thanks













is possible to solvethis equation via maple?

hank you

EQUATION2.mw


restartNULL

alpha := 1.2*10^(-4); Betaa := 4.0*log(2); J := 13.4; delta := 15.3*10^(-9); tp := 10^(-13); tq := 8.5*10^(-12); tu := 90.0*10^(-12); kapa := 315; r0 := 2.0*10^(-7); Lx := 5.0*10^(-7); Ly := 5.0*10^(-7); Lz := 1.0*10^(-7); a := 0.7e-1*(Betaa/Pi)^.5*J/(15.3*10^(-22)); bb := exp(-((10^(-7)*x-(1/2)*Lx)^2+(10^(-7)*y-(1/2)*Ly)^2)/(2*r0^2)); print(aa = a); Q := a*exp(-z*10^(-7)/delta)*exp(-1.88*abs(t-2*tp)/tp)*bb

0.1200000000e-3



4.0*ln(2)



13.4



0.1530000000e-7



1/10000000000000



0.8500000000e-11



0.9000000000e-10



315



0.2000000000e-6



0.5000000000e-6



0.5000000000e-6



0.1000000000e-6



0.6917775548e21*ln(2)^.5



exp(-0.1250000000e14*((1/10000000)*x-0.2500000000e-6)^2-0.1250000000e14*((1/10000000)*y-0.2500000000e-6)^2)



aa = 0.6917775548e21*ln(2)^.5



0.6917775548e21*ln(2)^.5*exp(-6.535947712*z)*exp(-0.1880000000e14*abs(t-1/5000000000000))*exp(-0.1250000000e14*((1/10000000)*x-0.2500000000e-6)^2-0.1250000000e14*((1/10000000)*y-0.2500000000e-6)^2)

(1)

(diff(U(x, y, z, t), t)+tq*(diff(U(x, y, z, t), t, t)))/alpha = diff(U(x, y, z, t), x, x)+diff(U(x, y, z, t), y, y)+tu*(diff(U(x, y, z, t), x, x, t)+diff(U(x, y, z, t), y, y, t))+tu*(diff(U(x, y, z, t), z, z, t))+(Q+tq*(diff(Q, t)))/kapa

8333.333333*(diff(U(x, y, z, t), t))+0.7083333333e-7*(diff(diff(U(x, y, z, t), t), t)) = diff(diff(U(x, y, z, t), x), x)+diff(diff(U(x, y, z, t), y), y)+0.9000000000e-10*(diff(diff(diff(U(x, y, z, t), t), x), x))+0.9000000000e-10*(diff(diff(diff(U(x, y, z, t), t), y), y))+0.9000000000e-10*(diff(diff(diff(U(x, y, z, t), t), z), z))+0.2196119222e19*ln(2)^.5*exp(-6.535947712*z)*exp(-0.1880000000e14*abs(t-1/5000000000000))*exp(-0.1250000000e14*((1/10000000)*x-0.2500000000e-6)^2-0.1250000000e14*((1/10000000)*y-0.2500000000e-6)^2)-0.3509398517e21*ln(2)^.5*exp(-6.535947712*z)*abs(1, t-1/5000000000000)*exp(-0.1880000000e14*abs(t-1/5000000000000))*exp(-0.1250000000e14*((1/10000000)*x-0.2500000000e-6)^2-0.1250000000e14*((1/10000000)*y-0.2500000000e-6)^2)

(2)

``



Boundary condition:

U(0, y, z, t) = 300; U(Lx, y, z, t) = 300; U(x, 0, z, t) = 300; U(x, Ly, z, t) = 300; U(x, y, 0, t) = 300; U(x, y, Lz, t) = 300

#####################################

INITIAL CONDITIONS:



U(x, y, z, 0) = 300; (D[1](U))(x, y, z, 0) = 0

(D[1](U))(x, y, z, 0) = 0

(3)

NULL



``




Download EQUATION2.mw





Is possible to solve this differential equation by maple?

thaks...

Hi,

I'm using the eBookTools package to convert a .mw file as a chapter into a PDF file. However, a problem arises when I convert a document with a few repeated plotting commands (such as plot(x^2)). The issue is that in the final PDF the images of the various plots overlap, and that the individual plots can't be clearly seen. Is there a resolution to this?

Thanks,
Bart

Is package SumTools supposed to be a superset of the sum command in Maple? Or is it supposed to be a complementary to it? When should one use SumTools vs. sum?

The help on SumTools says

The SumTools package contains commands that help find closed forms of definite and indefinite sums. The package consists of three commands and three subpackages.


But does not make it clear when to use it vs. sum or what is its relation to sum command.

I am asking because on one example, sum is able to give an answer, while SumTools can't. I have expected the other way, where if sum failed, then one will try SumTools.

restart;
sum(1/n*sin(n*x),n=1..infinity) assuming 0<x,x<Pi

SumTools:-IndefiniteSummation(1/n*sin(n*x),n=1..infinity) assuming 0<x, x<Pi





Hello,

I'm a long-time Maple user and have used the CodeGeneration package in the past, but with a recent download of Maple 2018, I'm now getting an error I have never gotten before. Even when I do something simple (see below, for example), I get an error that reads "Error, (in clear) argument `` is incorrect or out of order". And I get this error no matter which language I choose. Any help would be much appreciated.

> with(CodeGeneration)

> R(exp(x))

Thanks!





how I can find solutions for non linear equations.

I want to find non zero solution.

thank you

ZAH.mw



Maple Worksheet - Error

Failed to load the worksheet /maplenet/convert/ZAH.mw .


Download ZAH.mw

how i can solve the eqution by ritz methode codes?

Here is a simple procedure that works fine if entered using 1D Maple input
> Q:=proc(x)
sin(x)
end proc;
but if you use 2D math input
> q:=proc(x)
sin(x);

  end proc;

Error, unterminated procedure
    Typesetting:-mambiguous(qAssignTypesetting:-mambiguous(

      procApplyFunction(x) sinApplyFunction(x),

      Typesetting:-merror("unterminated procedure")))
Error, unable to parse
    Typesetting:-mambiguous(  Typesetting:-mambiguous(end,

      Typesetting:-merror("unable to parse")) procsemi)

Ouch! But to confuse things further the following procedures may be entered using 2D math and work fine:
>H := proc (x) x^2*sin(x) end proc;
>K := proc (x) sin(x^2) end proc;
Doesn't make any sense to me. Perhaps 2D math is not ready for prime time?
